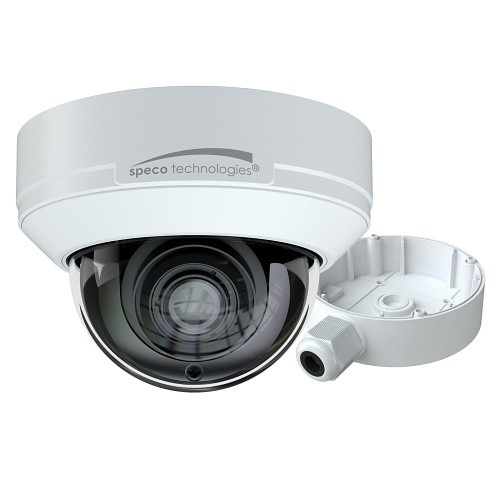

Speco Technologies VLD9M 2MP HD-TVI IR Motorized Dome Camera

Speco Technologies VLD9M 2MP HD-TVI IR Motorized Dome Camera

Overview

The Speco VLD9M is a compact 2MP HD-TVI motorized dome camera purpose-built for outdoor surveillance in harsh environments. This camera delivers 1920x1080 resolution at 30 fps with integrated infrared illumination for true day/night operation. The motorized dome design with integrated junction box simplifies field installation while the IP67 and IK10 ratings provide superior protection against moisture intrusion and physical vandalism. The VLD9M operates reliably across an extended temperature range of -22°F to 122°F, making it suitable for both northern and southern climate deployments.

When this is the correct choice

The VLD9M excels in outdoor perimeter and facility surveillance where environmental durability is non-negotiable. Select this camera for applications requiring motorized positioning in wet environments, rooftop installations, or exposed mounting locations. The IK10 vandal rating and IP67 sealing make it ideal for correctional facilities, industrial yards, parking structures, and municipal infrastructure. The integrated junction box reduces field wiring labor and potential water ingress points during installation. The 2MP resolution and motorized dome form factor suit wide-area monitoring where pan/tilt positioning adds operational flexibility without requiring a full PTZ system.

When to choose a different model

If your deployment requires higher resolution (4MP, 5MP, or above) for facial recognition or license plate capture, evaluate higher-resolution alternatives. If PoE power injection is mandatory and your facility cannot support DC 12V distribution, consider PoE-enabled dome cameras instead. If your facility operates in temperatures exceeding 122°F or dropping below -22°F, verify thermal tolerances with extended-range models. For indoor-only applications without vandalism risk, a standard non-vandal dome camera may reduce cost without sacrificing performance.

Optics and field of view

Detailed optical specifications including lens focal length, horizontal field of view, and zoom capability are not provided in available documentation. Contact the manufacturer for precise optics data to confirm suitability for your specific surveillance perimeter and coverage requirements.

Imaging performance and low light

The VLD9M incorporates a 1/2.8" CMOS sensor and true Wide Dynamic Range (WDR) processing to handle scenes with extreme contrast between bright and dark areas. This is critical for outdoor installations where direct sunlight, reflections, and shadows occur simultaneously. The integrated infrared illumination enables operation in complete darkness without requiring external lighting. The 30 fps frame rate captures smooth motion for vehicle identification and activity logging. IR range and minimum illumination specifications are not detailed in current documentation; request these parameters from your distributor to confirm suitability for your low-light deployment zones.

Analytics and edge capabilities

Advanced video analytics capabilities for the VLD9M are not documented in available technical information. Confirm directly with Speco or your distributor whether this model supports on-camera motion detection, object tracking, line crossing, or other edge-based analytics functions required by your VMS platform or security operations workflow.

Video encoding and streaming

The VLD9M transmits video via HD-TVI protocol, a coaxial-based standard that leverages existing analog infrastructure while delivering digital HD quality over standard RG59 or RG6 cabling. This eliminates the need to run new Ethernet to each camera location in retrofit applications. Specific compression formats (H.265, H.264, MJPEG) and streaming profiles are not documented. Consult technical data or your integrator for detailed codec and bitrate information required for bandwidth planning and storage calculation.

Network and security

The VLD9M operates as an HD-TVI coaxial device and does not function as a networked IP camera. This architecture eliminates exposure to network-based attacks, eliminating the need for ONVIF compliance, secure firmware signing, or network authentication protocols. However, the coaxial infrastructure itself requires physical security and proper grounding to prevent signal tampering and ensure reliable transmission over long cable runs.

Environmental and durability ratings

IP67 rating guarantees complete dust protection and immersion in water up to 1 meter for 30 minutes, suitable for wet environments, washdown zones, and rain-exposed rooftop installations. IK10 vandalism rating withstands impacts of up to 20 joules, equivalent to strikes from a 5 kg steel ball dropped from 2 meters—the highest mechanical protection class available. These combined ratings ensure operational integrity in high-risk and harsh outdoor settings.

Power and installation notes

The VLD9M requires DC 12V power input and is supplied with an integrated junction box that consolidates power, video, and control connections at the dome base. This design reduces field wiring, minimizes potential water ingress points, and accelerates mounting. The camera weighs 1.81 lbs, allowing installation on standard dome brackets without additional reinforcement. Extended cabling runs over 300 feet may require larger gauge power wire to compensate for voltage drop. Plan power distribution carefully in distributed outdoor installations to ensure stable 12V delivery to all camera locations.

What is included

Contact us for package details.

Marty Allison

I've specified the Speco VLD9M in several municipal and industrial projects where environmental robustness and simplified coaxial installation were strategic priorities. The VLD9M delivers genuine HD-TVI video quality without the complexity of IP networking, which resonates well with facilities already operating analog infrastructure or seeking to minimize cyber surface area. The motorized dome form factor and integrated junction box streamline field deployment considerably compared to bolt-together designs.

Technical Highlights:

• IP67 + IK10 Protection: Survives immersion, washdown, and direct physical impact in high-vandalism environments where standard domes would fail within months.
• True WDR Processing: Handles backlit and high-contrast scenes without washing out details in shadows or blown highlights—critical for parking structures and building entrances.
• Integrated IR Illumination: Captures identifiable night video without external lighting infrastructure, reducing project cost and maintenance burden.
• Coaxial Architecture: Leverages existing analog cabling, eliminating Ethernet runs to rooftops and reducing installation labor on retrofit projects.

Deployment Considerations:

• Specify 12V power distribution carefully in large installations; use 16 AWG or larger for runs exceeding 200 feet to prevent voltage sag.
• Pair with HD-TVI DVRs rated for motorized dome control if pan/tilt positioning is operational requirement; confirm control protocol compatibility before purchase.
• Request IR range and minimum illumination specs from your distributor to validate night-vision coverage in your specific deployment zones.
• Plan for regular dome cleaning in dusty or salt-air environments; IP67 rating protects internals, but external optics accumulate film that degrades image quality.

The VLD9M is a pragmatic choice for integrators and facility managers prioritizing installation simplicity, environmental durability, and operational independence from networked infrastructure. It performs reliably in genuinely harsh outdoor conditions where lower-rated cameras deteriorate quickly.
