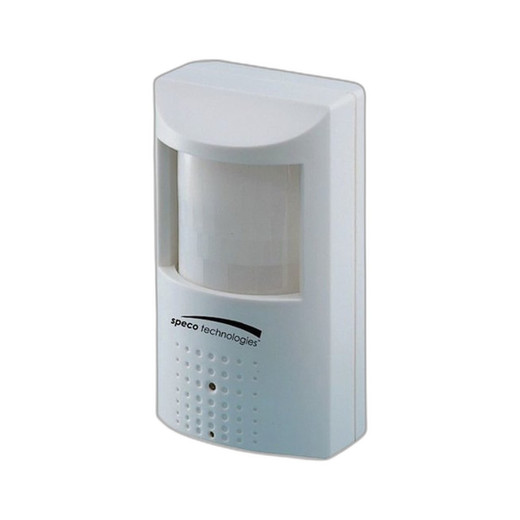

Speco Technologies VL572TPIR 2MP HD-TVI Only Camera in Operating

Speco Technologies VL572TPIR 2MP HD-TVI PIR Motion Sensor Camera

Overview

The Speco Technologies VL572TPIR is a 2MP HD-TVI fixed camera purpose-built for covert surveillance and motion-triggered applications. This model combines a pinhole lens optical assembly with an operating PIR (passive infrared) motion sensor housed in a single compact unit. The camera operates using HD-TVI video transport over coax, delivering 2MP resolution with day and night imaging capability. The VL572TPIR is designed for integrators who require motion-detection-enabled surveillance in confined or concealed spaces where traditional dome or bullet form factors are impractical.

When this is the correct choice

Select the VL572TPIR when your deployment requires: covert or hidden-camera installations where a pinhole lens minimizes visibility; applications where integrated PIR motion detection must trigger recording or alerts without external sensors; HD-TVI infrastructure already in place (coax-based backbone); fixed field-of-view monitoring in retail loss prevention, office security, or educational facilities; and when budget constraints favor analog HD transport over IP-based alternatives. The integrated motion sensor eliminates the need for separate PIR hardware and wiring, reducing installation complexity.

When to choose a different model

Do not select the VL572TPIR if your project mandates: panoramic or wide-angle surveillance (the 3.7mm pinhole lens provides a narrow field of view); IP-based camera infrastructure or cloud integration requirements; pan-tilt-zoom (PTZ) capability; high-resolution imaging above 2MP; outdoor weatherproof operation; or scenarios where motion detection must be tuned with adjustable sensitivity thresholds. For outdoor deployments or applications requiring vandal-resistant housings, evaluate alternative Speco lines or third-party offerings with IP67/IK ratings.

Optics and field of view

The VL572TPIR features a 3.7mm pinhole lens, a fixed focal length design optimized for narrow, focused surveillance areas. Pinhole optics are valued in covert installations because they minimize external lens visibility and provide a discreet form factor. The 3.7mm focal length delivers moderate magnification suitable for close- to mid-range monitoring in confined spaces such as cash registers, storage areas, or hallway intersections. Integrators should conduct site surveys to confirm the 3.7mm field of view satisfies coverage requirements before deployment.

Imaging performance and low light

The camera delivers 2MP (1920×1080 or equivalent) resolution via HD-TVI encoding. Day and night imaging is supported through an integrated IR cut filter mechanism, permitting the sensor to switch between color operation in daylight and monochrome/near-infrared sensitivity at night. The VL572TPIR does not include external IR illumination; low-light performance depends on ambient infrared sources or available reflected light. For zero-lux or very dark environments, pair this camera with external IR illuminators or supplemental lighting infrastructure.

Analytics and edge capabilities

The integrated PIR motion sensor serves as the primary analytical function, detecting heat signatures and triggering motion events. The VL572TPIR does not support edge-based video analytics such as object detection, line crossing, or people counting. Motion detection is hardware-based (PIR thermal sensing) rather than video-based, ensuring low false-alarm rates in outdoor-facing windows or areas with IR-reflective surfaces. DVR or NVR-level motion recording and alerting policies are managed at the recorder, not the camera.

Video encoding and streaming

The VL572TPIR operates exclusively on HD-TVI (High-Definition Transport Video Interface), a coax-based analog video standard. HD-TVI encodes 2MP resolution directly onto existing BNC coaxial cabling, eliminating the need for separate power and data cables in many retrofit scenarios. The camera does not support IP streaming, RTSP, or network connectivity. Video playback, recording, and management require an HD-TVI compatible DVR or hybrid recorder. HD-TVI offers lower bandwidth consumption than IP but sacrifices remote access and cloud integration.

Network and security

As an analog HD-TVI device, the VL572TPIR does not feature network connectivity, IP addressing, or cybersecurity protocols. There is no firmware update mechanism, no user authentication, and no exposure to network-based vulnerabilities. Security relies entirely on physical access control to the recorder and coax cabling. Integrators should secure recorder access through password policies and physically isolate analog surveillance cabling from general IT networks.

Environmental and durability ratings

Source evidence does not specify IP rating, IK rating, or operating temperature range for the VL572TPIR. Integrators should contact Speco Technologies or consult the full product datasheet for environmental durability and temperature specifications before specifying this camera for outdoor, high-vibration, or temperature-extreme applications. The pinhole housing suggests indoor or sheltered deployment.

Power and installation notes

The VL572TPIR operates on DC 12V power supply. Power is delivered via a dedicated power cable, separate from the coax video line. Ensure your installation includes a regulated 12V power supply with adequate amperage capacity. The camera accepts both AC/DC power inputs, permitting flexibility in power sourcing from battery backup systems or standard DC supplies. Mount the camera in a location where the pinhole lens and PIR sensor have an unobstructed view of the target area. Integrators should verify that power supply wiring is run separately from video coax to prevent interference.

What is included

Contact us for package details.

Eden Phillips

I evaluated the Speco VL572TPIR during a loss-prevention retrofit for a retail client with legacy analog coax infrastructure. The combination of HD-TVI delivery, integrated PIR motion sensing, and pinhole lens optics makes this camera a practical fit for specific hidden-camera or covert monitoring scenarios where IP-based solutions would require network upgrades or where motion-triggered recording is essential to reduce storage burden.

Technical Highlights:

• 2MP HD-TVI Resolution: Delivers 1920×1080 effective resolution over existing coax cabling without network infrastructure changes.
• Integrated PIR Motion Sensor: Hardware-based thermal detection triggers motion events at the recorder level, reducing false positives from video-based algorithms in reflective or outdoor-facing applications.
• Day/Night Imaging: Automatic IR cut filter switching enables color operation in daylight and monochrome near-IR sensitivity in low-light conditions.
• DC 12V Power Flexibility: Accepts both AC and DC input, permitting integration with battery backup or distributed power supplies in retrofit installations.

Deployment Considerations:

• Verify that the 3.7mm pinhole lens field of view covers your intended surveillance area; pinhole designs are optimized for narrow, focused monitoring rather than wide-angle coverage.
• Pair the VL572TPIR with an HD-TVI DVR or hybrid recorder that supports PIR motion event triggering and motion-based recording profiles.
• In very low-light or zero-lux environments, plan for supplemental infrared illumination or ambient lighting; the camera does not include built-in IR LEDs.
• Confirm IP and operating temperature ratings from Speco's full datasheet before deploying in outdoor, high-vibration, or temperature-extreme environments.

The VL572TPIR is a niche product suited to covert retail, office, or educational surveillance where HD-TVI infrastructure is already in place and where motion detection efficiency is more critical than panoramic coverage. It is not a general-purpose surveillance camera and should not be selected for wide-area or outdoor-primary deployments.
