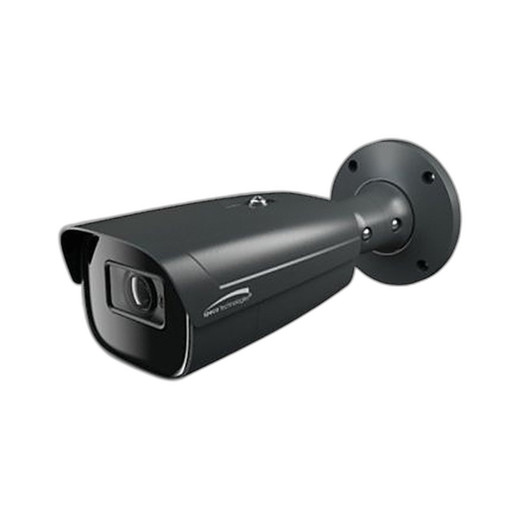

Speco Technologies O8FB1M 8MP AI IP Bullet Camera w motorized Len

Speco Technologies O8FB1M 8MP Flexible Intensifier AI Bullet Camera

Overview

The Speco O8FB1M is a wired 8MP IP bullet camera built for outdoor surveillance with integrated AI-driven analytics and extended infrared coverage. This camera combines a motorized varifocal lens (2.8-12mm) with advanced low-light performance through Flexible Intensifier technology and true Wide Dynamic Range (WDR), enabling reliable monitoring across day/night cycles and challenging lighting conditions. The O8FB1M delivers 8MP (3840x2160) resolution at 30fps with H.265+ and H.264+ compression, making it suitable for detailed forensic review and bandwidth-conscious deployments.

When this is the correct choice

Select the O8FB1M for outdoor surveillance sites requiring extended infrared reach (230ft), motorized zoom flexibility without manual intervention, and embedded AI analytics. Ideal for: perimeter monitoring, parking areas, access points, and facilities where integrators need edge-based object detection (face, vehicle, line-crossing, intrusion) without external analytics servers. The IP67-rated housing and -40°F to 140°F operating range support harsh outdoor and industrial environments. PoE power simplifies single-cable installation on managed networks.

When to choose a different model

If your deployment requires fixed focal length to reduce cost, consider fixed-lens alternatives. If indoor-only operation is required, smaller form-factor box or dome cameras may be more appropriate. For applications demanding pan-tilt-zoom motor control beyond varifocal adjustment, a PTZ camera is necessary. If power constraints prevent PoE (802.3af, 12W max) availability, DC 12V outdoor PoE injectors or midspan solutions are required.

Optics and field of view

The motorized 2.8-12mm varifocal lens provides flexible framing without camera repositioning. At 2.8mm, the field of view is wider for general area coverage; at 12mm, tighter zoom captures distant subjects. Manual or remote focus adjustment via network interface allows integrators to dial in sharp images for specific deployment depths. Lens motor operation requires PoE power allocation.

Imaging performance and low light

The 1/1.8" CMOS sensor and Flexible Intensifier technology deliver robust performance in low-light conditions. True WDR counteracts backlighting and high-contrast scenes (e.g., bright doorways against dark interiors). Infrared illumination extends to 230ft, enabling effective monitoring in complete darkness. The day/night functionality automatically switches between color (day) and black-and-white (night) operation, and IR is user-selectable for manual override if needed.

Analytics and edge capabilities

Built-in AI analytics execute on the camera itself, reducing backend processing load. Supported functions include motion detection, line-crossing alerts, intrusion detection, face detection, and vehicle detection. These analytics can trigger alerts, clip recording, or integration actions without requiring a separate analytics appliance or cloud service.

Video encoding and streaming

The O8FB1M supports H.265+ (HEVC), H.264+, and MJPEG codecs. H.265+ provides superior compression efficiency, reducing storage and bandwidth requirements by ~50% versus H.264+ at equivalent quality. Frame rate is fixed at 30fps. MicroSD card slot (up to 256GB) allows local backup and edge recording, eliminating dependency on network storage during brief connectivity interruptions. ONVIF Profile G compliance ensures compatibility with standard VMS platforms and third-party integrations.

Network and security

The camera connects via standard Ethernet (RJ45) and is ONVIF Profile G compliant, supporting interoperability with major VMS software and IP surveillance ecosystems. Speaker output enables two-way audio communication over the network. Wired connectivity eliminates wireless interference and simplifies network auditing for security integrators.

Environmental and durability ratings

IP67 rating protects against dust and water immersion (submersion up to 1m for 30 minutes), suitable for outdoor bullet mounting on walls, eaves, or poles. Operating temperature range of -40°F to 140°F (-40°C to 60°C) accommodates extreme cold and heat without performance degradation. Housing is dark gray powder-coated aluminum, resisting corrosion in coastal or humid environments.

Power and installation notes

The O8FB1M operates on PoE (802.3af) or DC 12V auxiliary power, consuming 12W maximum. Included junction box simplifies wiring and protects connections in outdoor installations. Single Ethernet cable delivers power and data, reducing conduit requirements and installation labor. Integrators should verify PoE switch or injector is rated for 802.3af minimum; varifocal lens motor operation is included within the 12W budget.

What is included

Speco O8FB1M camera body, 2.8-12mm motorized lens, junction box, and dark gray housing. Contact us for complete accessory kit details and mounting bracket options.

James Everett

I've evaluated the Speco O8FB1M in several outdoor deployments where extended IR reach and embedded analytics are critical. This camera delivers solid performance in mixed lighting and justifies the motorized lens investment when field-of-view flexibility is a requirement.

Technical Highlights:

• 230ft IR reach: Covers large perimeter areas and parking lots without supplemental lighting infrastructure.
• Flexible Intensifier + True WDR: Handles both low-light and high-contrast scenes—real-world strength for entrance monitoring.
• Edge AI (face, vehicle, line-crossing, intrusion): Reduces false alerts and eliminates dependency on backend analytics servers; reduces storage overhead.
• H.265+ compression: Bandwidth savings of ~50% simplify deployment on congested or remote networks.
• 8MP resolution: 3840x2160 provides sufficient detail for forensic review and zoom-in investigations.

Deployment Considerations:

• PoE power budget: Verify your PoE switch or injector supports 802.3af minimum; 12W consumption is within standard allocation, but confirm availability before installation.
• Varifocal setup: Spend time focusing the lens remotely during commissioning—motor responsiveness is smooth, but focus accuracy depends on proper initial calibration.
• MicroSD card strategy: Use local recording as a failsafe for storage, not primary archive. 256GB supports ~24–48 hours of high-bitrate H.265+ depending on scene complexity; plan NVR integration as primary backend.
• Analytics tuning: Out-of-box face and vehicle detection work well in clear conditions, but adjust sensitivity in noisy or reflective environments to reduce false positives.

The O8FB1M is a reliable choice for integrators managing outdoor mixed-light environments with moderate budget constraints. The motorized lens eliminates field revisits for framing adjustments, and embedded analytics reduce operational overhead. Recommended for perimeter, parking, and access-point applications.
