Speco Technologies O6MDP2 6MP 360 Degree Outdoor Dome

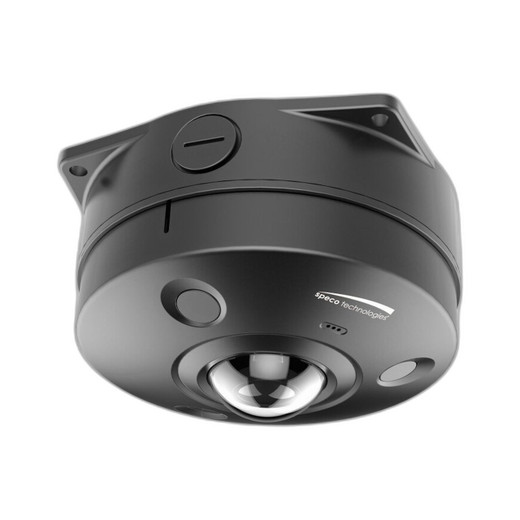

Speco Technologies O6MDP2 6MP 360° Outdoor Dome Camera

Overview

The Speco Technologies O6MDP2 is a wired 6MP panoramic dome camera engineered for full-perimeter outdoor surveillance. Its 1.5mm ultra-wide lens captures 360-degree coverage in a single device, delivering 3072x2048 resolution across the complete field of view. The O6MDP2 combines compact form factor with industrial-grade durability, making it suitable for high-vandalism environments where comprehensive coverage and reliability are non-negotiable. Two-way audio, day/night operation, and edge motion detection provide integrators with a feature-complete platform for retail, campus, and critical infrastructure deployments.

When this is the correct choice

Deploy the O6MDP2 when you need single-camera perimeter coverage without blind spots. Its 360-degree panoramic design eliminates the need for multiple fixed cameras in circular or open-space applications, reducing installation labor and network overhead. The camera excels in outdoor environments where weather and impact resistance are required—parking lots, building corners, traffic intersections, and utility enclosures. Its IP67 rating and IK10 vandal resistance make it suitable for high-traffic areas and locations prone to intentional or accidental damage. PoE power simplicity (12W draw) reduces infrastructure complexity on small-to-medium installations.

When to choose a different model

If your deployment requires telephoto capability, directional focus, or zoom, select a fixed-lens camera with tighter optics or a PTZ unit. The O6MDP2's 1.5mm lens prioritizes breadth over magnification; facial recognition or license-plate detail will require supplemental focused cameras. If you need analog or coax integration, specify a different platform. If indoor-only operation suffices, lower-cost indoor domes may reduce project cost.

Optics and field of view

The O6MDP2's 1.5mm fixed lens is the defining optical characteristic. This ultra-wide focal length produces a 360-degree panoramic field of view that captures all angles simultaneously without mechanical movement. The 1/1.8" CMOS sensor (6MP) provides adequate pixel density across the panorama for motion detection and event logging. Unlike multi-sensor panoramic designs, this single-sensor approach simplifies calibration and reduces firmware complexity, making it easier to integrate into standard ONVIF-compliant VMS platforms.

Imaging performance and low light

The camera delivers 30fps at full 6MP resolution, sufficient for smooth playback and real-time monitoring. IR night vision with 33-foot range provides illumination in complete darkness, bridging the gap between dusk and nighttime operation. Digital WDR (Wide Dynamic Range) handles mixed lighting—bright windows adjacent to shadowed entryways—without washout or underexposure. Day/Night operation automatically switches between color (day) and monochrome (night) modes, preserving low-light sensitivity when visible light drops below threshold.

Analytics and edge capabilities

Motion detection runs on the edge, reducing bandwidth and NVR processing load. The O6MDP2 flags detected motion without sending full video streams unnecessarily, enabling efficient alarm triggering and event-based recording. This lightweight analytics approach suits integrators deploying across many cameras where centralized GPU processing is cost-prohibitive.

Video encoding and streaming

The camera supports H.265 (HEVC), H.264, and MJPEG codec options. H.265 delivers 50% better compression than H.264 at equivalent quality, critical for bandwidth-constrained sites or dense multi-camera deployments. Codec flexibility allows fallback to H.264 for legacy NVR compatibility or MJPEG for streaming to web browsers without transcoding. Frame rate remains 30fps across all codecs.

Network and security

ONVIF Profile S compliance ensures compatibility with third-party VMS platforms—Milestone, Genetec, Salient, Hikvision ISM, and others. The camera integrates via standard RTSP/ONVIF discovery, eliminating vendor lock-in. Wired Ethernet (RJ45) is the sole network interface; Wi-Fi is not supported, ensuring predictable, interference-free operation in dense RF environments.

Environmental and durability ratings

IP67 rating means the camera operates through dust ingress and temporary submersion (up to 1 meter for 30 minutes). IK10 impact resistance protects against deliberate strikes—equivalent to 5kg steel ball dropped from 1.25 meters. Operating temperature range of -22°F to 140°F (-30°C to 60°C) covers northern climates and unshaded exterior surfaces. Housing is black aluminum with integrated junction box for clean electrical termination.

Power and installation notes

The O6MDP2 operates on PoE (802.3af) at 12W maximum, or DC 12V auxiliary power if preferred. The low wattage means a single PoE injector or PoE switch can power dozens of these cameras without high-power PoE+ infrastructure. Weight of 1.3 lbs allows secure mounting to lightweight ceiling or wall mounts using standard hardware. Junction box design simplifies field wiring and reduces post-installation service calls.

What is included

Contact us for package details.

James Everett

I've evaluated the O6MDP2 in several perimeter-coverage deployments, and its 360-degree panoramic design genuinely simplifies site layouts. Unlike multi-camera arrays, a single O6MDP2 reduces NVR throughput, eliminates overlap calibration, and lowers maintenance burden. The 1.5mm lens demands comfort with panoramic resolution tradeoffs—you gain coverage at the expense of facial detail—but for motion-based alerting and event reconstruction, the 6MP across 360 degrees is adequate.

Technical Highlights:

• 360° panoramic capture: Single device covers full perimeter without mechanical movement or multi-camera stitching complexity.
• Robust outdoor ratings: IP67 and IK10 ensure operation in high-impact, high-moisture environments without enclosure upgrades.
• IR night capability: 33-foot IR range extends usable surveillance into complete darkness, eliminating the need for supplemental lighting on many sites.
• ONVIF Profile S: Native third-party VMS compatibility eliminates integration risk and vendor dependency.
• PoE efficiency: 12W power consumption allows dense deployments on standard PoE infrastructure without upgrade costs.

Deployment Considerations:

• Confirm that panoramic resolution meets your detail requirements. If license plates or facial features are critical, pair the O6MDP2 with focused supplemental cameras on high-value zones.
• Verify NVR ONVIF support before purchase; older systems may require firmware updates to properly decode panoramic streams.
• Plan for adequate backhaul bandwidth—30fps H.265 at 6MP can consume 2–4 Mbps depending on scene complexity. Test streaming before full deployment.

The O6MDP2 is a solid choice for integrators seeking simplicity, durability, and zero-blind-spot coverage in outdoor perimeter roles. Its low power draw and compact form factor make it an economical solution for multi-site deployments where infrastructure cost matters.
