Speco O4TDD2M 4MP AI IP Turret Camera

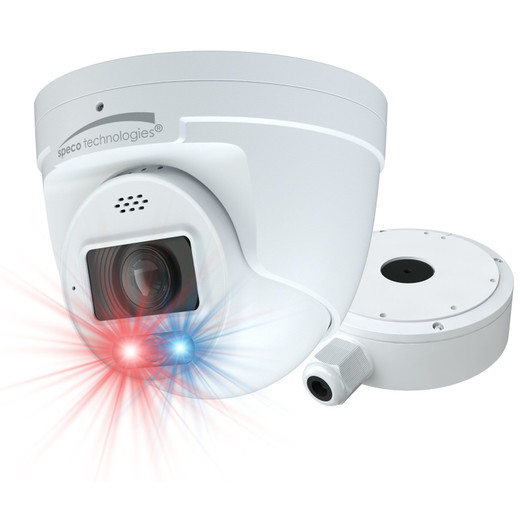

Speco Technologies O4TDD2M 4MP AI IP Turret Camera

Overview

The Speco Technologies O4TDD2M is a 4MP AI-capable IP turret camera designed for outdoor surveillance deployments requiring intelligent video analytics and reliable performance in variable weather conditions. This model combines a 2.8-12mm motorized varifocal lens with native H.265+ compression, 164-foot infrared illumination, and edge-based analytics including motion detection, line crossing, intrusion detection, face detection, and vehicle detection. The turret form factor provides flexible mounting with integrated junction box support for streamlined installation. The O4TDD2M operates on standard PoE (802.3af) or DC 12V power at 12.0W consumption, making it compatible with existing network infrastructure while maintaining low power draw.

When this is the correct choice

Select the O4TDD2M when you need outdoor 4MP coverage with motorized zoom flexibility and integrated AI analytics at the edge. The combination of varifocal optics, true WDR, and native H.265+ compression makes this model suitable for mixed-light environments where operators require both detail capture and efficient bandwidth utilization. The device's NDAA compliance and ONVIF Profile G compatibility ensure integration into enterprise and government security ecosystems. The turret design accommodates wall or ceiling mounting with minimal installation complexity.

When to choose a different model

If your deployment requires fixed focal length to reduce moving parts or optical complexity, consider fixed-lens alternatives. For indoor-only installations in controlled environments, lower IP ratings may be acceptable. If 4MP resolution exceeds operational needs, lower-megapixel options offer reduced storage and bandwidth overhead. For applications requiring thermal imaging or panoramic coverage, evaluate specialized sensor architectures.

Optics and field of view

The O4TDD2M features a 2.8-12mm motorized varifocal lens delivering flexible framing without camera repositioning. This 4.3x zoom range allows operators to adjust focal length from wide coverage (2.8mm) to targeted detail capture (12mm) within a single device. The 1/3-inch CMOS sensor with 2592x1520 native resolution ensures sharp imagery across the zoom range. Motorized focus adjustment compensates for environmental changes and installation variance.

Imaging performance and low light

At 30 fps, the O4TDD2M delivers smooth motion playback and real-time monitoring capability. True WDR (wide dynamic range) processing handles mixed lighting—bright skies and shadowed foregrounds—without washing out detail. The 1/3-inch CMOS sensor with day/night functionality switches automatically between color (day) and infrared-assisted monochrome (night). A built-in 850nm infrared array delivers 164 feet of illumination range, enabling identification-grade detail in complete darkness. Operating temperature range of -40°F to 140°F supports deployment across North American climate zones including high-altitude and desert environments.

Analytics and edge capabilities

Embedded AI on the O4TDD2M processes video locally, reducing bandwidth and enabling immediate alerting. Motion detection triggers alarms on scene activity. Line crossing analytics flag objects crossing predefined zones. Intrusion detection identifies unauthorized entry into protected areas. Face detection and vehicle detection provide object-class specific triggering, reducing false alarms from animals or shadows. These analytics operate at the device level, eliminating dependency on external servers for basic security functions.

Video encoding and streaming

The O4TDD2M supports H.265+ (HEVC), H.264+, and MJPEG codec options. H.265+ compression reduces file size by up to 50% compared to H.264 at equivalent quality, minimizing storage and bandwidth expense. H.264+ provides broad VMS compatibility for legacy systems. MJPEG output enables frame-accurate forensic review. Dual-stream capability allows simultaneous recording and live monitoring at different resolutions and frame rates.

Network and security

ONVIF Profile G certification ensures compatibility with standards-based VMS platforms and recording systems. Wired connectivity via RJ45 Ethernet eliminates wireless latency and interference concerns. IP address assignment via DHCP or static configuration supports enterprise network integration. The turret's compact form factor integrates with standard wall and ceiling mounting infrastructure.

Environmental and durability ratings

IP66 rating protects the lens, sensor, and electronics from dust ingress and heavy water spray, qualifying the O4TDD2M for outdoor mounting under eaves, awnings, and fully exposed wall surfaces. The integrated junction box accommodates conduit termination and PoE injector placement. NDAA (National Defense Authorization Act) compliance confirms the device meets U.S. government sourcing and integrity requirements.

Power and installation notes

PoE (802.3af) power delivery via standard gigabit Ethernet eliminates separate power runs, reducing installation labor and conduit congestion. DC 12V input provides redundancy or off-grid options via external power supplies. At 12.0W peak consumption, the O4TDD2M operates within PoE budget on most enterprise switches. Integrated junction box supports quick-connect wiring and weatherproof termination. Weight of 1.48 lbs permits installation on standard wall brackets without reinforcement.

What is included

Contact us for package details.

Ted Perry

I have evaluated the O4TDD2M during design reviews for distributed surveillance networks requiring edge analytics and reliable outdoor performance. This turret delivers practical intelligence capabilities—face and vehicle detection—without creating server-side processing bottlenecks. The combination of motorized zoom, H.265+ compression, and 164-foot IR range addresses the primary operational constraints in multi-camera deployments: coverage flexibility, storage efficiency, and low-light recognition.

Technical Highlights:

• Motorized 2.8-12mm varifocal lens: Eliminates repositioning effort; operators adjust zoom in-software without service calls. The 4.3x range covers both perimeter overview and facial detail within a single mounting location.
• Edge-native AI analytics: Motion, line crossing, intrusion, face, and vehicle detection run locally on the sensor. Bandwidth usage remains constant regardless of scene activity, and alerting latency approaches zero.
• H.265+ native compression: 50% size reduction versus H.264 translates to 7–10 additional days of storage per drive in standard archive configurations. This efficiency is particularly valuable in bandwidth-constrained or high-camera-count sites.
• True WDR and 164ft IR: The combination handles dawn/dusk transitions and full darkness without loss of identifiable detail. Useful for perimeter protection, parking areas, and building entries.

Deployment Considerations:

• IP66 rating supports full outdoor exposure; verify mounting surface can bear 1.48 lbs without vibration. Turret form allows flexible pan/tilt adjustment during installation.
• PoE (802.3af) power is sufficient; verify your network switches support 12W load across all connected devices. Most enterprise switches carry 95W+ per port.
• Analytics tuning is critical. Line crossing and intrusion zones require adjustment to site geometry during commissioning. Oversized zones generate nuisance alerts; undersized zones miss genuine threats.

For integrators deploying 10+ cameras, the O4TDD2M's consistent H.265+ output and local analytics reduce post-purchase software licensing and server scaling costs. NDAA compliance simplifies government and institutional procurement workflows. Motorized zoom justifies the O4TDD2M over fixed-lens alternatives when mounting locations are fixed but coverage scope must adapt to operational changes.
