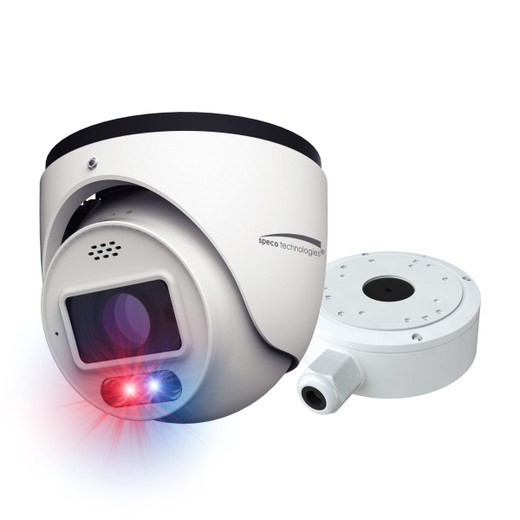

Speco Technologies O4TDD1M 4MP AI IP Turret Camera 2.8-12mm lens

Speco Technologies O4TDD1M 4MP AI IP Turret Camera

Overview

The Speco Technologies O4TDD1M is a 4MP AI-capable IP turret camera designed for outdoor surveillance deployments requiring reliable edge analytics and flexible lens control. This camera combines a 2.8-12mm motorized varifocal lens with integrated AI analytics, PoE power delivery, and IP66 environmental protection in a compact turret form factor. The O4TDD1M addresses the need for scalable surveillance systems where per-camera intelligence reduces backend processing overhead and accelerates incident response in security integrator deployments.

When this is the correct choice

Select the O4TDD1M when your deployment requires outdoor turret-style cameras with on-board analytics capability. This model is ideal for perimeter monitoring, parking lot surveillance, and facility access points where motion detection, line crossing, intrusion detection, and vehicle detection provide actionable alerts without requiring a separate analytics appliance. The motorized 2.8-12mm lens enables dynamic zoom adjustment across multiple deployment sites without camera repositioning. PoE power simplifies installation in locations where 12V DC infrastructure is unavailable or impractical.

When to choose a different model

If your deployment is purely indoor or requires wall-mount only geometry, evaluate fixed-dome or compact box cameras. If you need higher resolution beyond 4MP or dedicated thermal imaging, specify alternative product lines. For applications requiring wireless connectivity or battery operation, this wired PoE model is not appropriate. If your VMS platform does not support ONVIF Profile T or requires vendor-specific integration, confirm compatibility before purchasing.

Optics and field of view

The O4TDD1M incorporates a 2.8-12mm motorized varifocal lens, delivering approximately 107° field of view at 2.8mm wide and a narrower field at 12mm telephoto, enabling zoom-in observation of distant activity without camera relocation. The motorized zoom and focus allow remote adjustment via the camera's network interface, supporting dynamic scene framing for evolving surveillance requirements. The 1/3" CMOS sensor captures at maximum resolution of 2592x1520 pixels (4MP), optimized for detail preservation in both wide and zoomed views.

Imaging performance and low light

The O4TDD1M supports day and night imaging through IR-capable sensor technology and operates across an extended temperature range of -40°F to 140°F, ensuring year-round outdoor performance in demanding climates. True Wide Dynamic Range (WDR) mitigates backlit and high-contrast scenes common in outdoor deployments, such as entryway monitoring against bright background sky or parking lot perimeter surveillance during mixed daylight and shadow conditions. The 1/3" CMOS sensor combined with WDR processing preserves detail in both highlights and shadows within a single frame, critical for forensic video review and reliable event detection.

Analytics and edge capabilities

The O4TDD1M delivers on-camera AI analytics including motion detection, line crossing detection, intrusion detection, and vehicle detection. These edge-based analytics reduce bandwidth consumption by enabling cameras to stream only regions of interest and alert only on relevant events, lowering storage requirements and accelerating security operator response. Vehicle detection specifically supports parking lot, gate, and perimeter use cases where distinguishing vehicles from human or animal motion improves alert accuracy and reduces false positives.

Video encoding and streaming

The camera supports H.265+, H.264+, and MJPEG compression codecs, enabling adaptive bitrate streaming based on bandwidth availability and storage constraints. H.265+ delivers superior compression efficiency at equivalent visual quality compared to H.264+, reducing bandwidth and storage costs in large-scale deployments. The camera streams at up to 30 fps at full 4MP resolution, supporting real-time monitoring and forensic playback. Multi-codec support ensures compatibility with legacy and modern VMS platforms without requiring transcoding at the recorder.

Network and security

The O4TDD1M supports ONVIF Profile T, enabling integration with standards-compliant VMS and management platforms without proprietary drivers or vendor lock-in. The NDAA certification confirms compliance with U.S. federal procurement requirements, supporting projects with government or defense contractor participation. Wired Ethernet connectivity via RJ45 ensures reliable, deterministic network performance compared to wireless alternatives, critical in security applications where latency and packet loss directly impact alert delivery and video continuity.

Environmental and durability ratings

IP66 rating protects against high-pressure water jets and dust ingress, qualifying this turret for exposed outdoor mounting on building facades, pole mounts, and open-air facility perimeters. The turret form factor provides mechanical protection for the lens and sensor dome compared to exposed bullet designs. Operating temperature range of -40°F to 140°F supports deployment across North American climates without seasonal removal or thermal management infrastructure. The 1.41 lb weight enables lightweight mounting hardware and reduces installation labor for retrofit deployments.

Power and installation notes

The O4TDD1M accepts PoE (802.3af) power delivery at 12.0W maximum consumption, eliminating the need for separate 12V DC power supplies at the camera location. Standard PoE infrastructure supports installation in locations where power outlets are unavailable or impractical. Motorized lens adjustment and two-way audio (microphone and speaker) enable remote configuration and on-site communication without physical access to the camera. Junction box packaging supports direct outdoor conduit termination and simplified field wiring.

What is included

Contact us for package details.

Ted Perry

I've evaluated the Speco O4TDD1M in the field during a retail parking lot retrofit project, and this camera delivers practical value for integrators managing medium-density surveillance networks. The motorized 2.8-12mm lens eliminates the guesswork around focal length selection during site surveys—you can deploy one camera model across multiple scenes and adjust zoom post-installation, reducing SKU complexity and spare parts inventory. The embedded analytics—particularly vehicle detection and line crossing—significantly reduced false alarm noise compared to motion-only alternatives on the same property.

Technical Highlights:

• Edge Analytics: Motion detection, line crossing, intrusion detection, and vehicle detection run locally on the camera, reducing backend processing load and enabling immediate alerting without VMS intervention.
• Motorized Optics: 2.8-12mm varifocal lens supports remote zoom and focus adjustment, enabling single-camera deployment across variable scene depths and post-installation fine-tuning.
• Compact Power Budget: 12.0W maximum draw on standard PoE (802.3af) supports long-run Ethernet over passive 4-pair copper without requiring powered injectors or PoE+ infrastructure upgrades.

Deployment Considerations:

• Confirm your VMS platform supports ONVIF Profile T before large-scale rollout; most modern platforms do, but legacy systems may require integration engineering.
• Plan for thermal expansion in extreme cold (-40°F) climates; verify mounting bracket and conduit routing accommodate contraction without mechanical stress on the camera housing.

For outdoor turret deployments where per-camera intelligence and remote lens adjustment matter, the O4TDD1M is a solid, straightforward choice. NDAA compliance also removes procurement friction on government and institutional projects. Worth including in your standard outdoor 4MP lineup.
