Speco Technologies O4FD1M 4MP Flexible Intensifier AI IP Dome Cam

Speco Technologies O4FD1M 4MP Flexible Intensifier AI IP Dome Camera

Overview

The Speco O4FD1M is a 4MP IP dome camera purpose-built for outdoor and semi-vandal-prone environments. This unit combines a 1/1.8" CMOS sensor, motorized 2.8-12mm varifocal lens, and edge-based AI analytics in a compact, weather-sealed housing. With IP67 rating and IK10 vandal resistance, the O4FD1M delivers reliable surveillance in demanding deployment scenarios. The camera supports dual compression (H.265+ and H.264+) for flexible bandwidth management and streams at 30 fps at full 4MP (2576×1452) resolution. Day/night operation with true WDR ensures visibility across lighting transitions. The unit is NDAA-compliant and ONVIF Profile T compatible, making it suitable for federal projects and multi-vendor VMS integrations.

When this is the correct choice

Select the O4FD1M when deploying outdoor surveillance requiring both flexibility and durability. The motorized varifocal lens supports field-adjustable zoom and focus without disassembly, reducing installation time in variable field-of-view scenarios. The camera is ideal for perimeter monitoring, facility entrances, and parking areas where AI-driven analytics (motion detection, line crossing, intrusion, face detection, vehicle detection) add operational intelligence. PoE power delivery—drawing only 9.0W—simplifies wiring and supports single-cable installations. The IK10 rating and IP67 sealing make this unit suitable for exposed wall mounts, bracket installations, and areas subject to weather and environmental stress.

When to choose a different model

If you require pan-tilt-zoom (PTZ) mechanical movement, evaluate fixed-position models or dedicated PTZ units. If installation demands passive infrared range exceeding the O4FD1M's native night vision capability, consider cameras with extended IR illumination. For indoor-only applications without vandalism risk, a lower IK-rated dome may reduce cost. If your VMS does not support ONVIF Profile T, confirm compatibility before purchasing.

Optics and field of view

The O4FD1M integrates a motorized 2.8-12mm varifocal lens, providing a dynamic field of view suitable for both overview and detailed monitoring. The 2.8mm wide setting accommodates large areas, while the 12mm telephoto position isolates subjects for identification. Motorized focus and zoom operation allows field adjustment without physical lens replacement. The lens is paired with a 1/1.8" CMOS sensor, a larger format that improves light gathering and detail retention, particularly in marginal lighting conditions.

Imaging performance and low light

The O4FD1M operates across an extended temperature range of -40°F to 140°F, supporting both arctic and high-heat deployments. True wide dynamic range (WDR) processing handles backlit and high-contrast scenes, preserving detail in shadows and highlights simultaneously. The camera delivers day/night operation via mechanical IR-cut filter, switching automatically between color and monochrome modes. Night vision is active when ambient light drops, enabling surveillance continuity during darkness. The 4MP resolution at 30 fps supports real-time playback and forensic review at high detail without frame-rate penalties.

Analytics and edge capabilities

Built-in AI analytics run at the camera edge, reducing VMS processing load and enabling real-time alerts independent of recording infrastructure. The O4FD1M includes motion detection, line crossing detection, intrusion detection, face detection, and vehicle detection. These functions support automated rule engines (e.g., trigger recording or alerts on intrusion across a virtual perimeter boundary) without server-side analytics overhead. Analytics results are embedded in the video stream metadata for seamless integration with ONVIF-compatible VMS platforms.

Video encoding and streaming

Dual H.265+ and H.264+ compression allows administrators to optimize bandwidth and storage trade-offs based on network capacity and archival policy. H.265+ typically achieves 40–50% bandwidth reduction versus H.264+ at equivalent quality. The camera also supports MJPEG for legacy system integration or high-bandwidth, high-frame-rate scenarios. Full-resolution 4MP (2576×1452) streaming at 30 fps is maintained across all codecs. Variable bitrate and frame-rate controls further tune streaming profiles to match available network resources.

Network and security

The O4FD1M is NDAA-compliant, meeting federal procurement requirements for government and critical-infrastructure projects. ONVIF Profile T support ensures broad compatibility with third-party VMS, recording software, and management systems without vendor lock-in. Wired Ethernet connectivity (PoE) and the absence of Wi-Fi reduce wireless attack surface. Integration with secure network architectures (VLANs, 802.1X, firewall segmentation) is supported through standard IP networking practices.

Environmental and durability ratings

IP67 rating protects against dust ingress and temporary submersion, suitable for outdoor mounting under eaves or in semi-sheltered locations. The IK10 rating provides impact resistance to vandalism and accidental damage, withstanding strikes and blunt force in high-risk areas. The operating temperature range of -40°F to 140°F ensures performance in both cold storage facilities and hot outdoor environments without seasonal downtime. The camera weighs 2.05 lbs, supporting standard ceiling or wall-mount brackets without reinforcement in most installations.

Power and installation notes

The O4FD1M operates on PoE (802.3af) at 9.0W maximum consumption, eliminating the need for auxiliary power supplies or conduit runs. A standard PoE injector or PoE+ switch powers the camera and transmits video over a single Cat5e/Cat6 cable. The included junction box simplifies field termination and cable routing. Installation time is reduced by the motorized lens, which enables focus and zoom adjustment from the control room after mounting. No special tools or return trips are required for field-of-view refinement.

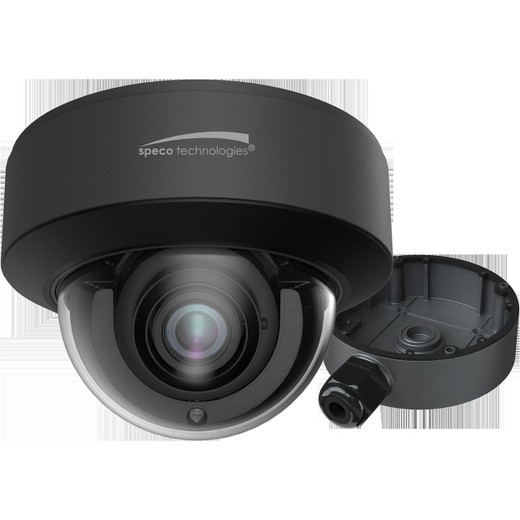

What is included

• Speco Technologies O4FD1M IP dome camera
• Junction box for field termination and cable management

Jerry Tildsen

I have evaluated the Speco O4FD1M during planning phases for mixed outdoor-indoor federal compliance projects. This camera strikes a practical balance between ruggedness, optical flexibility, and edge intelligence. The motorized varifocal lens is a significant field advantage—zoom and focus adjustment post-installation reduces costly site revisits and allows dynamic field-of-view tuning as operational requirements evolve. The unit's 9W PoE footprint is remarkably efficient for 4MP streaming, freeing up power budget on shared PoE runs.

Technical Highlights:

• Motorized 2.8-12mm lens: Field-adjustable zoom and focus without disassembly, supporting variable deployment scenarios from overview to detail capture.
• Edge AI analytics: Motion, line crossing, intrusion, face, and vehicle detection operate at the camera level, enabling automated alerts and rule-based actions independent of backend infrastructure.
• Dual codec support: H.265+ and H.264+ compression allow bandwidth optimization across heterogeneous network environments and legacy VMS platforms.
• IP67/IK10 durability: Sealed against dust and weather; vandal-resistant casing supports exposed outdoor and semi-exposed mounting without protective enclosures.

Deployment Considerations:

• The PoE power limit (9.0W) makes this unit a reliable choice for mixed-load PoE networks where power budgeting is critical; prioritize Cat5e or better cabling for voltage stability on longer runs.
• ONVIF Profile T compatibility is core to federal and multi-vendor integrations; confirm VMS version support before large-scale rollouts to ensure metadata and analytics pass through unmodified.
• Temperature range (-40°F to 140°F) supports both northern and southern U.S. deployments without seasonal swaps; test mechanical lens operation in extreme cold before critical deployments to verify smooth actuation.

The O4FD1M is a solid choice for outdoor federal projects requiring NDAA compliance, field-adjustable optics, and operational intelligence without excessive power or complexity. The combination of varifocal optics, edge analytics, and compact PoE design makes it a reliable workhorse for perimeter and facility surveillance.
