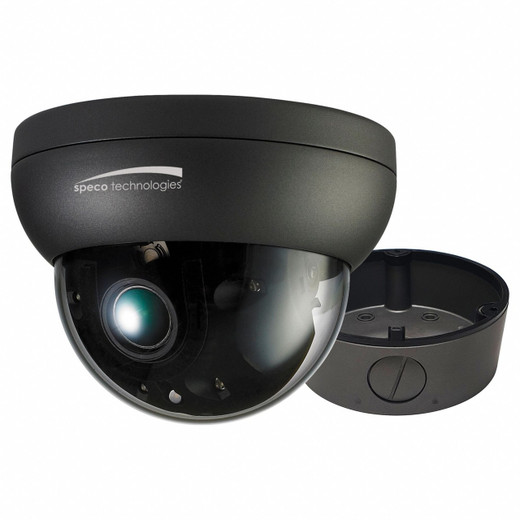

Speco HTID21TM 2MP HD-TVI Intensifier Dome Camera

Speco Technologies HTID21TM 2MP HD-TVI Intensifier Dome Camera

Overview

The Speco Technologies HTID21TM is a 2MP HD-TVI intensifier dome camera designed for security integrators and surveillance system installers requiring reliable, cost-effective monitoring in diverse lighting conditions. This camera combines HD-TVI transmission with intensifier technology to deliver clear video in low-light environments without reliance on traditional infrared illumination. The HTID21TM integrates a motorized 2.8-12mm varifocal lens, allowing installers to adjust field of view and focus remotely during commissioning and maintenance cycles. Grey housing and UL certification support professional indoor and outdoor deployments across retail, industrial, and facility management applications.

When this is the correct choice

Select the HTID21TM when your project requires HD-TVI infrastructure with intensifier low-light performance. This camera is ideal for environments where IR bloom, reflection, or glare presents challenges—parking structures, loading docks, and indoor facilities with variable ambient light. The 2MP resolution and motorized lens suit medium-range surveillance tasks where flexible focal length is required without the expense of PTZ mechanisms. UL certification makes it appropriate for commercial and institutional deployments. This is a solid choice for integrators standardizing on Speco HD-TVI platforms seeking low-light capability beyond fixed-lens alternatives.

When to choose a different model

If your application demands 4MP or higher resolution, consider Speco's higher-megapixel HD-TVI lines. For facilities requiring pan-tilt-zoom functionality, a PTZ dome is necessary. If your infrastructure is IP-based (ONVIF, PoE), select an IP camera rather than an HD-TVI coaxial model. For applications where IR performance and reflective surfaces are not a concern, fixed-lens intensifier or standard turret cameras may reduce cost. Projects requiring extended IR range beyond intensifier capability should evaluate dedicated IR dome models with active illumination.

Optics and field of view

The HTID21TM features a motorized 2.8-12mm varifocal lens, providing a wide-angle starting point at 2.8mm with flexibility to narrow the field of view to 12mm for focused coverage on specific zones. This 4:1 zoom ratio supports flexible deployment without lens replacement. Motorized operation allows integrators to adjust focal length and focus during installation via HD-TVI control signals, improving commissioning efficiency and reducing site visits. The lens is optimized for the intensifier sensor, ensuring even light distribution across the frame.

Imaging performance and low light

Intensifier technology enables the HTID21TM to capture usable video in near-darkness by amplifying available light rather than generating IR energy. This approach eliminates IR bloom and glare common in scenes with reflective surfaces, high-speed motion, or dense fog. The 2MP resolution (1920×1080 progressive scan) provides clear detail for identification and forensic review. The intensifier mode preserves natural colors and contrast in twilight conditions while maintaining image integrity in complete darkness, making it suitable for 24/7 surveillance without seasonal adjustment or environmental recalibration.

Analytics and edge capabilities

The HTID21TM transmits uncompressed HD-TVI video via coaxial cable to compatible DVR or encoder hardware. Video analytics are performed at the DVR level or through connected VMS platforms rather than on-camera. Integrators can deploy motion detection, line crossing, and zone-based alerts through the recording system. This architecture simplifies camera deployment while maintaining centralized intelligence at the backend.

Video encoding and streaming

As an HD-TVI camera, the HTID21TM outputs uncompressed high-definition video at 1920×1080 resolution over standard coaxial cable (RG-59 or RG-6 up to 300 feet with proper termination). HD-TVI transmission eliminates the latency and bandwidth overhead of IP streaming, delivering real-time video suitable for live monitoring and rapid incident response. The camera is compatible with Speco HD-TVI DVRs and third-party HD-TVI recorders supporting the protocol standard.

Network and security

The HTID21TM operates on closed HD-TVI infrastructure, eliminating IP network dependencies and associated cybersecurity exposure. Video data remains isolated from corporate networks and cloud systems. This design is ideal for facilities prioritizing air-gapped or restricted-access surveillance. No firmware updates, authentication credentials, or patch management are required for the camera itself, reducing operational overhead for IT teams.

Environmental and durability ratings

The camera features grey housing suitable for indoor and outdoor installations. UL certification confirms compliance with electrical safety standards required in North American commercial projects. The dome form factor and weatherproofed enclosure support mounting in covered outdoor areas, eaves, and interior ceiling installations. Integrators should confirm specific IP rating with Speco technical support for full environmental exposure requirements in high-moisture or washdown environments.

Power and installation notes

The HTID21TM requires 12V DC power input via a dedicated power conductor integrated into the camera cable or supplied separately. Power consumption is typical for HD-TVI domes and compatible with standard surveillance power supplies. The motorized lens requires control signals transmitted over the same coaxial link using Speco's HD-TVI motor control protocol, so compatible DVR firmware is essential for lens operation. Installers should verify coaxial cable quality and termination to maximize transmission distance and minimize signal degradation. The dome mount accepts standard ceiling or wall brackets.

What is included

Contact us for package details.

Eden Phillips

I've evaluated the HTID21TM during design phases for a regional logistics facility seeking reliable low-light surveillance without IR complications. The intensifier approach proved valuable in loading dock areas where reflective surfaces and seasonal moisture create problems for conventional IR systems. The motorized lens is a practical addition for a fixed-dome deployment, reducing installation time when field of view adjustment is needed.

Technical Highlights:

• Intensifier low-light: Delivers usable video in near-darkness by light amplification, avoiding IR bloom in reflective environments common to industrial facilities.
• 2MP HD-TVI: Uncompressed 1920×1080 transmission over coaxial cable eliminates latency and network vulnerabilities for real-time monitoring and forensic evidence.
• Motorized 2.8-12mm lens: Remote focal length adjustment during commissioning reduces site visits and allows flexible coverage adjustment without lens swaps.

Deployment Considerations:

• HD-TVI infrastructure requires compatible DVR or encoder; verify backend system support before purchase to ensure seamless integration.
• Coaxial cable runs should be carefully terminated and tested; poor cable quality or connectors directly impact transmission clarity and distance.
• Intensifier technology excels in consistent low-light scenes; extremely variable lighting (rapid day-to-night transitions) may require VMS-level exposure control adjustment.

The HTID21TM is a solid choice for integrators standardizing on Speco's HD-TVI platform who need reliable low-light performance without the added cost and complexity of IR systems. It pairs well with existing coaxial infrastructure and delivers practical value in environments where traditional IR creates more problems than it solves.
