Speco H4FB1M 4MP HD-TVI Bullet Camera 2.7-12mm

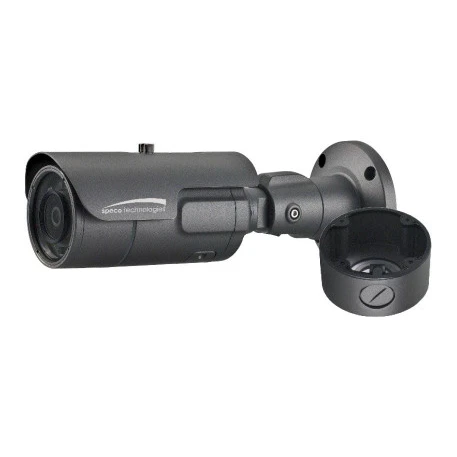

Speco Technologies H4FB1M 4MP HD-TVI Bullet Camera

Overview

The Speco Technologies H4FB1M is a 4MP HD-TVI fixed bullet camera purpose-built for outdoor surveillance deployments requiring robust environmental protection and reliable image capture across dynamic lighting conditions. This camera delivers 2592×1944 resolution at 30fps, providing clear detail for identification and forensic review. The 2.7-12mm motorized varifocal lens enables flexible field-of-view configuration without requiring physical reinstallation, a significant operational advantage in multi-camera outdoor systems. The H4FB1M includes a junction box for simplified wiring integration and is housed in grey vandal-resistant construction rated IP67 for dust and water immersion—essential for rooftop, perimeter, and harsh-environment surveillance applications.

When this is the correct choice

The H4FB1M is the right selection for integrators deploying fixed outdoor surveillance in moderate-to-large coverage areas where 4MP resolution meets identification requirements and motorized lens adjustment reduces on-site recalibration labor. Its HD-TVI platform ensures compatibility with existing analog infrastructure upgrades and TVI-based hybrid DVR/NVR systems. The True WDR capability handles challenging backlit scenarios—parking lot entries, building facades with bright skies, perimeter fences with mixed sun and shadow. TAA and NDAA certifications make it compliant for federal, state, and local government procurement. Choose this camera when environmental durability, proven HD-TVI reliability, and regulatory compliance are mandatory.

When to choose a different model

If your deployment requires IP/PoE-native architecture, consider an IP-based 4MP camera instead—the H4FB1M operates on DC 12V analog infrastructure. If edge analytics (people detection, vehicle counting, loitering alerts) are required, the H4FB1M does not provide on-camera processing; these functions must be handled by external VMS or video management appliances. For applications requiring sub-zero operating temperatures below -4°F or extreme heat above 122°F, verify environmental specs against your site conditions. If you need PTZ capability or zoom beyond the motorized lens range, a PTZ camera is necessary.

Optics and field of view

The 2.7-12mm motorized varifocal lens provides approximately 112° horizontal field of view at 2.7mm (wide) and approximately 27° at 12mm (telephoto). Motorized focus and iris control allow remote adjustment, eliminating manual refocus during installation verification or seasonal lighting changes. This flexibility is invaluable in multi-site deployments where field-of-view tweaking occurs post-installation without technician return trips.

Imaging performance and low light

The H4FB1M captures 4MP (2592×1944) at 30 frames per second, delivering smooth motion rendering and adequate temporal resolution for activity analysis. True WDR (Wide Dynamic Range) processing balances exposure across bright and dark regions simultaneously—critical for outdoor scenes with mixed illumination such as building entries, vehicle barriers, and perimeter coverage. Day/Night operation with automatic IR cut filter switching ensures consistent image quality through the full 24-hour cycle. Night vision capability enables surveillance continuation in complete darkness, though IR range specifications were not provided in the available documentation.

Analytics and edge capabilities

The H4FB1M does not include embedded video analytics or edge processing. Motion detection and event triggering must be implemented at the DVR/NVR or VMS layer. This design reduces camera cost and simplifies firmware maintenance but requires backend infrastructure for intelligent alerting.

Video encoding and streaming

HD-TVI video output is transmitted over standard coaxial cable to a compatible TVI receiver or hybrid DVR. The camera does not support IP streaming, H.264, H.265, or RTSP protocols—it is an analog technology camera. Integration with IP-based VMS systems requires a TVI-to-IP conversion appliance or gateway.

Network and security

As an analog HD-TVI camera, the H4FB1M does not use network connectivity or IP protocols. There are no IP-layer cybersecurity concerns, firmware signing requirements, or network authentication. All control and signal transmission occur over coaxial cable directly to the DVR/NVR receiver.

Environmental and durability ratings

The H4FB1M is rated IP67, meaning it is fully protected against dust and can withstand temporary immersion in water up to 1 meter for 30 minutes. This rating supports outdoor mounting on poles, rooflines, and building exteriors in rain, snow, and high-humidity environments. The grey housing provides corrosion resistance and blends with typical industrial and commercial building finishes. Operating temperature range is -4°F to 122°F (-20°C to 50°C), supporting most North American climates; verify suitability for extreme-environment sites.

Power and installation notes

The H4FB1M operates on DC 12V power supplied via standard 2-conductor cable alongside the coaxial video line. A regulated 12V DC power supply rated for the total system draw must be provided separately—the camera does not support PoE. The included junction box simplifies field termination and wiring consolidation, reducing installation time and improving weatherproofing at the camera terminal point. Ensure the power supply is located within a protected enclosure or cabinet rated for the same operating temperature range.

What is included

• Speco H4FB1M bullet camera body with 2.7-12mm motorized varifocal lens
• Grey housing with IP67-rated enclosure
• Junction box for wiring termination

Note: Power supply, coaxial cable, and mounting hardware are not included. Consult the system integrator guide or contact Speco for recommended cable gauges and power supply sizing.

Eden Phillips

I have evaluated the Speco H4FB1M during the planning phase of a mixed-use campus perimeter upgrade. This camera is a solid analog workhorse, particularly valuable when replacing legacy CCTV infrastructure or extending coverage in facilities already committed to HD-TVI architecture. The motorized lens significantly reduces on-site focus labor compared to fixed-lens alternatives, and the included junction box is a practical touch that saves integration time.

Technical Highlights:

• 4MP HD-TVI at 30fps: Delivers 2592×1944 resolution across standard coaxial plant, proven interoperability with Speco and third-party TVI DVRs
• True WDR: Handles backlit outdoor scenes (parking entries, building facades) without exposure compensation
• 2.7-12mm motorized lens: Remote focus and iris adjustment eliminates return visits for field-of-view tweaking; approximately 27° to 112° coverage envelope
• IP67 environmental rating: Rooftop, perimeter, and high-moisture deployments with -4°F to 122°F operating range
• TAA/NDAA compliance: Direct procurement eligibility for federal and state contracts

Deployment Considerations:

• Verify DC 12V power supply capacity and cable run distance; voltage drop over extended runs will degrade iris and focus motor response
• Use quality coaxial cable (RG-6 or better) to maintain video fidelity and minimize interference—particularly important in electrically noisy industrial environments
• If edge analytics or people counting is required, plan for a separate VMS or DVR with video processing capability; the H4FB1M itself provides no on-camera intelligence

This camera performs exactly as specified—a reliable, compact 4MP analog surveillance tool. It is not an IP camera and should not be positioned as a network-native solution, but within the analog and HD-TVI ecosystem, it delivers solid build quality and practical field features at a competitive price point. Recommended for integrators with existing TVI infrastructure or customers explicitly choosing proven analog technology over IP complexity.
