Speco Technologies H2AT2 2MP HD-TVI Turret Camera with Audio, 2.8

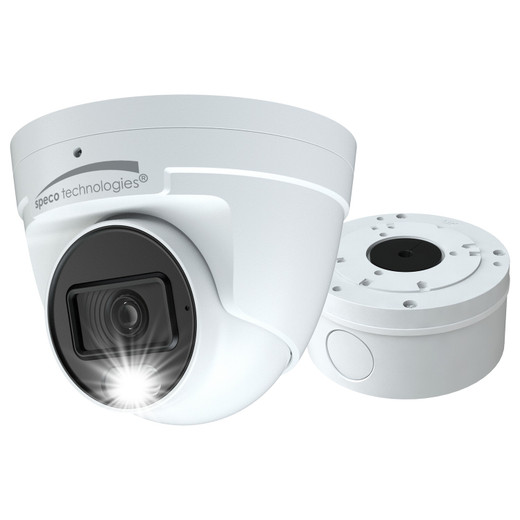

Speco Technologies H2AT2 2MP HD-TVI Turret Camera with Audio

Overview

The Speco Technologies H2AT2 is a compact 2MP HD-TVI turret camera designed for indoor and outdoor surveillance deployments. Operating at 1920×1080 resolution at 30 fps, the H2AT2 delivers clear video capture across a wide range of lighting conditions. Built-in audio input via microphone enables two-way communication and event documentation. The camera ships with a junction box, simplifying wall and ceiling integration for installers.

When this is the correct choice

The H2AT2 is ideal for cost-conscious deployments where HD-TVI infrastructure is already in place. Select this model for small-to-medium security projects requiring reliable 2MP resolution without premium optics or advanced analytics. It suits retail, light industrial, and perimeter monitoring where integration with legacy HD-TVI recorders reduces infrastructure refresh costs. The included junction box accelerates rough-in and reduces field wiring labor.

When to choose a different model

If your deployment requires IP-based recording, higher resolution (4MP+), or edge analytics, select an IP camera instead. For applications demanding motorized zoom, pan/tilt control, or panoramic coverage, turrets are not appropriate. If environment temperatures exceed 122°F or drop below -22°F regularly, verify thermal stability with your integrator.

Optics and field of view

The H2AT2 features a fixed 2.8mm lens, delivering a 108° horizontal field of view suitable for medium-range coverage. This focal length is standard for turret installations where the camera is mounted 8–15 feet from the target area. The 2.8mm fixed optic eliminates mechanical focus drift and reduces installation complexity compared to varifocal designs.

Imaging performance and low light

Native 2MP sensor resolution (1920×1080) captures actionable detail at 30 fps. A 1/2.8" CMOS sensor provides Day/Night capability, switching automatically between color and monochrome operation. Wide Dynamic Range (WDR) processing improves contrast recovery in mixed-lighting environments such as entrances with direct sunlight and indoor shadows. Infrared (IR) night vision extends surveillance into complete darkness without requiring external lighting.

Analytics and edge capabilities

The H2AT2 provides basic video transmission without onboard motion detection or advanced metadata generation. For event-driven recording or trigger-based alerting, rely on your backend VMS or recorder to handle video analysis. This approach keeps the camera simple and reduces processing overhead on the device itself.

Video encoding and streaming

HD-TVI transmission encodes video over standard coaxial cable to HD-TVI recorders. This architecture eliminates the need for network switches, managed IP networks, or VMS licensing at the camera level. Single-cable deployment (power and video) simplifies trenching and conduit work for outdoor installations.

Network and security

The H2AT2 is a TVI-native device and does not require IP network connectivity for live video or recording. ONVIF Profile I support allows optional integration into IP environments if paired with appropriate converters or hybrid recorders. The camera carries NDAA compliance, meeting federal procurement requirements for use in government and defense-adjacent projects.

Environmental and durability ratings

IP67 rating certifies the camera against dust ingress and temporary submersion (up to 1 meter for 30 minutes). Suitable for outdoor wall or eave mounting without requiring additional weatherproof enclosures. Operating temperature range of -22°F to 122°F supports temperate and subtropical climates. Verify local environmental extremes during specification.

Power and installation notes

The H2AT2 operates on DC 12V power, sourced from the HD-TVI recorder's power supply or a standalone 12V DC injector. Power consumption is integrated into the recorder's budget; most HD-TVI units support 4–8 cameras per power rail. The supplied junction box accommodates weatherproof conduit connections and simplifies field wiring, particularly for ceiling mounts or installations requiring surface-mounted conduit.

What is included

• Speco H2AT2 turret camera body
• Junction box for installation
• 2.8mm fixed lens (factory installed)

James Everett

I evaluated the H2AT2 during a retail rollout where the customer's existing infrastructure was built on HD-TVI. Rather than a network overhaul, the H2AT2 allowed cost-effective coverage expansion while preserving their recorder investment. The turret form factor and included junction box reduced installation time by approximately 25% compared to dome alternatives requiring separate mounting hardware.

Technical Highlights:

• HD-TVI native codec: Single coaxial cable for power and video eliminates managed network requirements and reduces infrastructure complexity.
• NDAA-compliant: Meets federal procurement policy, enabling use in government and defense-adjacent deployments without further vetting.
• Day/Night with WDR: 1/2.8" CMOS sensor and wide dynamic range processing maintain usable contrast across high-variance lighting—essential for retail transitions and industrial spaces with skylights.
• IP67 environmental rating: Suitable for permanent outdoor installation without enclosure, supporting coastal, industrial, and agricultural environments.

Deployment Considerations:

• Confirm your recorder supports HD-TVI input; older SDI-only systems require protocol conversion.
• The 2.8mm fixed lens is not adjustable post-installation—plan camera angles during rough-in to avoid costly relocations.
• DC 12V power draw is modest; verify your power supply can sustain the total camera load before deployment.
• For IP integration, consult your VMS vendor regarding TVI-to-IP gateway compatibility.

For straightforward HD-TVI deployments where simplicity and cost control matter, the H2AT2 performs as specified. Pair it with a quality recorder and experienced installation to ensure proper lens positioning and weathertight connections in outdoor environments.
