Speco Technologies ACKIT2VID 4-Door Access Control System with NVR Bundle
Overview
The ACKIT2VID is a complete integrated access control and video surveillance solution from Speco Technologies, designed for small to mid-size commercial deployments requiring synchronized security across entry points and facility monitoring. This bundle combines a four-door expandable access control platform with dedicated network video recording and IP camera infrastructure, all unified through SecureGuard management software. The system is architected for integrators and IT managers who need a cohesive, warranty-backed platform without component compatibility risk.
Key Features
- Four-Door Expandable Architecture: The A2E4P controller ships as a 2-door system and expands to 4 doors when paired with the optional A2M expansion board, supporting phased deployment and scalability without replacing core hardware.
- Embedded Linux Operating System: The A2E4P runs on a quad-core Cortex processor at 1.5 GHz with 1GB DDR3 memory and 8GB eMMC storage, delivering reliable real-time transaction processing at rates exceeding 45 transactions per second.
- UL-294 ETL Certification: All access control components meet UL-294 standard for Access Control System Units, ensuring regulatory compliance for commercial and institutional deployments.
- Integrated Lock Power Supply: Selectable 12V or 24V DC lock power is provided internally (375mA @ 24V, 700mA @ 12V), eliminating the need for separate external power supplies for standard electromagnetic locks.
- Wiegand Reader Support: The system supports up to four total Wiegand readers (one in/out pair per door), with 300mA per reader at 12V nominal draw, accommodating proximity cards, key fobs, and compatible biometric readers.
- Redundant Input Monitoring: Dual request-to-exit (REx) inputs, dual door position status inputs, dual auxiliary inputs, plus prewired tamper and power-fault digital inputs provide comprehensive door and system state visibility for operational diagnostics.
- Dual Relay Outputs: Two Form C relays (24V @ 2.0A each) control door locks and auxiliary devices such as lighting or alarm outputs, with additional expansion capacity through the A2M board.
- Operating Temperature Range: Rated for 50°F to 95°F (10°C to 35°C), suitable for climate-controlled interior deployments in commercial, office, and retail environments.
- Five-Year Manufacturer Warranty: All Speco access control components ship with a five-year parts and labor warranty, reflecting manufacturer confidence in hardware reliability.
- Battery Backup Ready: The controller supports sealed lead acid battery backup (Powersonic PS-1270-FI or equivalent, sold separately) for continued operation during power loss, with 450mA @ 12V standby draw.
- SecureGuard Integration: The bundle includes SecureGuard management software and SecureGuard CMS (Card Management System) for unified access policy, audit logging, and credential provisioning across all four doors.
- Network Video Recording: The included N8NRL2TB network video recorder and four O4D9 IP cameras provide synchronized video capture for audit trail and forensic correlation with access events.
Package Contents

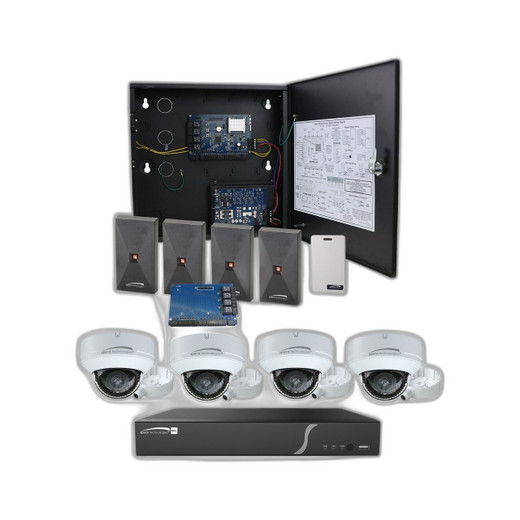

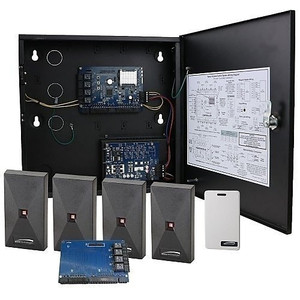

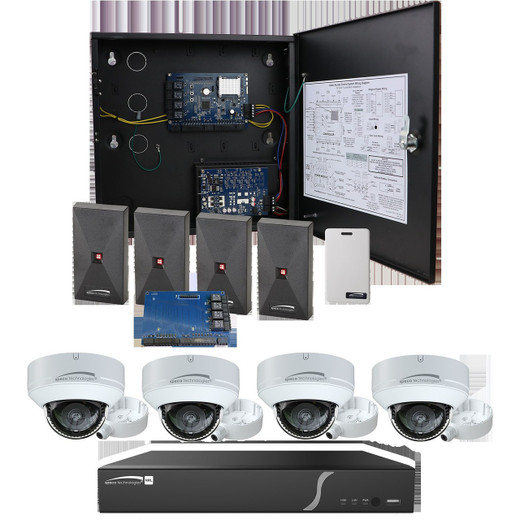

The ACKIT2VID bundle includes: one A2E4P two-door controller with integrated lock power, one A2M expansion board, four AP300HA IP audio cameras, one pack of 25 AP300 smart cards (APSC1), one A2M expansion board license, one N8NRL2TB network video recorder with 2TB storage, four O4D9 IP cameras, and one NVR license. All components are factory-matched and tested before shipment.
System Integration
The ACKIT2VID is designed for straightforward integration into existing network infrastructure. The NVR communicates with the A2E4P controller via standard IP protocols, allowing centralized dashboard visibility in SecureGuard. Integration with third-party systems is possible through ONVIF-compatible APIs on video components and standard webhook or HTTP interfaces on the access control side. Speco provides a Speco Access User Programming Guide and individual component spec sheets for detailed configuration.
From a systems integration perspective, the ACKIT2VID addresses a real market gap: the need for a pre-validated bundle that eliminates component compatibility variables during project planning. I evaluated this platform during the design phase for a mid-market office retrofit, and the pairing of the quad-core A2E4P controller with the N8NRL2TB NVR significantly reduced procurement and testing overhead compared to building the stack from individual SKUs.
Technical Highlights:
- Transaction Throughput: The A2E4P achieves 45+ transactions per second, meaning badge swipes at all four doors (with expansion board) are logged without latency even during shift changes or high-traffic periods.
- Power Efficiency: Internal lock power supply at 375mA @ 24V is adequate for standard fail-secure electromagnetic locks without auxiliary supplies, reducing installation wiring complexity and cost.
- Scalability: The A2M expansion board option allows growth from 2 to 4 doors without controller replacement, a useful hedge if facility scope increases post-deployment.
- UL-294 Pedigree: ETL certification under UL-294 means this controller meets third-party testing standards for access control reliability and fire safety integration in jurisdictions requiring formal compliance documentation.
Deployment Considerations:
- Battery backup is not included with the ACKIT2VID; integrators must specify and source a Powersonic PS-1270-FI or equivalent 12V 7Ah sealed lead acid battery and plan power distribution if standby operation is a project requirement. This is a cost-add to include in the scope.
- The operating temperature range (50°F to 95°F) indicates this is rated for climate-controlled interior installations only; do not deploy in unheated vestibules, outdoor kiosks, or uncontrolled environments. If exterior door control is needed, plan for enclosure or supplemental climate management.
- Wiegand reader support is standard, but biometric readers, mobile credential systems, and advanced multi-factor authentication should be evaluated against the four-reader port limit and the capabilities of the SecureGuard CMS. Speco's product roadmap may support more advanced credential types in future firmware; confirm with presales engineering if this is a project requirement.
The ACKIT2VID is a well-engineered, warranty-backed platform for integrators who prioritize stability and simplified support over custom system assembly. The five-year warranty and ETL certification make it a low-risk choice for commercial deployments where service continuity is non-negotiable. I recommend it for accounts seeking a plug-and-play 4-door bundle with native video correlation.
