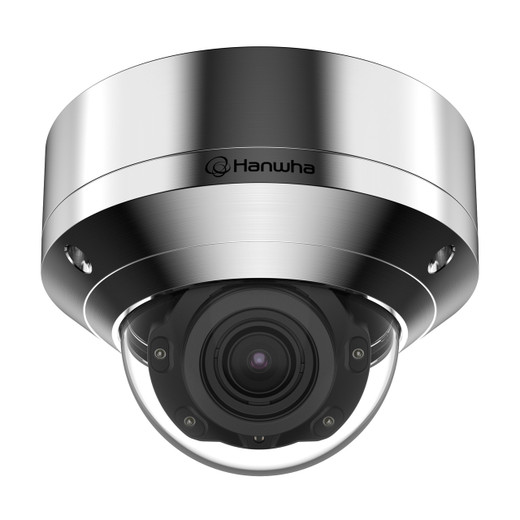

Hanwha XNV-8080RSA RB Overview
The Hanwha XNV-8080RSA RB is a Rebox stainless steel network dome camera designed for harsh outdoor and marine environments where corrosive conditions, high-pressure washdown, and extreme temperature fluctuations are routine. This 5MP unit pairs Wisenet X technology with Wisenet 5 imaging algorithms to deliver professional-grade surveillance in IP67/IP6K9K-rated stainless steel construction. It is ideal for coastal installations, food processing facilities, chemical plants, and other corrosive-environment deployments requiring durable, sealed optics without compromise on video quality or frame rate.
Hanwha XNV-8080RSA RB Key Features
- 5MP Resolution at 30 fps — Captures detailed images at 5 megapixels and full frame rate, enabling identification-grade video in wide-area monitoring and forensic review scenarios.
- Motorized Varifocal Lens (2.4x zoom, 3.9–9.4mm) — Adjustable focal length from 92.1° to 38.7° horizontal field of view allows on-site lens configuration without camera removal, reducing installation time and cost.
- High-Powered IR with 164-Foot Range — Integrated IR LED array delivers illumination to 164 feet, ensuring 24/7 visibility in complete darkness while maintaining stainless steel aesthetic.
- Triple Codec Support (H.265, H.264, MJPEG) with WiseStream II — Simultaneous streaming in three industry-standard codecs with Hanwha's WiseStream II bandwidth optimization reduces storage and network load by up to 50% without sacrificing image detail.
- 120dB Wide Dynamic Range (WDR) — Advanced WDR processing handles extreme lighting transitions—such as direct sunlight reflecting off water or bright industrial lighting adjacent to shadowed areas—preserving detail in both highlights and shadows.
- IP6K9K High-Pressure Washdown Rating with Stainless Steel Housing — Rated IP6K9K for high-pressure water jets and IP67 for full submersion resistance. Stainless steel body withstands salt spray, chemical exposure, and corrosive atmospheres without degradation or discoloration.
- Advanced Video Analytics and Sound Classification — Embedded analytics including motion detection, intrusion detection, and sound classification enable intelligent event triggers and reduce false alarms in unattended or noisy environments.
- True Day/Night with Hallway View and HLC — Automatic infrared cutoff filter ensures natural color reproduction during daylight; Hallway View mode stretches vertical resolution for narrow corridors; Highlight Compensation (HLC) suppresses bright spots from direct light sources.
- Defog Detection and Digital Image Stabilization (DIS) — Defog detection activates image restoration when moisture or condensation affects clarity; DIS compensates for minor vibration or wind movement.
- Dual SD Card Slots for Local Backup — Two independent microSD card slots enable redundant onboard storage for edge recording and failover scenarios.
- Multiple Power Inputs (12VDC, 24VAC, PoE) — Flexible power options including PoE (802.3af), 12VDC, and 24VAC allow integration into diverse site power architectures.
- USB Port for Easy Installation and Configuration — Direct USB access enables firmware updates, configuration backup, and troubleshooting without network dependency.
- Extended Operating Temperature (-40°C to +55°C) — Rated for extreme cold and heat, making this unit suitable for polar regions, desert installations, and unheated/uncooled industrial spaces.
- Vandal-Resistant (IK10) — IK10 impact resistance rating withstands intentional blows and harsh handling, protecting optics and housing in high-risk environments.
- NEMA 4X Enclosure Rating — Complies with NEMA 4X corrosion-resistant enclosure standards, further assuring longevity in marine and chemical-exposure applications.
Hanwha XNV-8080RSA RB Integration & Compatibility
The XNV-8080RSA RB supports ONVIF standards, enabling seamless integration with ONVIF Profile S/T-compliant video management systems, edge recorders, and third-party NVRs from Milestone, Exacq, and other enterprise platforms. Wisenet X firmware updates and API support allow custom integration into larger security ecosystems. The camera's triple codec output permits real-time viewing and recording across bandwidth-constrained or legacy network segments.
