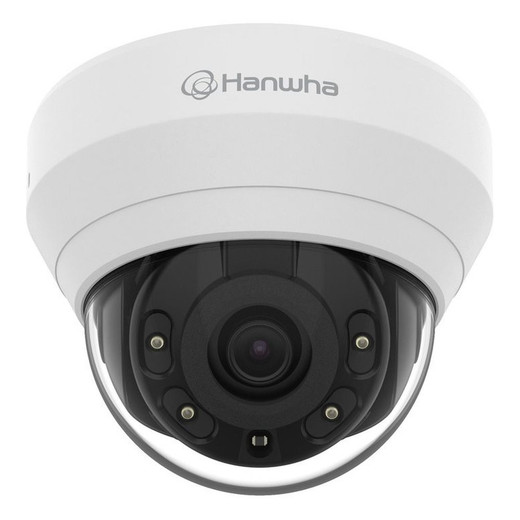

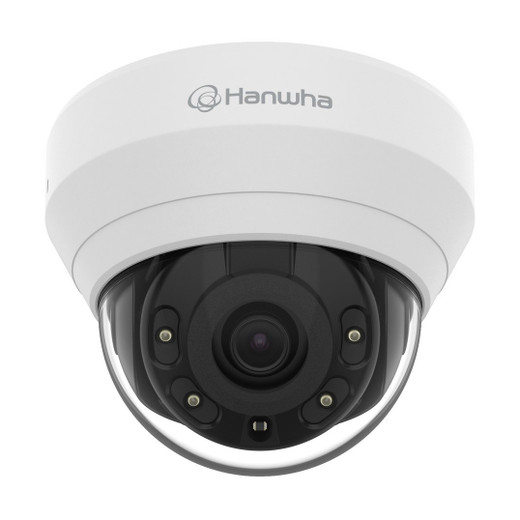

Hanwha QND-6012R RB Overview
The Hanwha QND-6012R RB is a compact 2MP fixed indoor dome network camera designed for professional surveillance deployments requiring reliable monitoring in confined spaces and hallway applications. The QND-6012R RB combines a 2.8mm fixed lens with advanced compression technology and integrated IR illumination to deliver clear video in both day and low-light conditions, making it well-suited for office buildings, retail environments, and facility monitoring where space is limited.
Hanwha QND-6012R RB Key Features
- 2MP Resolution at 30 fps — Captures 1920×1080 video at full frame rate, balancing image clarity with network bandwidth efficiency for extended recording periods.
- Advanced Triple Codec Support — Encode video in H.265, H.264, or MJPEG compression formats, enabling flexible integration with diverse VMS platforms and optimized stream bitrate control through Wisestream II technology.
- 2.8mm Fixed Focal Lens (113° Field of View) — Wide horizontal angle provides comprehensive coverage in compact indoor spaces without requiring lens adjustment or refocusing.
- 120dB Wide Dynamic Range (WDR) — Handles challenging mixed-lighting conditions such as backlit scenes or high-contrast areas, preserving detail in both bright and shadowed regions simultaneously.
- IR LED Night Vision with 65-Foot Range — Integrated infrared illumination extends monitoring capability into complete darkness, delivering usable monochrome video without supplemental lighting.
- Hallway View Mode — Dedicated display orientation for corridor and linear space monitoring, optimizing aspect ratio and field coverage for typical installation scenarios.
- Defocus Detection — Automated optical quality monitoring alerts integrators to lens contamination or mechanical misalignment, preventing degraded image capture before critical events occur.
- One-Way Audio — Integrated microphone enables audio capture and remote listening from connected NVR or management platform, supporting situational awareness and incident documentation.
- microSD Card Storage — On-camera backup recording with microSD card support allows local video retention independent of network availability, providing failsafe archive capability.
- Integrated Video Analytics — Built-in motion detection and event-driven alerting reduce false alarms and focus attention on genuine security events through intelligent scene analysis.
- Dual Power Input (PoE and 12VDC) — 802.3af PoE compatibility eliminates separate DC power runs; optional 12VDC input provides flexibility for deployments where PoE is unavailable or current-limited.
- CVBS Output — Analog video output support enables integration with legacy DVR systems or local test monitor connections during installation and troubleshooting.
Hanwha QND-6012R RB Integration & Compatibility
The QND-6012R RB supports open-platform ONVIF standards for seamless interoperability across ONVIF-compliant VMS systems including Milestone, Genetec, and third-party NVR platforms. The camera's triple codec architecture (H.265, H.264, MJPEG) accommodates legacy bandwidth-constrained networks while enabling modern codec efficiencies on current infrastructure. Ethernet 10Base-T/100Base-TX connectivity and PoE 802.3af power delivery simplify installation without requiring dedicated electrical circuits. The CVBS analog output provides direct connection to existing hybrid DVR systems during transition deployments or as emergency fallback monitoring.
