Hanwha PNM-9084QZ1 RB Overview

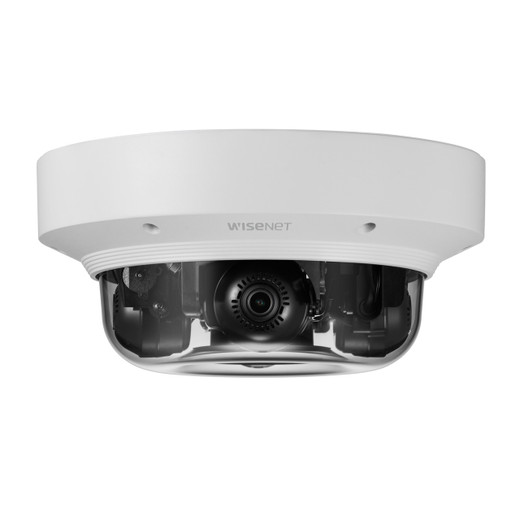

The Hanwha PNM-9084QZ1 RB is a multi-sensor, multi-directional network dome camera engineered for outdoor surveillance requiring broad coverage from a single network connection. This Rebox unit combines four 2MP imaging sensors into one compact chassis, delivering 8MP aggregate resolution at 60 fps while reducing installation complexity and infrastructure cost. Designed for harsh outdoor environments, it delivers true day/night imaging, IP66 weatherproofing, and IK10 vandal resistance with integrated video analytics and triple codec support.
Hanwha PNM-9084QZ1 RB Key Features
- Multi-Sensor Architecture: Four independent 2MP imaging sensors provide simultaneous multi-directional coverage without blind spots, replacing multiple single-sensor units with one network device and single IP address.
- 8MP Aggregate Resolution at 60 fps: Captures detailed surveillance video at 8MP resolution at 60 frames per second, enabling smooth motion capture and high-definition playback across all four sensor streams.
- Motorized Varifocal Lens with 2x Zoom: 3.0–6.0mm motorized varifocal lens with 2x optical zoom range (107° to 56.3° field of view) allows remote focal length adjustment without physical intervention, adapting coverage to site-specific requirements.
- Pan/Tilt/Rotate/Zoom (PTRZ) Control: Full remote PTRZ adjustment via network enables operators to reposition sensor view angles and zoom without field visits, maximizing operational flexibility.
- Triple Codec Support with WiseStream II: H.265, H.264, and MJPEG codec support combined with WiseStream II intelligent bitrate optimization reduces storage and bandwidth consumption while maintaining image quality.
- 120dB Wide Dynamic Range (WDR): Advanced WDR processing handles extreme lighting contrasts—direct sunlight against deep shadows—preserving detail in both bright and dark regions simultaneously.
- True Day/Night with Defocus Detection: Automatic infrared cut filter switching ensures accurate color reproduction in daylight and sensitive monochrome imaging at night; defocus detection alerts operators to lens contamination or focus drift.
- Built-in Video Analytics: Integrated analytics engine provides intelligent event detection and classification, reducing false alarms and improving investigative efficiency without requiring external analytics servers.
- Hallway View Mode: Optimized image formatting for narrow corridors and hallways, maximizing useful resolution in vertically constrained spaces.
- High Light Compensation (HLC) & Defog Detection: HLC suppresses blooming from bright point sources (vehicle headlights, streetlamps); defog detection automatically compensates for atmospheric moisture and haze.
- Bidirectional Audio: Integrated microphone and speaker enable two-way communication, supporting voice warnings, coordination, and remote site interaction.
- Quad SD Card Expansion: Four microSD card slots support onboard video storage up to multiple terabytes, providing local backup and continuous recording redundancy independent of network recording systems.
- IP66/IK10 Weatherproofing & Vandal Resistance: IP66 rating ensures complete dust and water protection (high-pressure jets); IK10 rating withstands extreme mechanical impact (20J equivalent), meeting requirements for exposed outdoor and high-risk deployment zones.
- Extended Operating Temperature Range: Rated -40°C to +55°C (-40°F to +131°F) enables reliable operation in polar and desert climates without auxiliary heating or cooling.
- HPoE Power with Injector: High Power over Ethernet with included injector supplies power and data via single network cable, simplifying installation and reducing cabling costs.
- Alarm I/O Support: 1 alarm input and 1 alarm output enable integration with external sensors, sirens, strobes, and security system controllers for coordinated incident response.
Hanwha PNM-9084QZ1 RB Integration & Compatibility
The PNM-9084QZ1 RB supports ONVIF standard protocols, enabling seamless integration with ONVIF-compliant video management systems, third-party NVRs, and enterprise surveillance platforms. PTRZ control and multi-stream video output ensure compatibility with both centralized and distributed recording architectures. Alarm I/O and bidirectional audio support enable tight coupling with access control, intrusion detection, and public address systems. HPoE power delivery with included injector simplifies deployment in locations where traditional PoE+ infrastructure is unavailable or requires high-power supplementation.
