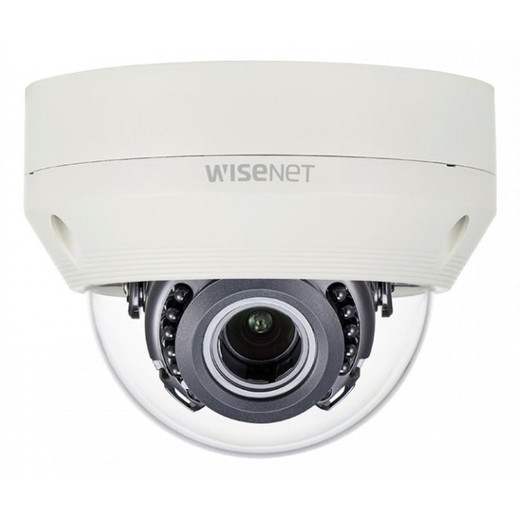

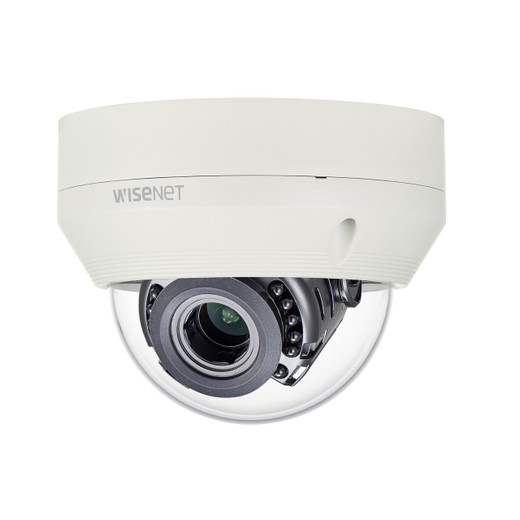

Hanwha HCV-6070R RB 2MP Outdoor Dome Camera

Hanwha HCV-6070R RB Overview

The Hanwha HCV-6070R RB is a 2MP analog surveillance dome camera engineered for outdoor deployment in hybrid analog surveillance systems. This camera delivers Full HD (1080p) resolution at 30 fps with multi-format support (AHD/TVI/CVI/CVBS), making it suitable for integrators upgrading existing coaxial infrastructure without requiring network backbone changes. The combination of true day/night operation, 120 dB Wide Dynamic Range, and 98-foot infrared coverage positions this camera for perimeter monitoring, parking areas, and outdoor facility surveillance.

Hanwha HCV-6070R RB Key Features

• 2MP Full HD (1080p) at 30 fps — Captures detailed video at 1920×1080 resolution, sufficient for facial recognition at moderate distances and license plate identification in well-lit scenes.
• 3.2-10mm Manual Varifocal Lens (3.1X zoom) — Allows field adjustable focal length for flexible deployment without lens swaps; covers wide-angle to medium telephoto coverage for fence lines, building facades, and entry points.
• 120 dB True WDR (Wide Dynamic Range) — Handles extreme lighting transitions such as bright entryways against dark interiors or backlit scenes; delivers usable video in high-contrast environments without ghosting.
• True Day/Night (IR + Mechanical Filter) — Mechanical infrared cut filter switches automatically; eliminates color washout in low light and ensures crisp monochrome performance under IR illumination.
• 98-Foot Infrared Range (30m) — Integrated IR LEDs provide effective night vision coverage to approximately 30 meters, adequate for building perimeters and large outdoor areas.
• IP66 / IK10 Rated Housing — Sealed against dust and water jets; IK10 (20J impact rating) resists vandalism from thrown objects. Suitable for exposed outdoor mounting without protective cages.
• Dual Power (24VAC / 12VDC) — Compatible with legacy 24VAC surveillance power supplies and modern 12VDC UPS-backed systems; reduces integration complexity in mixed-infrastructure environments.
• Multi-Format Analog Output (AHD/TVI/CVI/CVBS) — Selectable output format allows deployment on existing HD analog DVRs without transcoding. Backward-compatible with CVBS (standard composite) systems for phased upgrades.
• Compact Dome Form Factor — Low-profile design minimizes visual footprint and reduces wind loading on mounting brackets; suitable for discrete perimeter installations where aesthetics matter.

Hanwha HCV-6070R RB Integration & Compatibility

The HCV-6070R RB connects directly to coaxial-based HD analog DVRs supporting AHD, TVI, or CVI input channels. Installation follows standard BNC + power connector topology; no network configuration, DHCP, or ONVIF profile negotiation required. Integrators can mix this camera with existing analog and HD analog equipment on the same power distribution and recording infrastructure. Manual lens adjustment is performed on-site; no remote focusing capability is provided. For systems requiring IP-based features such as remote configuration, analytics, or centralized management, a separate encoder or hybrid DVR with network connectivity may be required. Passive coaxial runs up to 500 meters (depending on cable gauge and DVR input sensitivity) are supported.
