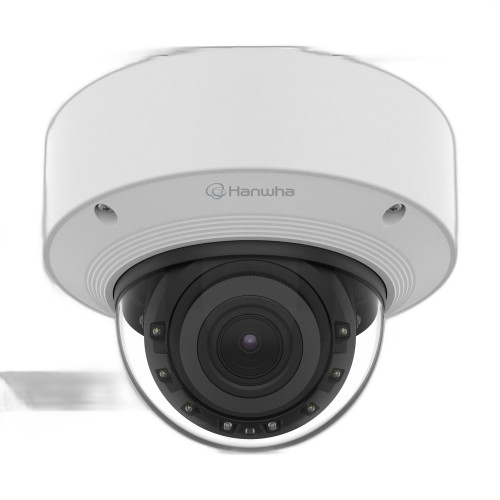

Hanwha XNV-C6083R RB Overview
The Hanwha XNV-C6083R RB is a compact outdoor network dome camera engineered for secure perimeter and facility monitoring in high-vandalism environments. Built on the Wisenet AI platform, this 2MP camera delivers real-time object detection and intelligent video analytics at the edge, reducing false alarms while maintaining 60 fps capture performance across full resolution.
Hanwha XNV-C6083R RB Key Features
- 2MP @ 60 fps — Full resolution at maximum frame rate enables smooth motion capture and forensic clarity in moderate-speed incidents.
- 4.3x motorized varifocal lens (2.8–12mm) — Covers wide-angle perimeter sweeps (119.5° FOV) to narrow telephoto views (27.9° FOV) without lens replacement, ideal for multi-depth deployments.
- 40m IR illumination with hard-coated dome — Durable optical coating resists environmental degradation; 131.2 ft IR range supports nighttime detection in complete darkness.
- Extreme WDR (150dB) — Forensic-grade wide dynamic range handles harsh backlighting, reflections on wet pavement, and mixed sun/shadow scenes without image clipping.
- AI-powered object detection — Built-in Wisenet analytics identify persons, faces, vehicles, and license plates with significantly reduced false positives versus motion detection alone.
- Intelligent Video Analytics (IVA) — Virtual line crossing, area intrusion, loitering, direction, and enter/exit events trigger alarms with minimal configuration overhead.
- Triple codec support (H.265/H.264/MJPEG) — Bandwidth-efficient H.265 reduces storage requirements by up to 50% versus H.264; MJPEG fallback ensures legacy VMS compatibility.
- Day/Night ICR mode — Automatic infrared cut filter switching maintains color fidelity in daylight and transitions to monochrome IR for night sensitivity.
- DIS with built-in gyro sensor — Digital image stabilization corrects vibration from wind or mechanical movement, critical for mounted installations.
- Vandal-resistant IK10 rated with IP67 sealed chassis — Polycarbonate dome withstands direct impact; sealed RJ-45 port prevents water ingress and corrosion in outdoor wet environments.
- Additional analytics events — Defocus detection, motion detection, tampering, fog detection, audio detection with sound classification, shock detection, and appear/disappear tracking for comprehensive site intelligence.
- USB port for simplified installation — Direct firmware updates and configuration without network access; PoE or 12VDC power flexibility supports diverse infrastructure.
Hanwha XNV-C6083R RB Operating Specifications
- Temperature Range: –40°C to +55°C (–40°F to +131°F) — reliable operation in extreme climates from arctic to desert deployments.
- Power: PoE (802.3af) or 12VDC — standard PoE injector or passive 12V supply compatible with existing PSU infrastructure.
- Metal-shielded RJ-45 connector — EMI/RFI rejection improves signal integrity in electrically noisy environments (industrial, RF transmission sites).
- Certifications: P66, IP67, NEMA4X, IK10 — suitable for outdoor perimeter, coastal salt-spray areas, loading docks, and parking structures.
Hanwha XNV-C6083R RB Integration & Deployment Considerations
The XNV-C6083R RB supports ONVIF-compliant VMS platforms (Milestone, Genetec, Exacq, and others) via standard Profile S API. Wisenet AI analytics are processed on-device, eliminating dependency on external GPU or cloud inference, reducing latency and network bandwidth. Compatible with Hanwha mounting hardware including outdoor junction boxes (e.g., SBP-050NBW cabinet). Recommended for outdoor perimeter fencing, parking lots, building exteriors, and entrance approaches where weatherproofing and impact resistance are critical. USB provisioning simplifies field installation without returning to the NOC.
