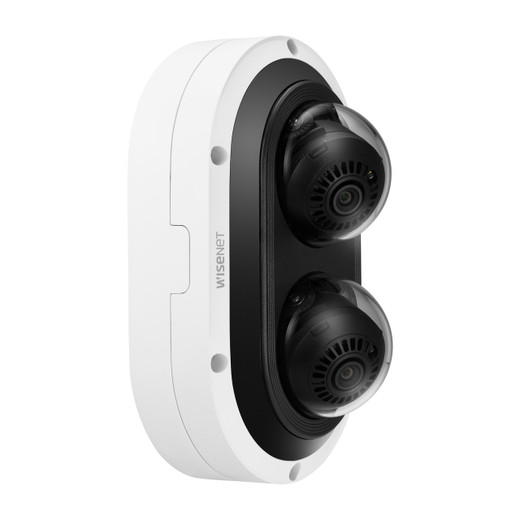

Hanwha PNM-C12083RVD RB Overview
The Hanwha PNM-C12083RVD RB is a vandal-resistant outdoor network dome camera featuring dual 6MP sensors that deliver 12MP video at 15 fps. Designed for high-security outdoor deployments requiring robust physical protection and intelligent video analytics, this camera combines a motorized varifocal lens with IR night vision, advanced AI detection, and hardened construction to withstand harsh environmental conditions and tampering attempts.
Hanwha PNM-C12083RVD RB Key Features
- Dual 6MP Sensors with 12MP Output — Captures 12MP video at 15 fps using two independent 6MP imaging sensors, enabling wide coverage with exceptional clarity and simultaneous multi-directional monitoring.
- Motorized Varifocal Lens (2x Zoom) — 3.4–6.8mm motorized varifocal optics deliver variable field of view from 95.08 degrees (wide) to 47.64 degrees (telephoto), allowing flexible framing and zoom without camera repositioning.
- 25m IR Illumination (82 ft) — Built-in infrared LEDs provide effective 25-meter night vision coverage with Day & Night ICR (Infrared Cut filter) for seamless low-light operation and continuous surveillance in complete darkness.
- Extreme WDR (120dB) — Advanced Wide Dynamic Range processing at 120dB handles extreme contrast scenes—bright backlit outdoor areas, reflective surfaces, and rapid lighting transitions—preserving detail in both shadows and highlights.
- Triple Codec Support (H.265/H.264/MJPEG) — Delivers H.265 efficiency for bandwidth-constrained networks, H.264 for universal compatibility, and MJPEG for legacy or real-time analytics integration. DIS (Digital Image Stabilization) smooths video during minor vibrations.
- AI-Powered Object Detection & Classification — Built-in AI engine detects and classifies Person, Face, Vehicle, and License Plate with event-based alerts, reducing false alarms and enabling targeted security responses.
- Intelligent Video Analytics (IVA) — Virtual line crossing, area intrusion, loitering detection, directional tracking, enter/exit counting, and appearance/disappearance events provide multi-layer behavior analysis without external servers.
- Vandal-Resistant Design (IP66/IK10) — IP66 dust and water ingress protection combined with IK10 impact resistance (20J equivalent) and hard-coated dome bubble withstand direct physical assault, weather exposure, and environmental abuse typical in outdoor high-security installations.
- Extended Temperature Range (-40°C to +55°C) — Operates reliably in extreme climates from arctic cold (-40°F) to desert heat (+131°F), suitable for global outdoor deployments without seasonal downtime.
- PoE+ Power with Secure Connectivity — Single PoE+ (802.3at) connection eliminates separate power runs and reduces installation complexity. Metal-shielded RJ-45 connector protects against electromagnetic interference and physical damage.
- Onboard Storage & Backup — Supports microSD card up to 512GB for local recording, edge analytics storage, and failover recording when network connectivity is interrupted.
- Additional Analytics & Event Detection — Defocus detection, motion detection, tampering alarm, audio detection, sound classification, and handover event triggers provide comprehensive security event capture and integration with management systems.
Hanwha PNM-C12083RVD RB Integration & Compatibility
The camera supports ONVIF standards for broad VMS interoperability and is compatible with Hanwha Wisenet platforms including OnCloud, SightMind AI analytics dashboard, and Wisenet Open Platform applications. USB port enables straightforward installation, configuration, and firmware updates. FIPS 140-2 certification ensures cryptographic security for government and regulated deployments. The dual-sensor architecture integrates with Wisenet's multi-sensor ecosystem for streamlined multi-directional coverage using fewer physical devices and IP addresses.
