Hanwha XNO-6120R/LPR RB Overview

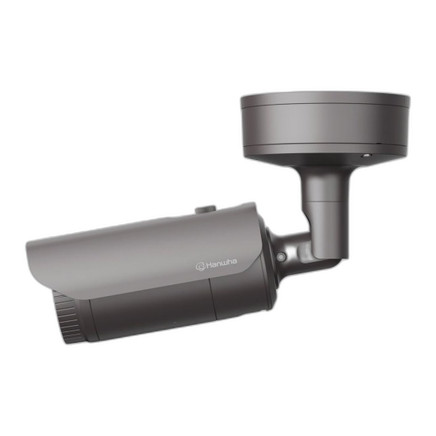

The Hanwha XNO-6120R/LPR RB is a 2MP fixed outdoor bullet camera engineered for license plate recognition (LPR) and low-speed vehicle capture in parking lots, drive-throughs, and entry gates. Built on the Wisenet X platform powered by Wisenet 5, this camera combines Full HD 1080p resolution at 60fps with a 12x optical zoom lens (5.2mm–62.4mm), enabling precise plate capture at distances suitable for monitoring vehicles up to 35 MPH. IP67 weatherproofing and IK10 vandal resistance provide rugged protection for high-traffic outdoor environments, while its compact bullet form factor suits wall and post-mount installations.
Hanwha XNO-6120R/LPR RB Key Features
- 2MP Full HD Resolution at 60fps: Captures 1920 × 1080 video at 60 frames per second, delivering frame-rate clarity essential for LPR and vehicle identification on moving targets up to 35 MPH.
- 12x Optical Zoom Lens: Varifocal zoom range of 5.2mm to 62.4mm enables operators to frame license plates and vehicle details from distances typical in parking and gate environments without digital degradation.
- Triple Codec Compression (H.265/H.264/MJPEG) with WiseStream II: Flexible codec support reduces bandwidth and storage overhead. WiseStream II intelligent compression adapts bitrate based on scene content, optimizing performance across varied lighting conditions.
- 150dB Wide Dynamic Range (WDR): Balanced exposure across high-contrast scenes—critical when capturing plates in backlit or bright sunlight conditions typical of outdoor parking lots and entry gates.
- Infrared (IR) Low-Light Capability: Built-in IR illumination extends operation into low-light and nighttime hours, maintaining plate legibility when ambient light is insufficient.
- IP67 Weatherproofing & IK10 Vandal Resistance: Sealed housing protects against dust, water jets, and rain. IK10 rating withstands impact and vandal pressure, essential for unattended outdoor installations prone to environmental stress or intentional damage.
- NEMA 4X & Wide Operating Temperature Range (-40°C to +55°C): Corrosion-resistant enclosure rated NEMA 4X ensures durability in coastal, humid, and extreme-temperature climates. Temperature range supports deployment in arctic and desert environments.
- Flexible Power Options (12VDC/24VAC/PoE): PoE (802.3af) simplifies cabling in modern IP installations, while 12VDC and 24VAC options provide backward compatibility with legacy power infrastructure common in parking and gate automation systems.
- Wisenet X & Wisenet 5 Platform: Industry-recognized network camera intelligence for reliable edge processing and analytics integration with compatible VMS and security management platforms.
- USB Port for Convenient Installation: Simplifies configuration, firmware updates, and troubleshooting during initial deployment and maintenance.
- Backbox Included: Mounting hardware supplied in-box reduces installation labor and ensures proper weatherproofing with manufacturer-tested enclosure geometry.
Hanwha XNO-6120R/LPR RB Integration & Compatibility
The camera operates as an ONVIF-compliant network device, enabling integration with ONVIF Profile S/T-compatible VMS platforms and Wisenet-native management systems. Hanwha recommends dealer training and engineer consultation before installation to ensure proper mounting location selection, power infrastructure adequacy, and integration with vehicle detection, gate control, or parking management systems. USB connectivity supports direct configuration and firmware updates. Consult the Quick Start Guide for mounting site evaluation and power circuit planning specific to your deployment.
Hanwha XNO-6120R/LPR RB Package Contents
- Hanwha XNO-6120R/LPR RB bullet camera
- Backbox mounting enclosure
