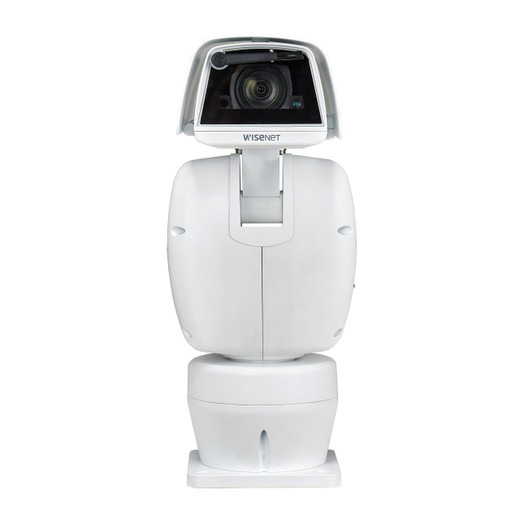

Hanwha TNU-6321 RB Rebox: 2MP Network Positioning Camera (1920 x

Hanwha TNU-6321 RB Overview

The Hanwha TNU-6321 RB is a 2MP network positioning camera built for dynamic surveillance environments requiring continuous pan capability and telephoto zoom reach. The 4.44–142.6mm varifocal lens (32x optical zoom) and 360-degree endless rotation deliver the flexibility needed to monitor large areas and identify detail from distance. Engineered for both day and night operation with ICR (infrared cut filter) switching and optional IR illumination support, the TNU-6321 RB is suited for indoor and outdoor surveillance deployments where zoom performance and continuous positioning matter.

Hanwha TNU-6321 RB Key Features

• 2MP resolution at 1920 × 1080 pixels; 60 fps H.264 and H.265 codec support for bandwidth efficiency
• 32x varifocal lens (4.44–142.6mm) for close detail capture and wide-area monitoring in a single camera
• 360-degree endless pan rotation; tilt range -90° to +40° for comprehensive coverage
• 120dB WDR (wide dynamic range) for high-contrast scenes with direct sunlight and shadow areas
• Day/Night with ICR; optional SPI-50 IR illuminator (850nm wavelength) for low-light operation
• Advanced analytics: motion detection, virtual line crossing, enter/exit, appear/disappear, tampering detection, face detection, and audio detection
• Multiple codec support: H.265, H.264, MJPEG for flexible integration and bandwidth management
• microSD/SDHC/SDXC card slot for local edge storage
• 24VAC power input; optional IR illuminator available (SPI-50, max 24W)
• Defog capability to enhance clarity in fog-prone environments

Hanwha TNU-6321 RB Optional Accessories

• SPI-50 IR Illuminator: 850nm wavelength, 25° angle, covers full field of view, max 24W @ 24VAC input, rated -40°C to +60°C, IP67 certified
