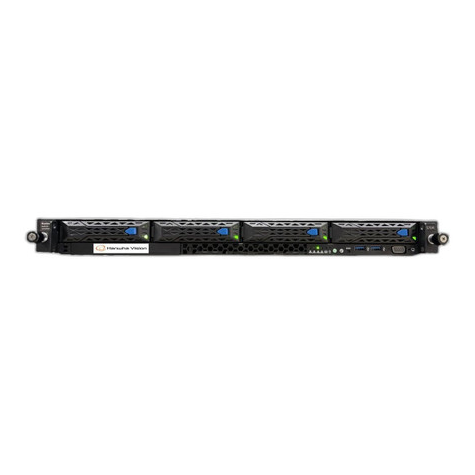

Hanwha WRR-P-E201L-32TB RB Rebox: 1U WAVE Network Video Recorder

Hanwha WRR-P-E201L-32TB RB Overview

The Hanwha WRR-P-E201L-32TB RB is a 1U rackmount network video recorder purpose-built for mid-to-large enterprise surveillance deployments. Shipped with Wisenet WAVE video management system pre-loaded and configured, this recorder delivers 470 Mbps recording throughput and supports up to 128 IP camera channels, making it ideal for security integrators and IT managers deploying comprehensive surveillance infrastructure. The unit comes factory-configured with 32TB raw storage (21TB usable after RAID 5 formatting) and includes 4 Professional Wisenet WAVE licenses, eliminating per-channel licensing complexity.

Hanwha WRR-P-E201L-32TB RB Key Features

• Compact 1U Rackmount Form Factor: 17.3" W × 19.6" D × 1.7" H shallow-depth chassis designed for dense datacenter and equipment room deployments with minimal footprint impact
• 470 Mbps Recording Bandwidth: Supports simultaneous high-bitrate ingest from up to 128 IP camera channels, enabling 4K and multi-stream recording from Wisenet and ONVIF-conformant cameras
• 32TB Raw Storage Expandable to 80TB: Four hot-swappable 3.5-inch drive bays support up to 80TB raw capacity; 21TB usable with RAID 5 formatting and 512MB NV cache for data protection and performance optimization
• Dual SSD OS Drives with RAID 1: Two 480GB enterprise-grade SSDs configured in RAID 1 redundancy ensure OS stability and system recovery; internally mounted for security
• Intel Xeon E2356G Processor with 16GB DDR4 RAM: Enterprise-class CPU and 16GB memory (2 × 8GB DDR4 modules) deliver consistent multi-stream processing and VMS responsiveness under heavy load
• Pre-Installed Wisenet WAVE VMS with 4 Professional Licenses: Full video management software and four concurrent Professional user licenses included; streamlines deployment and reduces licensing procurement overhead
• Flexible OS Support: Ships with choice of Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022 Standard, or Ubuntu 22.04 LTS, enabling integration into diverse enterprise environments
• Dual Gigabit Ethernet NICs (Standard): Two 1GbE RJ45 interfaces for network video ingest and management; optional 10GbE dual-port upgrade available for high-bandwidth scenarios
• RAID 0/1/5/6 Support: Flexible disk configuration options accommodate varying redundancy and capacity requirements; 512MB NV cache stabilizes write performance
• Redundant 450W 80 Plus Platinum Power Supplies: Dual PSUs with automatic failover ensure continuous operation; 80 Plus Platinum efficiency reduces operational heat and power costs in 24/7 duty environments
• IPMI Management and Remote Console: Integrated Lights-Out management enables out-of-band server control, firmware updates, and troubleshooting without local access
• Dual Video Outputs (HDMI + VGA): Independent HDMI and VGA outputs support simultaneous monitoring displays or local playback workflows

Hanwha WRR-P-E201L-32TB RB Integration & Compatibility

The WRR-P-E201L-32TB RB is fully compatible with Hanwha Wisenet and ONVIF-conformant IP cameras, enabling integration into multi-vendor surveillance ecosystems. Wisenet WAVE video management software is pre-installed and pre-configured with four Professional licenses, supporting up to 128 simultaneous channels. The recorder includes IPMI for enterprise-grade remote management, dual 1GbE network interfaces (with optional 10GbE upgrade available), and native support for RAID levels 0, 1, 5, and 6, allowing seamless integration into existing network infrastructure and IT governance workflows. Linux Ubuntu 22.04 LTS and Windows Server 2022 support provide compatibility with enterprise monitoring stacks and automated deployment tools.

Hanwha WRR-P-E201L-32TB RB Package Contents

• WRR-P-E201L-32TB RB 1U Rackmount Chassis
• USB Keyboard and Mouse
• Sliding Rack Rail Kit with Cable Management Arm
• Dual 450W 80 Plus Platinum Power Supplies (installed)
• Four 3.5-inch HDD Bays (empty; hard drives sold separately)
