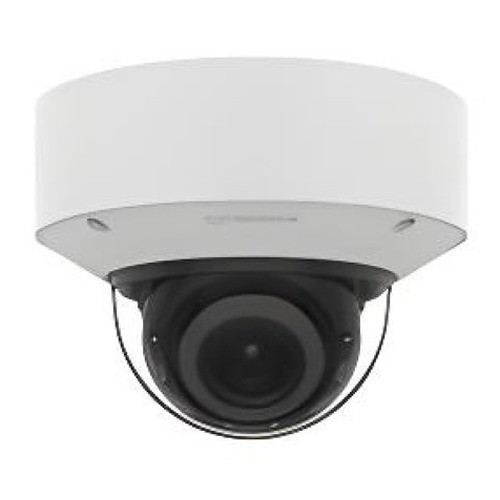

Hanwha XND-A8084RV/KEX Powered by WN9

Hanwha XND-A8084RV/KEX Overview

The Hanwha XND-A8084RV/KEX is a 5MP indoor network dome camera built on the WiseNET 9 platform, delivering AI-driven intelligence for surveillance integrators and IT managers deploying advanced video analytics. This camera combines motorized varifocal optics, 40-meter infrared night vision, and real-time object classification to support retail, enterprise, and commercial surveillance environments where both high-resolution detail and intelligent event detection are critical.

Hanwha XND-A8084RV/KEX Key Features

• 5MP resolution at 30 fps with H.265, H.264, and MJPEG codec support, enabling efficient bandwidth and storage utilization across standard and edge-recording deployments
• Motorized varifocal lens (3.3–9.3mm, 2.8x zoom) with USB-C installation port allows field-adjustable focus and zoom without opening the dome, reducing deployment time on wall or ceiling mounts
• 40-meter infrared range with Day/Night (ICR) switching and hard-coated dome bubble for reliable low-light operation in hallways, corridors, and indoor facilities without external lighting
• 120dB extreme Wide Dynamic Range (extremeWDR) captures detail in high-contrast scenes—windows, doorways, and mixed lighting—without loss of facial or object detail
• Dual-NPU WiseNET 9 engine powers on-camera AI analytics including motion and object detection, line crossing, area intrusion, slip-and-fall detection, and sound classification without external compute
• Deep object classification automatically identifies Person, Face, Vehicle, and License Plate objects; Face analytics extract Age, Gender, Mask, and Glasses attributes; Person analytics detect Gender, clothing color (Top/Bottom), and Bag presence; Vehicle analytics classify type and color
• WiseStream AI-based codec optimization dynamically adjusts bitrate based on scene complexity and motion, reducing storage and bandwidth by up to 99% compared to standard compression while preserving critical forensic detail via BestShot frame capture
• WiseNR AI noise reduction processes video through the on-board neural processor to reduce grain and compression artifacts, improving video quality at low bitrates and enabling efficient edge storage on up to 1TB microSD cards
• Business intelligence analytics include People Counting, Vehicle Counting, Crowd Analytics, Queue Management, and Heatmap generation for retail traffic analysis and facility optimization without third-party software
• Tampering detection, defocus monitoring, and fog detection combined with Audio and Shock detection provide comprehensive system health alerts and event-based recording triggers
• Dynamic privacy masking allows integrators to define masked regions directly in the camera, supporting compliance with privacy regulations and internal security policies
• Digital Image Stabilization (DIS) with built-in gyro sensor compensates for minor vibration and dome movement, maintaining sharp video in environments subject to HVAC vibration or structural movement
• PoE (802.3af Class 3) powered with maximum 9.4W consumption and typical 7.0W draw, supporting standard 30W PoE injectors and eliminating need for local power infrastructure in retrofit installations
• IP52 and IK10 rated for indoor use with protection against low-pressure water jets and vandal impact, suitable for semi-harsh environments including parking structures and industrial facilities
• Operating temperature range of -10°C to +50°C (14°F to 122°F) with humidity control via AI-driven ventilation ensures reliable performance across seasonal temperature variations without condensation-related failures
• Metal-shielded RJ-45 connector with grounding provisions reduces electromagnetic interference in installations near HVAC systems, access control panels, or high-frequency equipment

Hanwha XND-A8084RV/KEX Integration and Compatibility

The XND-A8084RV/KEX operates as an ONVIF-compliant network camera, enabling integration with standard Video Management Systems (VMS) platforms via ONVIF Profile S. CloudConnector compatibility (v2.13.04 and later) supports Hanwha Vision edge management and cloud handover workflows. The camera supports single, double, and 4" Octagon gang box mounting, as well as 12.7mm (1/2") conduit hole installations for flexible ceiling and wall deployment. Firmware version 01 is available via Hanwha Vision Americas with online help documentation included in the product support package.
