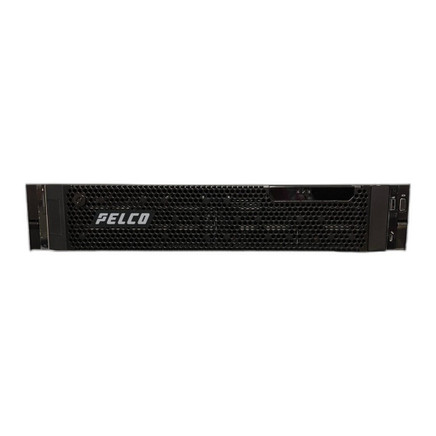

Pelco VXP-P3-96-JT 96-Channel NVR JBOD

Pelco VXP-P3-96-JT 96-Channel NVR JBOD

The Pelco VXP-P3-96-JT is the highest-capacity recorder in the VideoXpert Professional Power 3 lineup, delivering maximum usable storage through JBOD (Just a Bunch of Disks) architecture. This 2RU rackmount server supports 96 channels of video recording with enterprise-grade processing power, making it ideal for large-scale surveillance deployments where storage capacity and cost-effectiveness are priorities.

Key Features

• 96-channel recording capacity in compact 2RU form factor
• JBOD storage configuration for maximum usable capacity
• Intel Xeon Silver processor with 16 GB RAM
• Windows 10 IoT 2019 operating system
• Dual 1GbE network interfaces for reliable connectivity
• iDRAC remote management for streamlined administration
• NDAA Section 889 compliant for government procurement
• 5-year warranty coverage

Technical Specifications

The VXP-P3-96-JT employs JBOD storage architecture, which maximizes available disk capacity without on-box drive redundancy. This design means a single drive failure only impacts data on that specific drive, making it well-suited for environments with external backup strategies, replication to secondary NVRs, or applications where deep retention depth is prioritized over on-board redundancy.

For alternative protection levels: Select the VXP-P3-96-5T for RAID 5 single-drive fault tolerance, or the VXP-P3-96-6T for RAID 6 dual-drive protection.

Ideal Applications

• Large-scale commercial and industrial surveillance systems
• Multi-site enterprises with external backup infrastructure
• High-retention, cost-sensitive deployments
• Data centers and critical infrastructure monitoring
• Government and regulated facility installations

Integration and Compliance

Purpose-built for seamless integration with Pelco camera systems, this recorder supports professional installation workflows and enterprise-grade deployment standards. NDAA Section 889 compliance ensures suitability for government contracts and regulated security environments.
