Pelco VXP-P3-96-JN 96-Channel NVR Server

Pelco VXP-P3-96-JN 96-Channel NVR Server

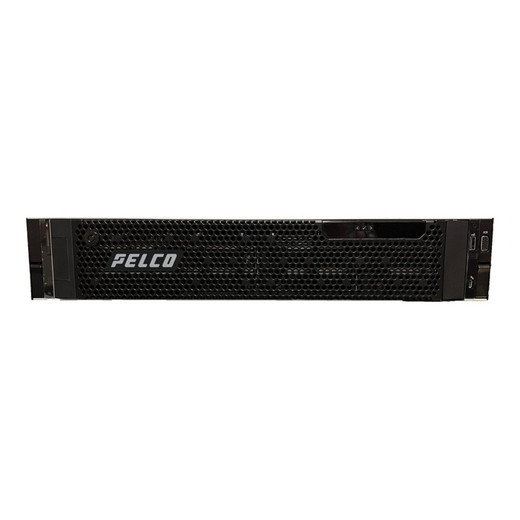

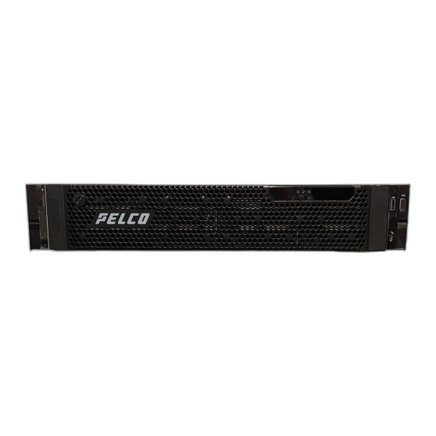

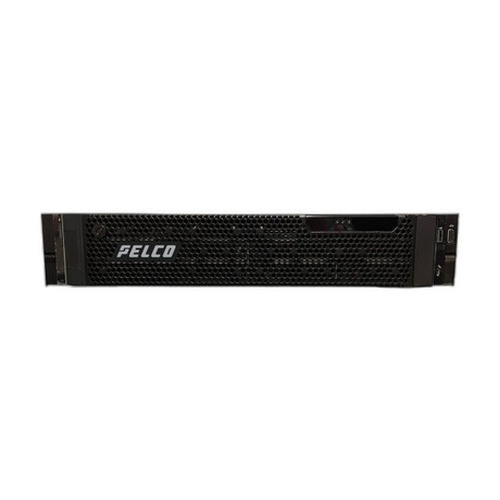

The Pelco VXP-P3-96-JN VideoXpert Professional Power 3 is a high-capacity network video recorder engineered for enterprise surveillance deployments requiring maximum channel density. This 2RU chassis NVR supports 96 channels with a diskless configuration, allowing integrators and system designers to select and install SATA storage that matches their retention and performance requirements.

Key Features

• 96-channel capacity—highest count in the VXP-P3 family
• Intel Xeon Silver processor for reliable multi-stream processing
• 16 GB RAM for stable concurrent recording and playback
• Dual 1GbE network interfaces for redundancy and bandwidth management
• iDRAC remote management for out-of-band system monitoring
• Windows 10 IoT 2019 operating system
• Supports 3.5" SATA drives in RAID 5, RAID 6, or JBOD configurations
• NDAA Section 889 compliant for federal, state, and local government use

Technical Specifications

The VXP-P3-96-JN ships without pre-installed hard drives, making it ideal for custom storage configurations. The system accepts standard 3.5" SATA drives and supports multiple RAID profiles for data protection and availability. Pre-configured alternatives are available: RAID 5 (VXP-P3-96-5T), RAID 6 (VXP-P3-96-6T), JBOD (VXP-P3-96-JT), or Windows Server variants (VXP-P3-96-5N, -6N).

Applications

Ideal for large-scale commercial, industrial, and government surveillance environments where channel density and storage flexibility are critical. Integrators benefit from the diskless design for rapid deployment across multiple installations with varied storage needs. Enterprise security operations centers leverage the 96-channel capacity for consolidated monitoring of distributed camera networks.

Warranty and Support

Backed by a 5-year warranty and supported through Pelco's global service network and authorized distributor channels. Enterprise customers receive priority technical support and streamlined RMA processes.
