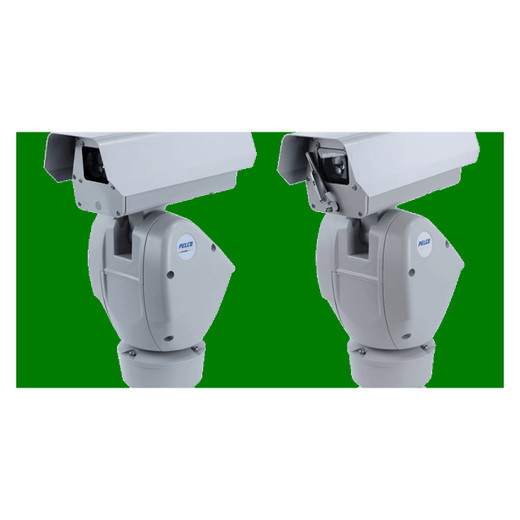

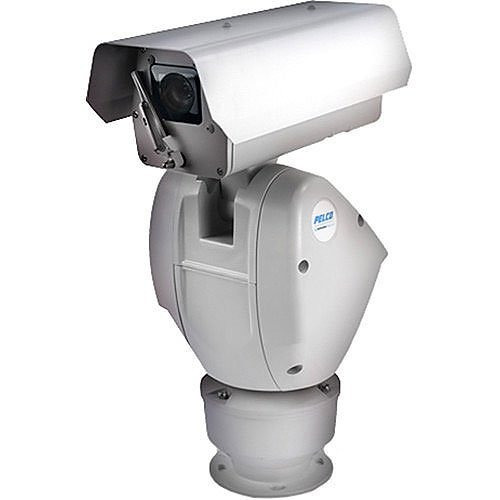

Pelco ES6230-15 Esprit 2MP 30x Outdoor PTZ Wiper AC

Pelco ES6230-15 – Professional Accessory

Pelco ES6230-15 is an Esprit 2MP outdoor PTZ dome with 30× optical zoom (4.3–129 mm), 1920×1080 at 60 fps, 130 dB WDR, integrated wiper/washer, and on-camera analytics. Powered by 100–240 Vac. The wiper/washer maintains optical clarity during rain, snow, and debris accumulation without manual intervention.

H.264/H.265 streaming. Pelco Smart Analytics onboard. NDAA Section 889 compliant. Continuous 360° pan with patrol tours and presets for automated zone monitoring in wet-climate outdoor installations.

For PoE+ powered installations with wiper, select the ES6230-12 instead. For non-wiper AC-powered models, the ES6230-05 omits the wiper assembly at lower cost. All ES6230 variants share identical 2MP optics and 30× zoom—the differences are power input and wiper inclusion.

Key Specifications

• Resolution: 2 MP
• Image Sensor: 1/2.8 inch Exmor progressive scan CMOS
• Maximum Resolution: 1920 x 1080
• Optical Zoom: 30x
• Lens Focal Length: 4.3-129 mm
• WDR: 130 dB SureVision
• Minimum Illumination: 0.1 lux color; 0.01 lux mono
• Video Compression: H.265; H.264; Motion JPEG
• ONVIF Compliance: ONVIF Profile S; Profile T; Profile G; Profile M
• Presets: 256

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 5-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
