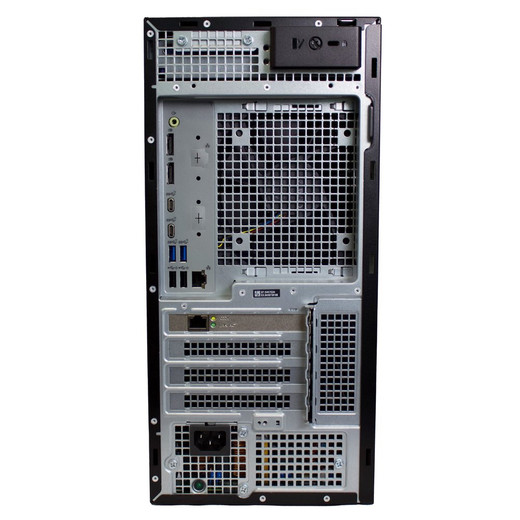

Hanwha WRT-P-3104W-8TB Mini-tower form factor WAVE Network Video

Hanwha WRT-P-3104W Overview

The Hanwha WRT-P-3104W is a compact mini-tower Wisenet WAVE Network Video Recorder purpose-built for single-site deployments or as an expansion node to existing Wisenet WAVE systems. This server runs Windows 11 IoT Enterprise 2024 or Ubuntu Linux 22.04 LTS and delivers up to 170 Mbps of recording bandwidth with expandable storage up to 16TB raw capacity. It arrives fully configured with Wisenet WAVE VMS and 4 Professional licenses, enabling rapid deployment with minimal setup overhead.

Hanwha WRT-P-3104W Key Features

• 170 Mbps Recording Bandwidth: Supports sustained multi-stream ingest across up to 64 channels on the included Wisenet WAVE platform, accommodating mid-scale IP surveillance deployments without bitrate bottlenecks.
• Pre-Installed Wisenet WAVE VMS with 4 Professional Licenses: Eliminates software licensing delays and simplifies procurement; licenses enable channel expansion and professional-grade management features out of the box.
• 14th Gen Intel Core i3 Processor and 16GB DDR4 Memory: Delivers responsive performance for real-time recording, playback, and analytics processing across simultaneous client connections and server tasks.
• Flexible Storage Configuration: Ships with 8TB raw capacity via one 3.5" SATA HDD and features three 3.5" drive bays for expansion up to 16TB total raw storage; supports enterprise-class reliability for continuous surveillance recording.
• Dual 1GbE Network Interfaces: One on-board NIC and one PCIe-based NIC provide redundancy and allow network segmentation for enhanced security and bandwidth management in multi-site or complex network topologies.
• Windows 11 IoT Enterprise 2024 or Ubuntu Linux 22.04 LTS: Choice of OS permits integration with diverse IT environments and enables custom scripting, third-party integrations, and compliance with enterprise security policies.
• 256GB M.2 SSD OS Drive: Internally mounted, dedicated operating system drive ensures fast boot and application responsiveness independent of recording-stream storage contention.
• Dual DisplayPort Video Outputs with HDMI Adapter: Supports dual-monitor configurations for operator workstations; included DP-to-HDMI adapter ensures broad display compatibility without additional adapters.
• Comprehensive USB Connectivity: Front and rear USB 3.2 Gen 2 and USB 2.0 ports, including Type-C options, facilitate external backup, mouse/keyboard input, and integration with auxiliary devices.
• 500W 80 Plus Platinum Power Supply: Efficient power delivery with broad input voltage support (100–240V AC) reduces operating cost and thermal load in climate-controlled server environments.
• Compact Mini-Tower Form Factor: 14.68" H × 6.81" W × 16.54" D footprint fits standard server racks or shelf deployments; 24 lbs weight enables straightforward installation without specialized handling equipment.
• Industrial Thermal Management: Operating temperature range 50–95°F (10–35°C) and storage range -40–149°F (-40–65°C) support deployment in temperature-controlled indoor facilities, small server rooms, and branch office environments.

Hanwha WRT-P-3104W Integration and Compatibility

The WRT-P-3104W operates as a dual-purpose server and client within the Wisenet WAVE ecosystem, supporting up to 64 channels and integrating seamlessly with existing Wisenet WAVE deployments. The platform is built on standard Windows 11 IoT or Linux, enabling integration with ONVIF-compliant IP cameras and third-party network devices. Dual Gigabit Ethernet provides network flexibility for redundancy or VLAN segmentation. USB ports and audio I/O (front 3.5mm universal audio input; rear 3.5mm audio output) permit integration with external backup systems and audio devices. The system is suitable for managed integration into enterprise surveillance architectures where Wisenet WAVE is the primary VMS platform.

Hanwha WRT-P-3104W Package Contents

• WRT-P-3104W mini-tower server unit with 8TB HDD pre-installed
• Wisenet WAVE VMS software (pre-installed)
• 4× Wisenet WAVE Professional licenses
• Keyboard and mouse
• 1× DisplayPort to HDMI adapter
