Hanwha WWT-P-7204MW WAVE Client Workstation

Hanwha WWT-P-7204MW Overview

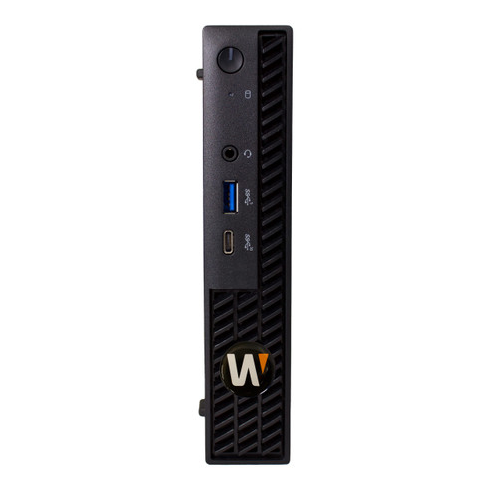

The Hanwha WWT-P-7204MW is a micro form factor client workstation purpose-built for on-site or remote access to Wisenet WAVE video management systems. This compact 1.4" x 7.0" x 7.2" device delivers enterprise-grade processing power in a chassis small enough to mount inconspicuously behind a monitor, making it ideal for security integrators deploying control stations in space-constrained environments such as retail locations, small business offices, and distributed branch facilities.

Hanwha WWT-P-7204MW Key Features

• Pre-installed Wisenet WAVE software — Ship-ready configuration eliminates deployment delays and reduces field setup time; OS options include Windows 11 IoT Enterprise LTSC 2024 or Ubuntu Linux 22.04 LTS
• 14th Generation Intel Core i7 processor with 16GB DDR4 memory — Delivers sustained performance for real-time video playback, multi-stream decoding, and operator responsiveness across live and recorded content
• 256GB M.2 SSD OS drive — Fast boot and load times with enterprise-grade storage reliability; solid-state architecture eliminates mechanical failure risk in 24/7 operations
• Dual-monitor output capability — Single 1GbE NIC supports two independent displays via VGA (640x480), HDMI, and DisplayPort outputs with included DisplayPort-to-HDMI adapter for seamless multi-monitor operator workflows
• Windows 10 IoT Enterprise LTSC operating system — Long-Term Servicing Channel (LTSC) release ensures security updates and patch management without feature bloat; purpose-built for embedded and specialized applications
• Compact micro form factor with metal and plastic chassis — 2.95 lbs (1.34 kg) design permits flexible mounting options including optional VESA mount compatibility for behind-monitor installation; measures just 1.4" x 7.0" x 7.2"
• Comprehensive I/O suite — Rear USB 3.2 Gen 1 (2x) and USB 2.0 (2x) ports plus front USB 3.2 Gen 1 (1x) and USB 3.2 Gen 2 Type-C (1x) for peripheral expansion; 3.5mm audio headset jack for two-way audio integration
• Universal AC power input with efficient consumption — Accepts 100-240V AC supply with 90W typical power draw; engineered for global deployment across variable electrical infrastructure
• Industrial-grade thermal and operational range — Operating temperature 10°C to 35°C (50°F to 95°F) and storage range -40°C to 65°C (-40°F to 149°F) with 20-80% non-condensing humidity tolerance ensures reliability in climate-controlled security operations centers
• Full regulatory certification — UL, cUL, CB, and FCC approved for safe deployment in North American installations with international compliance pathways
• Included peripherals — Ships with keyboard and mouse to support immediate operational deployment without additional peripheral procurement

Hanwha WWT-P-7204MW Integration & Compatibility

The WWT-P-7204MW is engineered as a native Wisenet WAVE client, providing direct system integration with Hanwha Vision's comprehensive video management platform. The workstation connects via single 1GbE Ethernet RJ45 for network communications and supports both Windows 11 IoT Enterprise LTSC 2024 and Ubuntu Linux 22.04 LTS operating systems, enabling integration within diverse IT infrastructure environments. Dual video output architecture accommodates split-screen monitoring, multi-source playback, and operator dashboard configurations common in security control centers. The inclusion of DisplayPort, HDMI, and VGA outputs with an adapter provides backward compatibility with legacy monitor installations while supporting current display standards.

Hanwha WWT-P-7204MW Package Contents

• Hanwha WWT-P-7204MW WAVE Client Workstation (micro form factor chassis)
• Keyboard
• Mouse
• DisplayPort-to-HDMI adapter
