Hanwha SPP-C12020P M12 Power Cable (2M)

Hanwha SPP-C12020P Overview

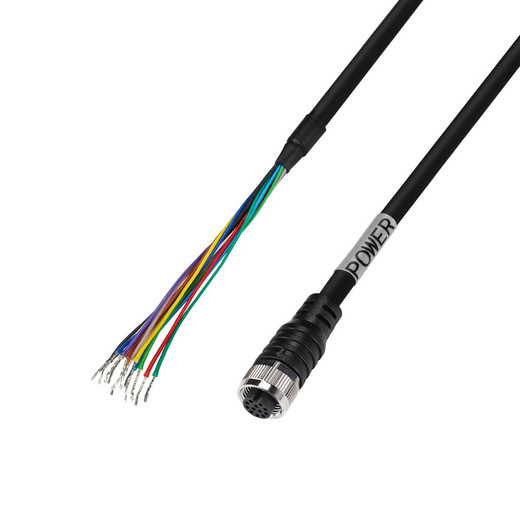

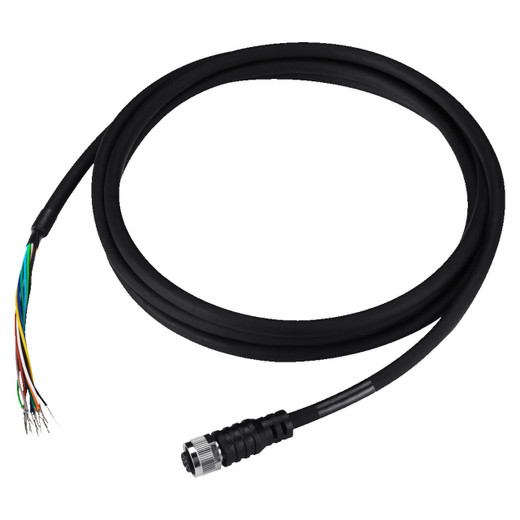

The Hanwha SPP-C12020P is a 2-meter M12 power cable designed for integration with Hanwha Vision network cameras and surveillance accessories. The cable features a female M12 straight L-coded connector rated IP67 for protection against dust, moisture, and vibration in field deployment environments.

Hanwha SPP-C12020P Connector & Cable Specifications

• 12-pin M12 female straight connector with L-coding
• IP67 protection rating (rated for outdoor and harsh indoor installations)
• Gold-plated brass contacts for reliable signal integrity
• Black TPU cable jacket with PVC core insulation
• Cable diameter: ø6.8mm ± 0.20mm
• Rated voltage: 50VAC / 60VAC / 80°C, 300V
• Current capacity: 4.6A
• Core cross-section: 5x1.5 mm² with 12 conductors (orange, brown, blue/black, green/black, black, red, violet, gray, white, green, blue, yellow)
• Mechanical lifecycle: >100 mating cycles
• Bending radius (stationary): ≥4x cable diameter; (flexible use): ≥7x cable diameter
• Rated for ≥10 million bending cycles
• Tightening torque: 0.5–0.6 Nm
• Admissible acceleration: max. 5g
• Torsional stress: ±30° per meter

Hanwha SPP-C12020P Compatible Devices

• TNS-9040IBC
• TNS-9050IBC
• TNS-9060IBC
