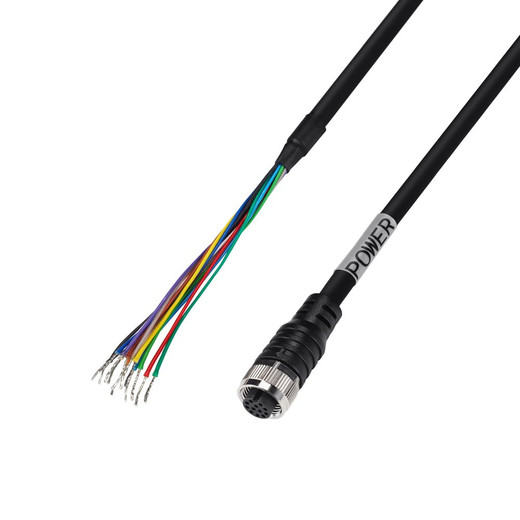

Hanwha SPP-C12100P M12 Power Cable 10M

Hanwha SPP-C12100P Overview

The Hanwha SPP-C12100P is a 10-meter M12 power distribution cable designed for professional surveillance camera installations. This L-coded 12-pin connector cable delivers reliable power connectivity in demanding security environments where dust, moisture, and vibration protection are essential.

Hanwha SPP-C12100P Specifications

• Cable length: 10 meters (32.8 feet)
• Connector type: Female M12, straight, L-coded
• Pin configuration: 12 pins
• Contacts: Brass, gold-plated for corrosion resistance
• IP67 protection rating — dust and moisture sealed
• Rated voltage: 50VAC / 60VAC / 80°C, 300V
• Maximum current: 4.6A
• Cable diameter: 6.8mm (±0.20mm)
• Cable jacket: Black PVC with 5×1.5 mm² core cross-section
• Bending radius: ≥4× diameter (stationary), ≥7× diameter (flexible use)
• Mechanical lifespan: >100 mating cycles
• Operating conditions: Rated for 10 million bending cycles, ±30°/m torsional stress, maximum 5g acceleration
• Material: PA66 connector body; brass nickel-plated coupling nut; plastic FPM/FKM seal

Hanwha SPP-C12100P Compatibility

Compatible with Hanwha Vision TNS-9040IBC, TNS-9050IBC, and TNS-9060IBC camera models. Verify M12 L-coded power connector compatibility with your specific equipment before installation.
