M12 Ethernet cable (5M)

Hanwha SPP-C08050E Overview

The Hanwha SPP-C08050E is a 5-meter M12-to-RJ45 Ethernet cable designed for industrial and outdoor network video deployments. This CAT6 S/FTP cable delivers reliable connectivity for Hanwha Vision security cameras and network devices in demanding environments, with full IP68 protection against dust and moisture ingress.

Hanwha SPP-C08050E Connectivity and Environmental Specifications

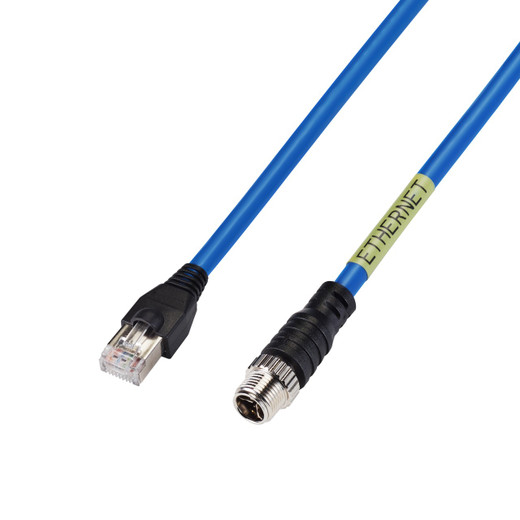

• M12 8PIN x-coded connector (camera end) to RJ45 MT 8P8C male (system end)
• CAT6 S/FTP construction with dual shielding: 125% coverage s/d1 aluminum + 65-70% coverage braid s/d2
• 5M (16.4 ft) length with 6.5mm outer diameter for flexible routing
• IP68 rated—full protection against dust and moisture in outdoor or wet installations
• Snagless connector design prevents accidental disconnection
• Operating temperature range: -10°C to 50°C (-14°F to 122°F)
• Bandwidth: 250 MHz per TIA; tested to 500 MHz maximum
• 1 Gbps network compatibility; IEEE 802.3bt PoE++ compliant (51W @ device)
• PVC/PE jacket with CMR-LP rating for indoor/outdoor use
• Gold-plated M12 contacts for corrosion resistance
• Bare copper 4-pair conductors (4×2×7×0.20mm, AWG24)

Hanwha SPP-C08050E Regulatory and Compliance

• UL Listed and cUL Listed
• CE marked, RoHS, REACH, and UKCA compliant
• Trade Agreements Act (TAA) eligible
• Lifetime limited warranty
