M12 Ethernet cable(2M)

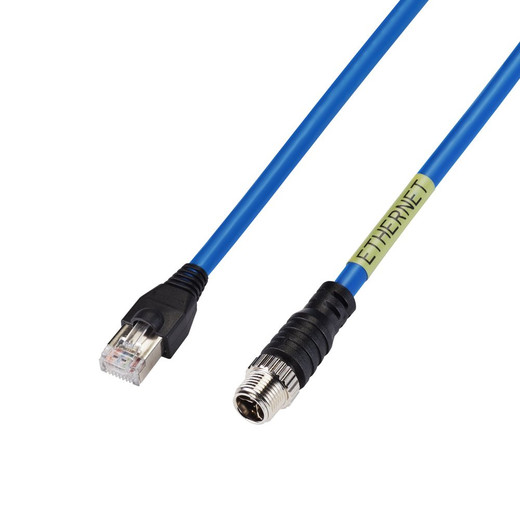

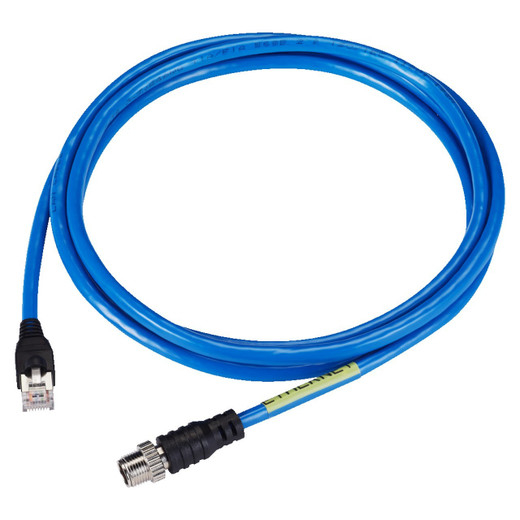

Hanwha SPP-C08020E Overview

The Hanwha SPP-C08020E is a 2-meter M12-to-RJ45 Ethernet cable designed for professional IP surveillance and industrial network deployments. This CAT6 S/FTP cable delivers 1 Gbps network connectivity while supporting PoE++ (802.3bt) power delivery up to 51W at the device end, making it suitable for powered IP cameras and edge devices that require both data and electrical supply over a single cable run.

Hanwha SPP-C08020E Connectivity & Environmental Protection

• M12 8-pin x-coded connector (camera end) to RJ45 MT 8P8C male connector (system end)
• IP68 rated — fully sealed against dust, moisture, and vibration for outdoor and harsh industrial environments
• Snagless connector design reduces snagging risk during installation
• Gold-plated contacts ensure reliable signal integrity and corrosion resistance
• CMR-LP PVC/PE cable jacket rated for use in plenum and non-plenum spaces

Hanwha SPP-C08020E Technical Specifications

• Cable Type: CAT6 S/FTP (fully shielded twisted pair) with dual shielding — aluminum foil (125% coverage) and 65–70% braid coverage
• Conductor: Bare copper, 4 pair, AWG24, 4×2×7×0.20mm
• Cable Outer Diameter: 6.5mm
• Bandwidth: 250 MHz per TIA standard; tested to 500 MHz maximum
• Network Compatibility: 1 Gbps IEEE 802.3bt PoE++
• Power Delivery: 60W @ source, 51W @ device
• Operating Temperature: −10°C to 50°C (14°F to 122°F)
• Operating Humidity: 0–90% RH non-condensing
• Certifications: UL Listed, CE, RoHS, IEEE 802.3bt, REACH, UKCA, Trade Agreements Act (TAA) compliant
