M12 Ethernet cable(10M)

Hanwha SPP-C08100E Overview

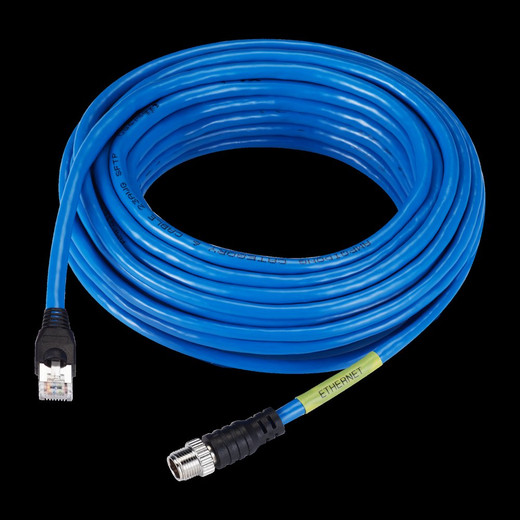

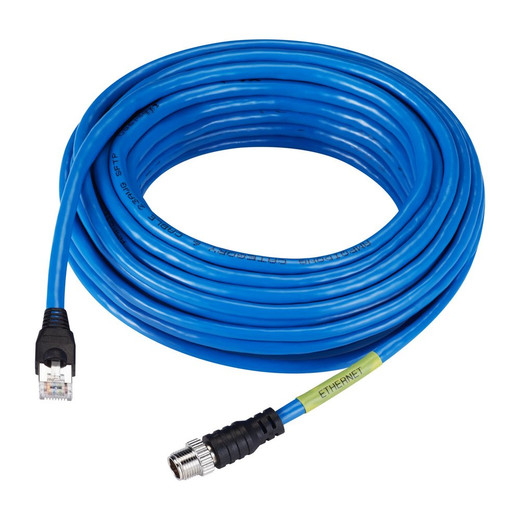

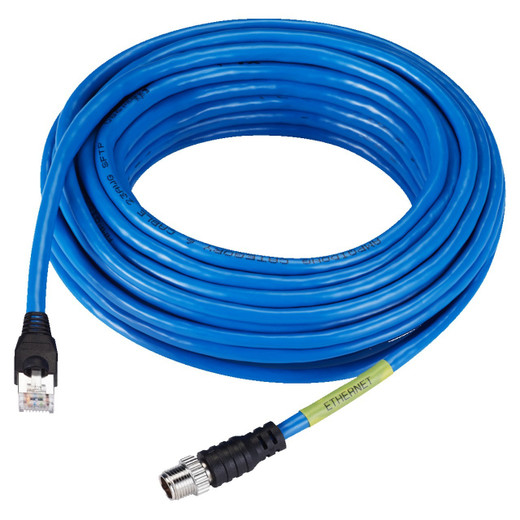

The Hanwha SPP-C08100E is a rugged M12 Ethernet cable designed for industrial and outdoor surveillance deployments. This 10-meter (32.8 ft) CAT6 cable connects M12 x-coded camera connectors to standard RJ45 system endpoints, supporting full PoE++ (802.3bt) power delivery and Gigabit network speeds with extended bandwidth capacity.

Hanwha SPP-C08100E Network & Physical Specifications

• CAT6 S/FTP construction with dual shielding (aluminum foil 125% coverage; braid 65–70% coverage)
• M12 male x-coded connector to RJ45 MT 8P8C male, gold-plated contacts
• Supports up to 500 MHz tested bandwidth; 1 Gbps network compatibility
• PoE++ power delivery: 60W source, 51W at device (IEEE 802.3bt compliant)
• IP68 rated for dust and moisture protection; snagless connector design
• Blue PVC/PE cable jacket (CMR-LP rated); 6.5 mm outer diameter
• Operating temperature: −10°C to +50°C; humidity 0–90% RH non-condensing
• Bare copper conductors (AWG24, 4×2×7×0.20 mm); EIA/TIA 568B wiring configuration

Hanwha SPP-C08100E Compliance & Certifications

• UL Listed; cUL Listed
• CE, RoHS, REACH, UKCA, TAA compliant
• IEEE 802.3bt PoE++ standard
