i-PRO WV-U2540LA RB Overview

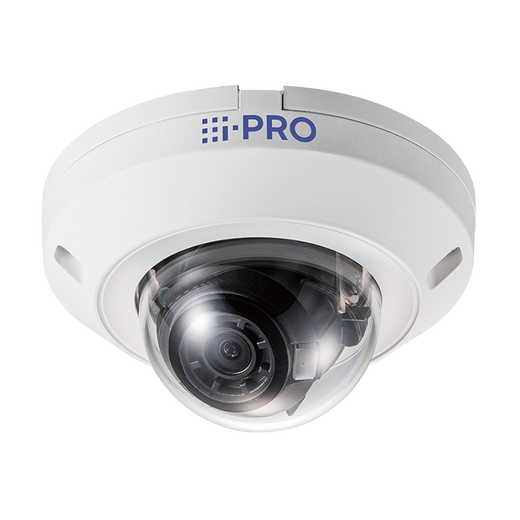

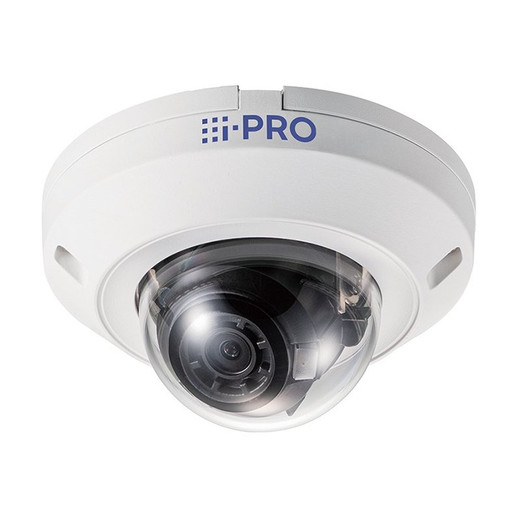

The i-PRO WV-U2540LA RB is a compact 4MP outdoor network dome camera designed for secure perimeter and facility surveillance. This rebox unit delivers robust image capture across challenging lighting conditions with built-in infrared LED illumination, intelligent processing, and vandal-resistant construction. The WV-U2540LA RB integrates easily into existing enterprise VMS and NVR deployments with standard ONVIF protocol support and H.265/H.264 codec flexibility.
i-PRO WV-U2540LA RB Key Features
- 4MP Resolution at Full Frame Rate — Captures 2688×1520 pixel video at up to 30 fps in H.265 and H.264 modes, with additional resolution options including 2560×1440, 1920×1080, 640×360, and 320×180 for flexible streaming and recording strategies.
- Advanced Low-Light Performance — Delivers color images down to 0.3 lx (50IRE, F2.0, 1/30s, AGC:11) and monochrome at 0 lx with built-in IR LED, enabling reliable surveillance from dusk through complete darkness without external lighting infrastructure.
- 102dB Super Dynamic Range — i-PRO's proprietary Super Dynamic technology reconstructs detail in both shadow and highlight regions simultaneously, critical for parking structures, loading docks, and mixed interior-exterior viewing zones.
- Intelligent Auto (iA) Processing — Automatic exposure, white balance, and noise reduction adapt in real-time to scene changes, reducing manual tuning and ensuring consistent image quality across seasonal and weather variations.
- H.265 Smart Coding with GOP Control — Achieves high compression efficiency while maintaining forensic image quality; supports constant bit rate, VBR, frame rate, and best-effort transmission modes with advanced GOP frame sequencing for bandwidth-constrained networks.
- Vandal-Resistant Dome Housing — Compact dome form factor with weatherproofed construction for outdoor mounting; protects optics and electronics from impact, tampering, and environmental exposure in semi-public and outdoor facility settings.
- 3.2mm Fixed Focal Length Lens — Delivers approximately 100° horizontal field of view; fixed lens eliminates mechanical PTZ complexity and maintenance burden while providing consistent coverage area for perimeter and entrance surveillance.
- Built-In Infrared LED — Integrated near-infrared illumination extends effective surveillance range into complete darkness without auxiliary IR projectors, simplifying outdoor deployments and reducing infrastructure costs.
- Pre-Installed Secure Certificate & End-to-End Encryption — GlobalSign® certificate enables device authentication and HTTPS/encrypted communication; supports 802.1X network authentication and data encryption to counter advanced persistent threats and meet enterprise cybersecurity requirements.
- ONVIF Profile G, S, T Compliance — Guarantees interoperability with mainstream VMS platforms (Milestone, Genetec, Exacq, etc.) and NVR systems; eliminates vendor lock-in and simplifies system scaling and future upgrades.
- Corridor Mode — Supports 90° and 270° image rotation for wall-mounted and ceiling-mounted installations, enabling flexible lens orientation and optimal coverage in hallways, stairwells, and transitional spaces.
- Multi-Stream Encoding — Simultaneously outputs up to three independent video streams at different resolutions and frame rates (Stream 1: 2688×1520@30fps, Stream 2: 640×360@30fps or 1920×1080@30fps, Stream 3: 640×360@10fps), enabling simultaneous local recording, remote monitoring, and analytics processing on separate infrastructure tiers.
- microSD/SDHC Card Recording — Supports up to 512GB microSDXC memory cards with manual, alarm-triggered (pre/post), and scheduled recording modes; provides local edge recording for network resilience and extended retention without centralized NVR dependency.
- NDAA Compliant — Meets U.S. Federal Acquisition Regulation (FAR) cybersecurity requirements for government and defense sector deployments; certified for use in restricted procurement environments.
- Up to 14 Simultaneous Users — Handles concurrent connections from multiple monitoring stations, mobile clients, and analytics platforms without quality degradation on standard enterprise networks.
i-PRO WV-U2540LA RB Integration & Compatibility
The WV-U2540LA RB integrates with ONVIF Profile G, S, and T–compliant VMS and NVR systems, including Milestone XProtect, Genetec SecurityCenter, Exacq ExacqVision, and numerous third-party platforms. IPv4 and IPv6 network stacks support TCP/IP, UDP, HTTP, HTTPS, RTSP, RTP, SMTP, DNS, NTP, SNMP (v1/v2/v3), DHCPv6, MQTT, LLDP, and 802.1X authentication. The camera supports unicast and multicast transmission modes with both manual and automatic port configuration. Secure certificate pre-installation simplifies SSL/TLS deployment and reduces initial configuration overhead. Dome mounting brackets support standard ceiling and wall installations; vandal-resistant construction eliminates exposed fasteners typical of bullet and turret designs, reducing tampering risk in unsupervised outdoor and semi-public areas.
