i-PRO WV-S2136LA Overview
The i-PRO WV-S2136LA is a 2MP (1080p) indoor dome network camera purpose-built for secure, intelligent surveillance in offices, retail, and institutional environments. This S-series camera integrates an on-board AI engine capable of running up to two edge AI analytic applications, enabling real-time decision-making without reliance on external processing. The WV-S2136LA combines low-light capability, integrated infrared illumination, and hardware-based cryptographic security in a compact form factor designed for ceiling or wall deployment.
i-PRO WV-S2136LA Key Features
- 2MP 1080p Resolution with 1/2.8" CMOS Sensor: Captures sharp, detailed images at 1920×1080 resolution across multiple frame rates (60, 50, 30, 25, 15, and 12.5 fps modes). Scanning area of 5.57mm (H) × 3.13mm (V) supports both color and monochrome (ICR) operation for continuous 24/7 monitoring.
- Multiple Compression Formats: Supports H.265, H.264, and MJPEG encoding, enabling bandwidth optimization and compatibility across diverse network video management systems and legacy infrastructure.
- Low-Light Performance: Achieves 0.007 lux in color mode (30 IRE, F1.3, 1/30s, AGC:11) and 0.0006 lux with extended shutter (16/30s), with switchable black and white operation delivering 0 lux performance when IR LED is active. Fog compensation and adaptive black stretch enhance visibility in challenging indoor lighting conditions.
- Built-in IR LED Illumination: Integrated infrared LEDs provide 70 meters (230 feet) of illumination for complete nighttime surveillance without supplementary lighting infrastructure. On/off control and variable intensity management via firmware configuration.
- Edge AI Engine with Multi-App Support: On-camera AI processing supports deployment of up to two analytic applications simultaneously (e.g., people detection, object classification, scene analytics), reducing bandwidth overhead and enabling autonomous alerts without backend servers.
- 144 dB Dynamic Range: i-PRO Super Dynamic on/off with adjustable levels (0-31 range) delivers maximum 144 dB dynamic range, ensuring usable detail in high-contrast scenes with bright windows or light sources. Backlight compensation (BLC) and highlight compensation (HLC) modes available for additional scene balancing.
- FIPS 140-2 Level 3 Hardware Security: Integrated EdgeLock® SE050F secure element (NXP Semiconductors) provides cryptographic key storage, signed firmware boot verification, and tamper detection—satisfying federal security baseline requirements and NDAA compliance mandates.
- NDAA Compliant Camera: Meets U.S. Department of Defense supply chain security requirements, appropriate for federal, critical infrastructure, and defense contractor deployments.
- Flexible Shutter and Gain Control: Supports fixed and variable shutter speeds (1/60 to 1/10000) and automatic gain control (AGC) with user-adjustable levels. Maximum shutter extends to 16/30s (or 16/25s in 50 Hz mode) for extreme low-light capture; maximum gain ranges are user-configurable for optimization across lighting conditions.
- Motion and Scene Detection: Integrated video motion detection (VMD) and scene change detection support event-triggered recording and alerting. Audio detection and AI sound classification capabilities enable multi-modal event recognition.
- White Balance and Color Processing: Automatic white balance (ATW1, ATW2, AWC modes) and i-PRO Intelligent Auto on/off ensure consistent color rendition across varying light temperatures. Digital noise reduction (DNR) selectable to balance image smoothness with detail preservation.
i-PRO WV-S2136LA Physical Specifications

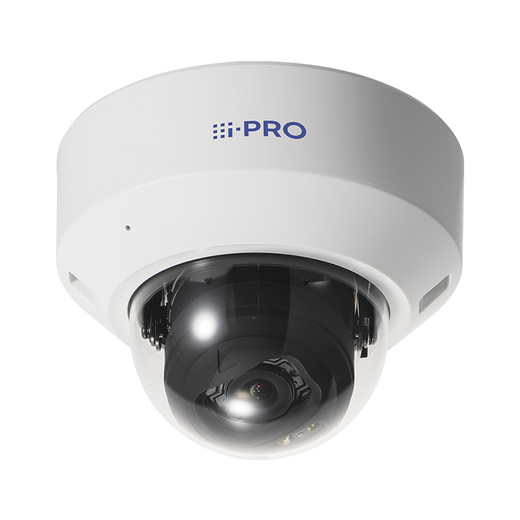

The camera measures ø129.5 mm × 101 mm (height), with a 40 mm dome radius and weighs approximately 470 grams (1.04 lbs). The main body is constructed of white ABS resin with a clear acrylic dome section, designed for unobtrusive indoor ceiling or wall mounting. Compact footprint minimizes visual impact in aesthetic-conscious environments while maintaining full optical and thermal performance.
i-PRO WV-S2136LA Integration & Compatibility
The WV-S2136LA is ONVIF-compliant, enabling integration with any standards-based network video management system, recording platform, or third-party video analytics tool. Support for ONVIF profiles ensures cross-vendor interoperability and future-proof device management. Audio input capability allows integration of external microphones or audio monitoring feeds. The camera operates as a standard 10Base-T/100Base-TX Ethernet network device, compatible with existing IP surveillance infrastructure and Power over Ethernet (PoE) delivery where applicable. Rebox (RB) designation indicates this unit is supplied in i-PRO's repackaging and may include refurbished or open-box components; verify condition and warranty terms with your distributor.
