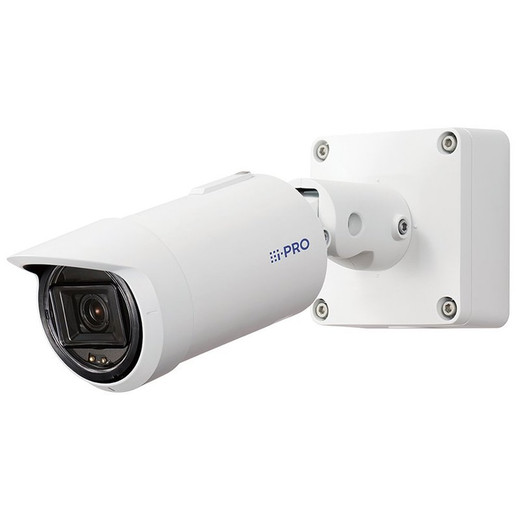

i-PRO WV-S1536LTA RB Overview
The i-PRO WV-S1536LTA RB is a 2MP (1080p) outdoor network box camera engineered for demanding surveillance environments requiring vandal resistance and integrated artificial intelligence. This bullet-form camera combines a 1/2.8-inch CMOS sensor with built-in IR illumination (70m range), advanced dynamic range processing, and dual Edge AI analytics engines to deliver reliable identification and detection in diverse lighting conditions. The WV-S1536LTA RB is designed for outdoor deployments where durability, security compliance, and intelligent video analysis are critical requirements.
i-PRO WV-S1536LTA RB Key Features
- 2MP 1080p Resolution with 1/2.8-inch CMOS Sensor: Delivers 1920×1080 video capture with excellent detail in outdoor scenes; 5.57mm (H) × 3.13mm (V) scanning area enables compact optical design without sacrificing image quality.
- Dual Edge AI Analytics Engine: Supports up to 2 concurrent Edge AI analytic applications running directly on the camera, eliminating reliance on backend servers for real-time threat detection, object tracking, and behavioral analysis.
- Extended IR Night Vision: Built-in IR-LED array delivers 70m (230 ft) illumination range, enabling color identification at close range and monochrome surveillance across extended distances in complete darkness (0 lux with IR enabled).
- Advanced Dynamic Range Processing: Maximum 144 dB dynamic range with Super Dynamic mode (configurable level 0–31) plus Adaptive Black Stretch, intelligent backlight/high-light compensation, and fog compensation ensure usable video across extreme contrast scenes and adverse weather.
- IP66 and IK10 Certification: Rated for complete dust protection and jet water ingress, with IK10 impact resistance (20 joules) to withstand vandalism attempts; designed for exterior mounting in unprotected environments.
- Flexible Video Compression: H.265, H.264, and Motion JPEG encoding at variable frame rates (60/50/30/25/15/12.5 fps) enable adaptive bitrate streaming and storage efficiency across diverse network conditions and recording systems.
- Intelligent Exposure and Color Control: Intelligent Auto exposure on/off, selectable white balance modes (ATW1, ATW2, AWC), adjustable shutter speeds from 1/10000s to 16/30s, and gain control optimize image quality across day/night transitions and varied scene conditions.
- Built-in FIPS 140-2 Level 3 Secure Element: EdgeLock® SE050F security coprocessor from NXP Semiconductors provides cryptographic key storage and secure firmware authentication, protecting against tampering and unauthorized modifications.
- NDAA Compliance: Certified compliant with the National Defense Authorization Act, meeting U.S. federal procurement requirements for sensitive government and critical infrastructure deployments.
- PoE (IEEE 802.3af) and DC Power Options: Accepts PoE Class 0 (approx. 10.6W) or DC12V power (approx. 10.8W), enabling flexible installation without dedicated power infrastructure.
- Wide Operating Temperature Range: Functional from −40°C to +60°C (−40°F to +140°F), with power-on threshold of −30°C to +60°C, supplemented by integrated temistor heating element and moisture absorption gel for anti-condensation in harsh climates.
- Compact Weatherproof Housing: Aluminum die-cast and resin construction with clear polycarbonate front panel and stainless-steel corrosion-resistant fasteners; dimensions 133mm (W) × 133mm (H) × 383mm (D); approx. 2.4 kg weight supports flexible mounting on walls, poles, and corners.
i-PRO WV-S1536LTA RB Integration & Compatibility
The WV-S1536LTA RB is an ONVIF-compliant network camera compatible with ONVIF Profile S and T-enabled VMS platforms including Milestone XProtect, Exacq, and third-party NVR/VSaaS systems. Monitor output via pin jack (NTSC/PAL selectable) supports legacy integration with analog-based control systems during commissioning. Compliance with FCC Part 15 Class A, ICES-003 Class A, EN55032 Class A, and EN55035 ensures electromagnetic compatibility in enterprise environments.
