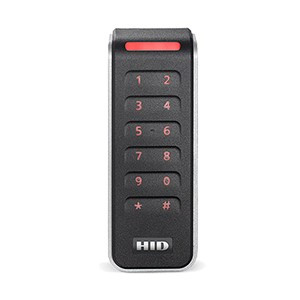

HID 20KNKS-T3-000000 Signo 20K T3 Reader

HID 20KNKS-T3-000000 Signo 20K Access Control Terminal with Keypad

Overview

The HID 20KNKS-T3-000000 is a professional-grade access control terminal combining credential reading, PIN entry, and multi-protocol communication in a compact form factor. The Signo 20K terminal integrates seamlessly into enterprise and mid-scale access control deployments, supporting both wireless and wired connectivity. This model features black housing with silver trim, providing a clean aesthetic suitable for corporate environments. Engineered for flexibility, the 20KNKS-T3-000000 accommodates multiple credential types and communication standards essential for heterogeneous security infrastructure.

Key Features

• Multi-Credential Support: Compatible with FELICA (32-byte MSB) and CEPAS card formats, enabling deployment across diverse cardholder populations without hardware replacement.
• Wireless Connectivity: Integrated Bluetooth Low Energy (BLE) enables wireless operation and commissioning, reducing installation complexity in retrofit applications.
• Wiegand Protocol: Native Wiegand support ensures compatibility with legacy and current-generation access control panels, simplifying integration with existing infrastructure.
• CSN Suppression: Card Serial Number suppression capability enhances security posture by preventing unauthorized card enumeration.
• Red Illuminated Keypad: Backlit keyboard with red illumination supports PIN entry and system diagnostics in low-light conditions, with accompanying red buzzer for user feedback.
• Visual and Audible Indicators: Green flash LED combined with buzzer notification provides clear grant/deny feedback. Audible buzzer (BZR) confirms all transactions.
• 4-Byte Messaging: 4-byte message protocol support aligns with standard access control system requirements.
• Configurable Output: Green flash LED and red keyboard backlighting are independently controlled, allowing customization for branding and operational preferences.
• Compact Form Factor: Dimensionally optimized for wall mounting and standalone pedestal installation without requiring extensive infrastructure modification.
• Credential Format Length: Configured for 13-character credential length with DF (default) mapping scheme, supporting standard enterprise card encoding.

Integration & Compatibility

The 20KNKS-T3-000000 operates as a peripheral reader or standalone terminal within access control ecosystems. Wiegand output connects directly to compatible panels and controllers. BLE connectivity enables wireless enrollment and status monitoring through compatible mobile or gateway solutions. The terminal supports both 32-byte MSB FELICA and CEPAS CAN encoding standards, making it suitable for global deployments where region-specific card types predominate. CSN suppression prevents card cloning attacks by stripping raw card IDs from transmitted data, a critical requirement in high-security environments. The red keypad and green flash LED combination provides intuitive user feedback consistent with IEC and North American access control conventions.

Operational Specifications

The device ships individually (EACH, Packaged Quantity: 1) and includes standard cable connections compatible with typical access control infrastructure. No additional power module is required for standard wired deployment. The red keyboard backlighting, green LED flash, and buzzer operate on the same power source as the reader, simplifying power distribution planning. Configuration defaults to DF mapping scheme with IPM (Intelligent Power Management) disabled and Velocity checking disabled, allowing immediate deployment without additional commissioning steps.

Jerry Tildsen

I have evaluated the HID 20KNKS-T3-000000 during planning phases for mixed-credential enterprise deployments. This terminal addresses a real integration challenge: supporting both legacy Wiegand infrastructure and modern BLE commissioning without requiring panel replacement. The CSN suppression and multi-format card support (FELICA/CEPAS) make this a practical choice for organizations managing card stock across regions or upgrading systems incrementally.

Technical Highlights:

• Protocol Flexibility: Wiegand output with 4-byte messaging supports direct connection to most mid-range and enterprise-class panels. BLE wireless mode eliminates retrofit cabling in environments where running new RS-485 or dedicated control wiring is impractical.
• Credential Security: CSN suppression prevents raw card serialization attacks. Support for both FELICA (Japan/Asia-Pacific) and CEPAS (Singapore/regional) encoding means you're not locked into a single card vendor or encoding scheme.
• User Feedback Design: Red backlit keypad + green LED flash + buzzer creates redundant feedback channels, reducing user confusion and support calls in high-throughput areas like office lobbies or data center access points.

Deployment Considerations:

• Verify your panel's Wiegand input supports 4-byte message format before ordering. Older 2-byte or 3-byte legacy panels require firmware updates or intermediate converters.
• BLE requires a compatible gateway or mobile commissioning tool. Confirm your access control software vendor provides BLE enrollment utilities; not all platforms ship with wireless support enabled by default.
• The 13-character credential format with DF mapping is the default configuration. If your deployment uses non-standard card encoding or facility code schemes, request pre-configuration or plan for on-site setup time.
• CSN suppression is enabled on this SKU. If you need raw card ID transmission for legacy system integration, contact HID support for an alternate configuration.

This terminal is best suited for integrators managing mixed-credential estates or organizations building modular access systems where wireless enrollment and incremental upgrades are operational priorities. It's a solid choice where Wiegand compatibility is non-negotiable but BLE future-proofing is desired.
