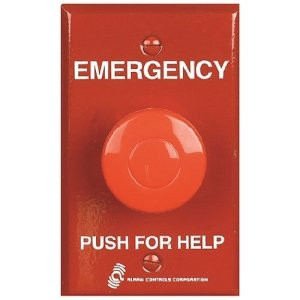

HES PBM-1-4-LUC Red Plate Momentary Push Button

HES PBM-1-4-LUC Red Plate Momentary Push Button

The HES PBM-1-4-LUC is a momentary push button switch engineered for access control and emergency exit applications. Featuring a distinctive SG red plate finish, this switch delivers reliable, repeatable actuation with dual contact functionality—one normally open (N/O) and one normally closed (N/C) contact set. The robust lift mechanism ensures secure engagement, making it ideal for high-traffic security installations and emergency release circuits.

Key Features

• Momentary push button design for transient control signals
• SG red plate finish for high-visibility identification
• Dual contact configuration (1 N/O + 1 N/C) for flexible circuit integration
• Secure lift mechanism for repeatable, reliable actuation
• Compact push button form factor for panel-mount applications

Technical Specifications

• Contact Type: Momentary switch with N/O and N/C contacts
• Plate Finish: SG red (standard identification color for emergency/manual release)
• Voltage Rating: Compatible with 12V and 24V DC control circuits
• Installation: Indoor rated for control rooms, entry points, and facility interfaces
• Application: Electric strike systems, door control interfaces, and emergency egress circuits

Applications

The PBM-1-4-LUC integrates seamlessly into HES electric strike installations and modern access control architectures. It is commonly deployed in secured facility entry points, control room interfaces, and emergency egress systems where momentary contact switching is required. The dual contact design enables use in circuits requiring both activation and status feedback or alternative logic configurations.
