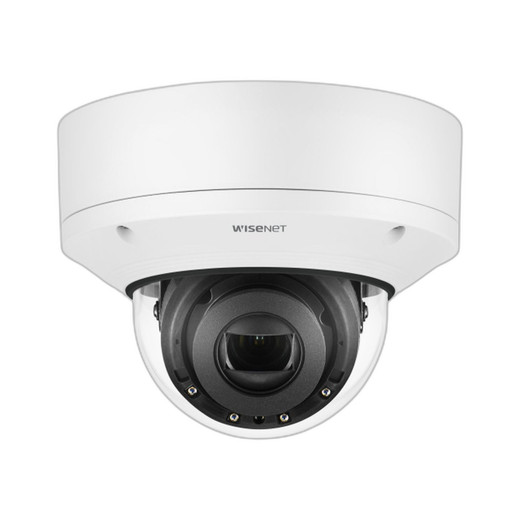

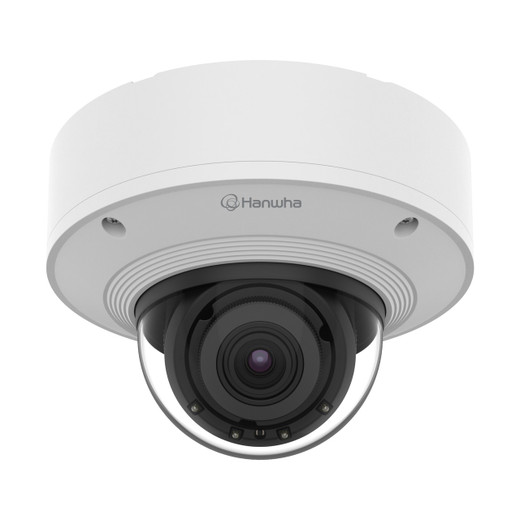

Hanwha XNV-8081RE 5MP Outdoor Vandal-Resistant IR Dome Camera

Hanwha XNV-8081RE 5MP Outdoor Vandal-Resistant IR Dome Camera

The Hanwha XNV-8081RE is a robust 5MP outdoor dome camera engineered for demanding surveillance environments. Built with a 1/1.8" 6MP CMOS sensor, this camera delivers crisp 2560x1920 resolution at 30fps using H.265/H.264 compression. The motorized varifocal lens (3.9–9.4mm, 2.4x zoom) provides flexible field-of-view control from 92.1° wide to 38.7° telephoto, while the F1.3 aperture captures detail in challenging lighting. With 50-meter infrared range and color operation down to 0.07 Lux, the XNV-8081RE performs reliably from dawn to dusk.

Key Features

• 5MP resolution with 120dB wide dynamic range for balanced exposure in mixed lighting
• Motorized varifocal 3.9–9.4mm lens with simple focus control
• 50-meter IR LED range for complete darkness surveillance
• IP67/IP66/IP6K9K, IK10+, and NEMA 4X certifications for extreme weather and vandal resistance
• Built-in gyro sensor for digital image stabilization
• WiseStream II smart codec and H.265 support to optimize bandwidth and storage
• Dual microSD/SDHC/SDXC slots supporting up to 512GB onboard storage
• PoE+ In and PoE Out capability with extended 80-meter reach via CAT5/5E
• Bi-directional audio with selectable mic/line input and line output

Advanced Analytics & Intelligence

The XNV-8081RE incorporates comprehensive analytics for proactive threat detection: motion detection with 8 polygonal zones, shock detection, tampering detection, directional detection, fog detection, and defocus detection. Digital auto-tracking automatically follows moving subjects, while virtual line crossing, loitering, and appear/disappear detection trigger intelligent alerts. Sound classification and audio detection add multi-sensory monitoring capability. Built-in business intelligence features include people counting, queue management, and heatmap visualization—valuable for traffic analysis and space utilization studies.

Smart Video Management

The camera supports multiple simultaneous streams (up to 10 profiles), unicast delivery to 20 concurrent users, and multicast streaming for efficient network distribution. Alarm events trigger file uploads via FTP and email notifications, SD/NAS recording, or alarm output relay activation. The 1GB RAM and 256MB flash memory ensure responsive operation. Privacy masking offers 32 rectangular zones in five color options plus mosaic mode. Video rotation supports mirror, flip, and 90°/270° hallway views for creative installation flexibility.

Connectivity & Security

Full IPv4/IPv6 dual-stack support with ONVIF Profile S/G/T compliance and Wisenet open platform integration enables seamless system interoperability. HTTPS/SSL encryption, 802.1X authentication, digest login authentication, and IP address filtering protect against unauthorized access. NTP time synchronization and DDNS support simplify remote management across distributed networks.

Applications

Ideal for perimeter security, campus monitoring, industrial facilities, transportation hubs, and critical infrastructure protection where durability, reliability, and forensic-quality imagery are essential. The combination of thermal imaging capability, compact form factor (Ø180×125mm), and PoE power efficiency makes deployment straightforward even in remote or harsh locations.

Marty Allison

The XNV-8081RE represents Hanwha's commitment to outdoor surveillance robustness. The IK10+ impact rating and IP67/IP6K9K sealing exceed typical dome standards, justifying selection in high-vandalism zones. WiseStream II compression delivers meaningful bitrate savings—especially valuable for facilities managing hundreds of cameras.

The integrated PoE extender for powering downstream devices reduces cabling complexity and infrastructure costs. Real forensic performance: at wide zoom the camera identifies subjects at 4.9 meters and recognizes detail to 9.9 meters, sufficient for most perimeter applications. The dual SD slots and edge recording mitigate network outages, while the generous -50°C to +60°C operating range supports arctic and desert deployments.

The motorized varifocal lens requires manual adjustment rather than PTZ speed control, positioning this camera for fixed-angle monitoring with infrequent retuning rather than active tracking. Ideal for security integrators prioritizing durability and intelligent edge analytics over pan-tilt flexibility.
