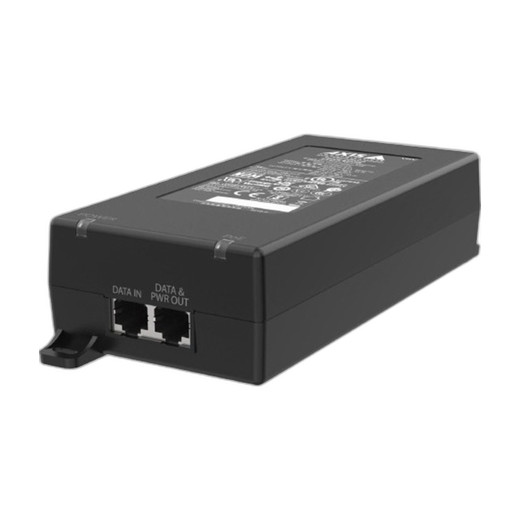

Axis TU8004 90W PoE++ Midspan Injector

Axis TU8004 90W PoE++ Midspan Injector

The Axis TU8004 90W Midspan is a robust Power over Ethernet (PoE++) injector designed to deliver up to 90 watts of power to network video devices and IP surveillance cameras. This midspan solution bridges the gap between existing network infrastructure and devices requiring advanced PoE power levels, making it essential for deploying high-performance surveillance systems without rewiring your network.

Key Features

• 90W maximum output power (57V DC) supporting PoE++, High PoE, PoE+, and PoE
• Automatic detection and adaptation to PoE, PoE+, High PoE, and PoE++ devices
• Multi-speed Ethernet support: 10/100/1000/2500/5000 Mbps data rates
• Dual power delivery channels with max 0.8A per channel for safety and reliability
• Wide AC input range: 100–240V, 50–60 Hz global compatibility
• Multiple mounting options: wall mount, shelf mount, or DIN rail installation
• Power and PoE status LEDs for quick diagnostics
• PVC-free and halogen-free construction for environmental responsibility

Technical Specifications

This midspan operates across an extended temperature range of -20°C to 40°C (-4°F to 104°F) at full 90W output, with relaxed thermal limits at lower power levels (60W at -20°C to 60°C; 30W at -20°C to 65°C). The unit features shielded RJ45 connectors supporting both EIA 568A and 568B wiring standards, with intelligent power distribution across data pairs 1/2 and 3/6, plus return pairs 7/8 and 4/5.

Comprehensive safety and EMC certifications include IEC/EN/UL 62368-1, FCC Part 15 Subpart B Class B, EN 55032/55035, and RCM compliance. The compact 166 × 80 × 44mm footprint and 500g weight enable flexible deployment in equipment racks, wall-mounted panels, or network cabinets.

Applications

• Powering legacy PoE-incompatible network cameras requiring external power injection
• Extending PoE delivery to high-power devices in complex surveillance deployments
• Supporting multi-camera installations with centralized power management
• Emergency or temporary surveillance system setup without infrastructure modification

Power Consumption

Idle consumption is minimal at 0.2W with no connected device. Full consumption scales with load: 18.5W (15W device), 34.1W (30W device), 64.3W (60W device), or 91.7W (90W device).

The Axis TU8004 includes a 3-year warranty and ships with an installation guide. The optional AXIS T91A03 DIN Rail Clip A supports rackmount configurations, while the AXIS TU6011 Mains Cable is required for AC connection.
