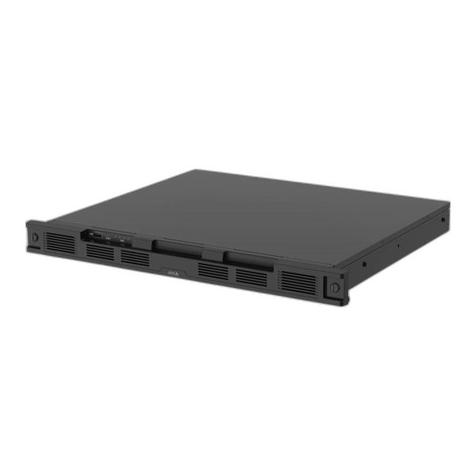

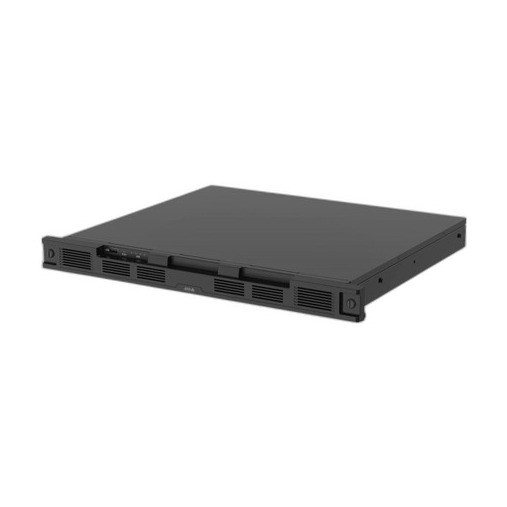

Axis S4000 16-Channel Rack Mount Recorder

Axis S4000 16-Channel Rack Mount Recorder

The Axis S4000 is a 1U rack-mount network video recorder engineered for enterprise surveillance deployments requiring secure, scalable video storage and management. Designed to integrate seamlessly into modern IT infrastructure, this recorder delivers validated performance up to 256 Mbit/s across 16 video channels while maintaining AXIS OS security standards and compliance-ready architecture.

Key Features

• 16-channel video input capacity with 256 Mbit/s validated recording bitrate
• Four hot-swappable drive bays supporting up to 32TB total storage
• RAID 0, 1, 5, 6, and 10 support for flexible redundancy and performance tuning
• 1U rack-mount form factor optimized for data center and equipment room deployment
• Dual-LAN connectivity: RJ-45 copper and SFP fiber interfaces for network design flexibility
• USB 3.0 front port for rapid evidence export and streamlined workflows
• AXIS OS hardened cybersecurity framework with encrypted storage and secure key handling
• Five-year warranty with enterprise support coverage

Technical Highlights

The S4000's architecture balances capacity with operational efficiency. Its surveillance-class hard drives and configurable RAID levels allow organizations to align storage strategy with retention policy and uptime requirements. The dual-LAN design—combining traditional copper and high-speed SFP connectivity—ensures network flexibility for both legacy and next-generation infrastructure. USB 3.0 front access eliminates the need for rear panel intervention during evidence retrieval, reducing operational friction in secure environments.

Built on AXIS OS, the recorder implements cryptographic key handling, encrypted storage, and secure communication protocols to meet stringent cybersecurity requirements. This foundation supports compliance with enterprise security policies and regulatory frameworks common in financial, government, and critical infrastructure sectors.

Applications

• Enterprise campus surveillance with centralized storage and redundancy
• Expansion of existing video management systems requiring additional recording capacity
• High-security facilities demanding RAID protection and cryptographic security
• Data center and equipment room environments where compact form factor and low acoustics are required
• Organizations requiring long-term retention with flexible storage scaling

Eden Phillips

The S4000 addresses a specific market segment: enterprises that need recorder-grade reliability without the complexity of distributed edge storage. Its four-bay architecture with RAID support strikes a practical balance—enough redundancy to prevent single-drive failures from causing downtime, while remaining cost-effective for organizations not requiring N+2 or greater protection. The 256 Mbit/s validated bitrate is realistic for mixed-resolution deployments; organizations running primarily 1080p or lower will achieve sustainable performance across all 16 channels.

The dual-LAN ports are particularly valuable in segmented networks where surveillance traffic requires isolated pathways or in environments transitioning from copper to fiber infrastructure. Five-year warranty coverage is competitive for Tier 1 recorders and reduces TCO uncertainty for multi-year deployments.
