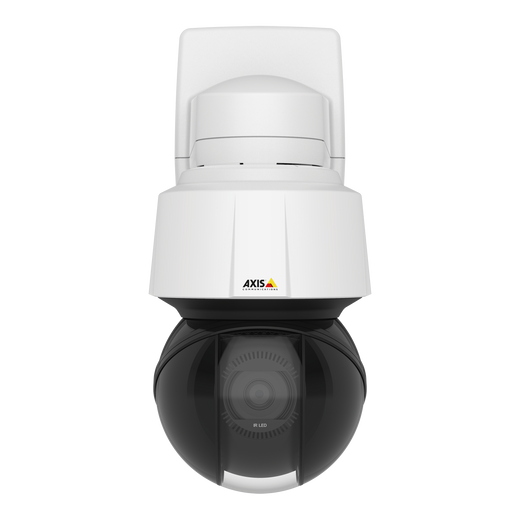

Axis Q6135-LE 2MP Outdoor PTZ Dome Camera

Axis Q6135-LE 2MP Outdoor PTZ Dome Camera

The Axis Q6135-LE is a high-performance outdoor PTZ (pan-tilt-zoom) network camera engineered for large-area surveillance requiring extended reach and exceptional low-light performance. With 32x optical zoom, 1080p resolution, and Axis Lightfinder 2.0 technology, this camera delivers sharp, color-rich imagery in near-total darkness—extending infrared visibility up to 250 meters. Built to withstand harsh environments with IP66 waterproof and IK08 vandal-resistance ratings, the Q6135-LE is ideal for city-scale monitoring, critical infrastructure protection, and wide-area tracking applications.

Key Features

• 32x optical zoom with 12x digital zoom for precise object identification
• 2MP (1920×1080) HDTV resolution at up to 60 fps
• Lightfinder 2.0 with OptimizedIR technology—0.06 lux color sensitivity
• 360° endless pan with ±20° to -90° tilt range
• Autotracking 2 for automatic detection and following of moving subjects
• High PoE power delivery over single Ethernet cable
• Forensic WDR for balanced exposure in mixed lighting
• H.264 video compression with Zipstream technology for bandwidth optimization
• Operating range: -50°C to +50°C
• Built-in orientation aid for PTZ reference
• Preset position tours and guard tour scheduling
• Integrated audio support for two-way communication
• Secure Boot and TPM for firmware integrity

Technical Highlights

The Q6135-LE combines a 1/2.8" CMOS sensor with Axis's OptimizedIR lighting system to achieve exceptional performance across day and night conditions. The camera's Forensic WDR engine preserves detail in both bright and dark areas simultaneously, critical for mixed-lighting outdoor scenes. Autotracking 2 automatically locks onto and follows moving objects, reducing operator workload while maintaining target visibility. H.264 compression paired with Zipstream technology significantly reduces bandwidth and storage requirements without sacrificing image quality.

Applications

Ideal for municipal surveillance, transportation hubs, perimeter security, parking facilities, critical infrastructure sites, and any outdoor environment requiring long-range zoom, high sensitivity, and reliable operation across extreme temperatures. The combination of optical zoom range and low-light performance makes the Q6135-LE suited for scenarios where subjects are distant or lighting is unpredictable.

Karl Wilson

The Q6135-LE represents a balanced choice for integrators seeking outdoor PTZ capability without the cost and complexity of ultra-high-resolution or thermal systems. The 32x zoom is sufficient for most city-scale applications (58.3° to 2.4° horizontal FOV), while Lightfinder 2.0 and OptimizedIR eliminate the need for supplemental lighting in many scenarios. Autotracking 2 and orientation aid features improve operational efficiency, especially for understaffed facilities.

The camera's High PoE power class and Zipstream compression make it practical for larger deployments. IP66/IK08 ratings ensure longevity in unprotected outdoor environments, though physical mount protection is still recommended in high-vandalism zones.
