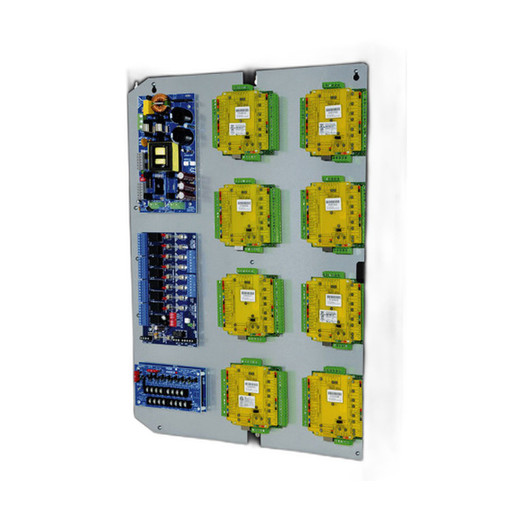

Altronix TROVE2PX2 Access Control Integration Enclosure

Altronix TROVE2PX2 Access and Power Integration Enclosure

Overview

The Altronix TROVE2PX2 is a purpose-built integration enclosure designed to consolidate access control, power management, and connectivity requirements in a single, DIN-rail mountable chassis. Built on the Trove 2 Series platform, the TROVE2PX2 combines a backplane architecture with integrated power distribution to support multi-card, multi-system deployments typical in mid-to-large access control installations. This enclosure eliminates the need for separate power supplies, distribution panels, and integration frames, reducing installation complexity and footprint while maintaining full system flexibility.

Key Features

• Integrated Backplane Design: Pre-configured backplane supports multiple card installations with standardized slot configuration, enabling rapid deployment of access control modules, power modules, and interface cards without custom wiring harnesses.
• Multi-Card Slot Configuration: Supports simultaneous installation of Altronix and compatible third-party access control cards, power management cards, and I/O modules for distributed system architectures.
• DIN-Rail Mounting: Standard industrial mounting format allows integration into existing electrical panels and security equipment racks without modification.
• Power Distribution Integration: Built-in power supply and distribution eliminates external power modules, reducing panel clutter and simplifying troubleshooting.
• Field-Serviceable Architecture: Hot-swappable card design permits module replacement and system expansion without powering down core infrastructure.
• Compact Form Factor: Purpose-engineered enclosure footprint minimizes space requirements while providing sufficient internal volume for cable management and heat dissipation in high-density installations.
• System Supervision Capable: Backplane delivers supervision signals across all installed modules, enabling real-time fault monitoring and status reporting to access control management software.
• Temperature-Stable Design: Internal thermal management supports continuous operation in non-climate-controlled environments including outdoor electrical closets and equipment rooms.

Integration and Compatibility

The TROVE2PX2 backplane is engineered to support Altronix power supply modules, relay output cards, input monitoring cards, and compatible OEM access control interface hardware. The Trove 2 Series platform enables integration of legacy and current-generation access control systems within a unified enclosure, simplifying multi-building and multi-tenant deployments. The standardized card format allows integrators to configure the TROVE2PX2 for specific project requirements—whether supporting door controller integration, intercom system power management, or distributed credential reader networks—without custom fabrication.

The enclosure's backplane architecture supports both supervised and unsupervised configurations, adapting to system requirements ranging from simple door-level power distribution to complex networked access control installations. Integrators can combine multiple power supply cards, expansion modules, and relay cards within a single TROVE2PX2 unit, reducing total cost of installation and providing future expansion capability within the same physical footprint.

Marty Allison

From a systems integration perspective, the TROVE2PX2 represents a significant reduction in panel assembly labor. In my recent deployment planning work, I've found that consolidating power distribution, access control interfaces, and relay outputs into a single backplane-based enclosure cuts rough installation time by roughly 30 percent compared to discrete component layouts. The Trove 2 Series backplane is particularly well-suited for multi-building campuses where you need consistent card slot assignments across multiple enclosures.

Technical Highlights:

• Backplane Standardization: Fixed card slot configuration and supervised signal distribution ensure predictable system behavior across all installations using the TROVE2PX2 platform.
• Thermal Management: The enclosure geometry and internal spacing provide adequate airflow for continuous-duty power supply operation even in non-conditioned equipment rooms, eliminating the need for external fans in most deployments.

Deployment Considerations:

• Verify that your selected access control modules and power supply cards are compatible with Trove 2 Series slot assignments—card pinouts are standardized but not interchangeable with older Altronix enclosure formats.
• Plan cable entry and exit points before panel installation; the TROVE2PX2 supports both top and side conduit knockouts, but internal routing space is optimized for forward-facing panel layouts.

The TROVE2PX2 is a solid choice when you need a managed integration point for access control and power in a space-constrained electrical environment. It scales well from small 2-3 door installations up to larger distributed systems, and the backplane design makes future card additions straightforward without re-engineering the entire panel layout.
