Altronix AL600XB220 PS converts 220VAC into 12VDC/24VDC

Altronix AL600XB220 220VAC to 12VDC/24VDC Power Supply

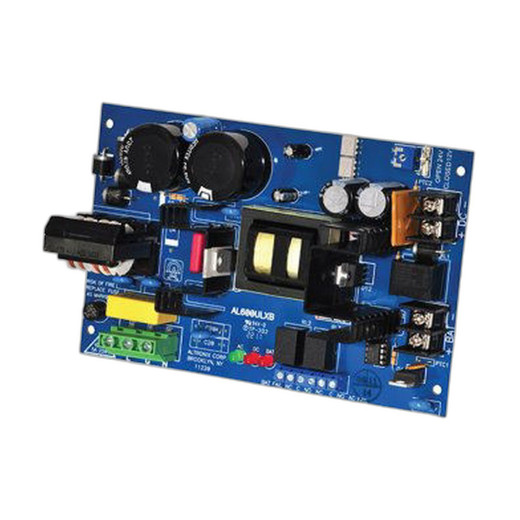

The AL600XB220 is a compact board-form power supply that converts 220VAC input into selectable 12VDC or 24VDC output at 6A continuous. Designed for European installations operating on 220VAC 50/60Hz mains, the AL600XB220 delivers regulated DC power for access control, alarm systems, and security infrastructure. Input voltage tolerance spans 198VAC to 256VAC, ensuring stable operation across typical mains variations.

Key Features

• Selectable 12VDC or 24VDC output voltage
• 6A continuous output current capacity
• 220VAC 50/60Hz input with wide operating range (198–256VAC)
• Battery backup support for sealed lead acid or gel-type batteries
• AC failure supervision with Form C relay contacts
• Battery presence and low battery voltage supervision
• CE European Conformity approval
• Lifetime Limited Warranty

Applications

• European access control system power backup
• Alarm panel auxiliary power supply
• Door lock and magnet power with battery failover
• Security camera and sensor infrastructure power

Specifications

• Input: 220VAC, 50/60Hz (198–256VAC operating range)
• Output: 12VDC or 24VDC selectable, 6A continuous
• Form Factor: Board, 7.1" × 4.5" × 2" (180.3mm × 114.3mm × 50.8mm)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Battery Support: Sealed lead acid or gel type (sold separately)
• Supervision: AC failure, battery presence, low battery with Form C contacts
