Electrical & Power Supplies for Surveillance Systems

Plan Your Deployment

Voltage requirements and device compatibility
Power budgeting across cameras and access devices
Centralized vs distributed power design
Surge protection and environmental safeguards
Redundancy and uptime planning

Sub categories

Showing Results for Electrical & Power

Compare

Out of stock
Hanwha

SKU: SBP-302CMSW

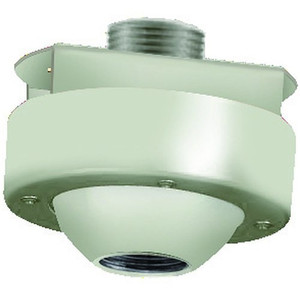

Hanwha SBP-302CMSW White Swivel Adapter

360° horizontal swivel adapter for Hanwha ceiling and wall mounts
- Full 360° continuous rotation adjusts camera angle without removing hardware
- White corrosion-resistant finish blends with camera housings indoors and mild outdoor areas
- Metal construction with durable swivel mechanism supports repeated repositioning
In stock · Ships same business day

$120.00 $83.99 Save $36.01
Free shipping over $499

$120.00 $83.99 Save $36.01

Add to quote Compare
Compare

Out of stock
Hanwha

SKU: SBP-B-100P

Hanwha SBP-B-100P Gang Box Converter Plate

Single gang box converter plate for XNV-6011 and SNV-6013 cameras
- Mounts directly to standard electrical boxes for space-constrained wall installations
- Compatible with XNV-6011 and SNV-6013 Hanwha IP camera models
- Reduces installation complexity in retrofit and new construction deployments
In stock · Ships same business day

$39.00 $27.99 Save $11.01
Free shipping over $499

$39.00 $27.99 Save $11.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD1

HES AQD1 1A Auxiliary Power Supply 12/24VDC

1A auxiliary supply for access control—12/24VDC selectable with battery charger
Special Order · Ships in 2-3 weeks

$327.00 $180.99 Save $146.01

Add to Cart
The item has been added
Free shipping over $499

$327.00 $180.99 Save $146.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD1-1R

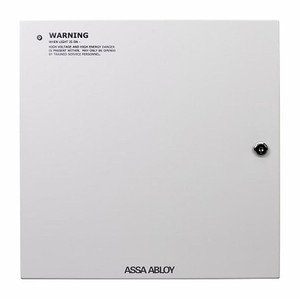

HES AQD1-1R 12/24VDC 1A Power Supply

Selectable 12/24VDC 1A power supply for mixed-voltage access control
Special Order · Ships in 2-3 weeks

$376.62 $202.99 Save $173.63

Add to Cart
The item has been added
Free shipping over $499

$376.62 $202.99 Save $173.63

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD1-4C1

HES AQD1-4C1 Dual Voltage Power Supply with Charger

Dual voltage 12/24VDC supply with integrated charger and 4 PTC outputs
Special Order · Ships in 2-3 weeks

$387.00 $213.99 Save $173.01

Add to Cart
The item has been added
Free shipping over $499

$387.00 $213.99 Save $173.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD1-8C1

HES AQD1-8C1 1 Amp Dual Voltage Power Supply

8-channel 12/24V power supply with 1A per circuit for access control
Special Order · Ships in 2-3 weeks

$398.00 $219.99 Save $178.01

Add to Cart
The item has been added
Free shipping over $499

$398.00 $219.99 Save $178.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2

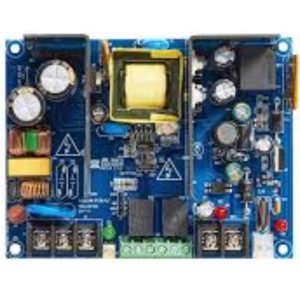

HES AQD2 Power Supply 2A 12/24VDC with Charger

Dual-voltage 2A power supply with integrated battery charger for access control
Special Order · Ships in 2-3 weeks

$394.00 $217.99 Save $176.01

Add to Cart
The item has been added
Free shipping over $499

$394.00 $217.99 Save $176.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2-1R

HES AQD2-1R Dual Voltage Power Supply 2A with Charger

Dual-voltage 2A supply with integrated charger and fire relay for access control
Special Order · Ships in 2-3 weeks

$455.00 $251.99 Save $203.01

Add to Cart
The item has been added
Free shipping over $499

$455.00 $251.99 Save $203.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2-4C

HES AQD2-4C 2A Power Supply 12/24VDC with Charger

Dual-voltage 2A power supply with 4 PTC-protected outputs for access control
Special Order · Ships in 2-3 weeks

$516.00 $285.99 Save $230.01

Add to Cart
The item has been added
Free shipping over $499

$516.00 $285.99 Save $230.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2-4F1

HES AQD2-4F1 Power Supply 2A 12/24VDC with Charger

Regulated 2A supply with selectable 12/24VDC and integrated battery charger
Special Order · Ships in 2-3 weeks

$455.00 $267.99 Save $187.01

Add to Cart
The item has been added
Free shipping over $499

$455.00 $267.99 Save $187.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2-8C1

HES AQD2-8C1 2 Amp Dual Voltage Power Supply

8-channel dual voltage supply for access control and security systems
Special Order · Ships in 2-3 weeks

$466.00 $257.99 Save $208.01

Add to Cart
The item has been added
Free shipping over $499

$466.00 $257.99 Save $208.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2-8F8R1

HES AQD2-8F8R1 Power Supply 2A 12/24VDC Charger

Dual-voltage 2A power supply with 8 fused relays for access control
Special Order · Ships in 2-3 weeks

$570.00 $314.99 Save $255.01

Add to Cart
The item has been added
Free shipping over $499

$570.00 $314.99 Save $255.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD2B

HES AQD2B Power Supply Board 2A 12/24VDC

Compact 2A power board with field-selectable 12/24VDC output and integrated charging
Special Order · Ships in 2-3 weeks

$252.00 $139.99 Save $112.01

Add to Cart
The item has been added
Free shipping over $499

$252.00 $139.99 Save $112.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD4

HES AQD4 4A 12/24VDC Power Supply with Integrated Battery Charger

Dual-voltage 4A supply with built-in battery charger for access control
Special Order · Ships in 2-3 weeks

$443.00 $244.99 Save $198.01

Add to Cart
The item has been added
Free shipping over $499

$443.00 $244.99 Save $198.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD4-1R

HES AQD4-1R 4A Dual Voltage Power Supply with Charger

Dual-voltage 4A supply with integrated charger for access control
Special Order · Ships in 2-3 weeks

$505.00 $278.99 Save $226.01

Add to Cart
The item has been added
Free shipping over $499

$505.00 $278.99 Save $226.01

Add to quote Compare
Compare

Out of stock
HES

SKU: AQD4-4C1R1

HES AQD4-4C1R1 Supervised Power Supply 12/24VDC

Dual-voltage supervised supply with active fault detection for access control
Special Order · Ships in 2-3 weeks

$566.00 $312.99 Save $253.01

Add to Cart
The item has been added
Free shipping over $499

$566.00 $312.99 Save $253.01

Add to quote Compare

What to Look For When Buying

The decisions that matter most before you spec.

PoE Budget Planning & Oversubscription Risk

PoE switches are frequently rated for more cameras than their actual power budget allows. Read PoE Budget Planning for IP Camera Deployments to understand injector and supply sizing before deployment. Undersizing power delivery is a leading cause of intermittent camera failures and system collapse under load.

Power Failure Cascades & System Downtime

When electrical infrastructure fails, entire surveillance zones go dark. Why Surveillance Systems Fail During Incidents documents how inadequate power conditioning and lack of UPS cause loss of footage during security events. Plan battery backup for NVRs, edge recorders, and access control hubs.

Cable Distance & Voltage Drop

PoE and DC power delivery degrade over distance; runs beyond 100 meters often require midspan injectors or stepped-up supplies. Verify cable gauge and run length before selecting power distribution topology to avoid under-voltage conditions at the camera.

Multi-Location Standardization

Why Surveillance Standards Collapse After the Third Location shows how power supply mismatches across sites create maintenance nightmares. Choose a consistent voltage (12V, 24V, or PoE) and supplier throughout your deployment to reduce spare parts inventory and service complexity.

Redundant & Managed Power Distribution

Enterprise deployments benefit from redundant power paths, monitored PDUs, and ring topologies that isolate failures. Higher-end Honeywell and i-PRO systems often integrate power monitoring; plan accordingly for large campuses or critical facilities.

Environmental & Temperature Ratings

Outdoor and harsh-environment installations demand industrial-grade supplies rated for extended temperature, humidity, and vibration. Confirm operating range and mean-time-between-failure (MTBF) specifications before deployment in uncontrolled spaces.

Technology Stack

The specs and acronyms that actually affect electrical & power performance.

Power over Ethernet (PoE)

Delivers power and data via Cat5e/6 cable to end devices, eliminating separate power runs. Standard PoE (15.4W) and PoE+ (30W) cover most IP cameras; PoE++ (60–90W) supports high-power PTZ and multi-sensor units. Budget for realistic camera counts per switch to avoid brownout conditions.

Volt & Amperage (12V DC, 24V AC/DC)

Most analog and IP camera supplies operate at 12V DC or 24V AC. Verify polarity and current draw (mA or A) to select the right supply gauge; undersized supplies cause brownout and intermittent operation. Industrial systems often standardize on 24V for longer cable runs with less voltage drop.

Uninterruptible Power Supply (UPS)

Provides instant switchover to battery during mains failure, keeping NVRs, access control panels, and network infrastructure online. Capacity is measured in VA (volt-amperes) and run-time minutes; size for critical equipment and desired hold-up duration (typically 15–60 minutes).

Surge Protection & Transient Voltage Suppression (TVS)

Clamps lightning and inductive load spikes to safe levels, preventing component damage. Essential on outdoor camera circuits and near HVAC, door motors, and panel relays. Look for devices with replaceable cartridges or indication lights.

DIN-Rail Power Distribution

Modular power supplies and distribution blocks mounted on standard 35mm rail for easy expansion and maintenance. Common in control rooms, server racks, and equipment shelters; simplifies wiring and reduces clutter.

Cable Gauge & Voltage Drop

Thicker wire (lower AWG) reduces resistance and voltage loss over distance. For 12V runs >30m or 24V runs >50m, use oversized cable or inject power mid-span. Poor power distribution cascades into storage and network failures.

Typical Deployment Scenarios

Campus with Distributed Cameras (50–100 units)

Deploy a central PoE+ switch (24–48 ports) in the server room backed by a 2kVA UPS, with midspan Geovision or Honeywell injectors at remote buildings. Use surge-protected DIN-rail distribution and a 10–15 minute UPS hold-up to ensure graceful shutdown during mains failure.

Retrofit with Mixed 12V & PoE Cameras

Combine PoE cameras (via switch injector) with legacy 12V dome cameras (fed by industrial 12V DC supply + surge protector). Standardize termination and cable routing to simplify future moves/adds/changes. Size supply at 1.5× total expected load to handle inrush current.

Remote Unmanned Site (10–15 cameras)

Use a compact PoE injector or managed PoE+ switch, protected by a DIN-rail surge module and a 500VA UPS with 30–45 minute battery runtime. Include a backup 4G cellular gateway powered by the same UPS to retain remote access if mains fails.

Access Control + Video Integration (multi-reader facility)

Deploy redundant 24V AC supplies for door controllers and readers, with a separate 12V DC power budget for IP intercoms. Size a 3–5kVA UPS with extended runtime to hold access and surveillance during emergencies; add battery monitoring to alert before depletion.

Frequently Asked Questions

How many cameras can one PoE switch really support?

Rated port count does not equal real-world capacity. A 24-port PoE+ switch (370W budget) typically supports 10–14 high-powered cameras, not 24. Learn why PoE switches fail before rated count and plan injectors or additional switches accordingly.

What size UPS do I need for my surveillance system?

Calculate total watts of all equipment (NVR, switch, access control, intercoms) and multiply by 1.2 for safety. A 1000W device requires a 1.2kVA UPS minimum. For 30–60 minute hold-up, add battery packs. Consult the UPS datasheet runtime table for your exact load.

Can I run cameras over long cable distances without power loss?

Beyond 100 meters, voltage drop becomes significant. Use thicker cable (e.g., 10/2 instead of 18/2) or deploy a midspan PoE injector at the halfway point. Test actual voltage at the camera before and during operation to confirm it meets the minimum 11.5V for PoE devices.

Should I use surge protection outdoors?

Yes. Outdoor camera runs, especially on poles or towers, attract lightning transients that destroy unprotected equipment. Install a surge-suppression cartridge or dedicated SPD (Surge Protective Device) at the camera supply entry point.

What's the difference between 12V and 24V supplies?

24V systems have lower current for the same power, so they suffer less voltage drop over distance and are preferred for long cable runs and industrial deployments. 12V is common in legacy and compact camera designs. Choose based on your camera specs, not preference; mixing standards requires careful supply sizing and testing.

How often should I test my UPS battery backup?

Test battery runtime (load test) at least quarterly, or annually if the UPS is older. Monitor battery age; most UPS batteries degrade after 3–5 years and should be replaced proactively. For critical facilities, use a monitored UPS with email alerts for battery health.
