HID 5395-CK100 ThinLine II Proximity Card Reader

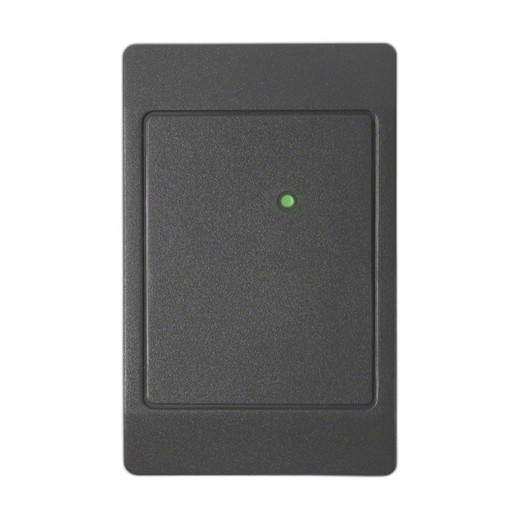

HID HID-5395-CK100 ThinLine II Proximity Card Reader

The HID-5395-CK100 is a compact, wall-mounted proximity card reader engineered for access control applications requiring both aesthetic integration and reliable credential recognition. Built on 125 kHz proximity technology, this reader delivers consistent performance across corporate, industrial, healthcare, and secure facility environments. The potted, weatherproof enclosure is sized to match standard U.S. switch plates and supports both indoor and outdoor deployment, making it a versatile choice for perimeter checkpoints, facility entrances, and interior access control zones.

Key Features

• Dual-interface design: Available in Wiegand (model 5395) or Clock-and-Data (model 5398) configurations to match existing control systems
• Weatherproof potted enclosure rated for indoor and outdoor use across operating temperatures of -22°F to 150°F (-30°C to 65°C)
• Compact form factor at 4.70" W × 3.00" H × 0.68" D—fits standard switch plate openings for seamless architectural integration
• Multicolor LED and internal/host-controlled beeper for operational feedback and status indication
• Low power consumption: 30 mA average at 5 VDC, 20 mA at 12 VDC; peak draw 110-115 mA
• Standard 18-inch (45 cm) wire pigtail; 9-foot (2.7 m) pigtail available by special order
• Broad credential compatibility including ProxCard II, ISOProx II, DuoProx II, Smart ISO/DuoProx, Proximity & MIFARE hybrid, ProxCard Plus, ProxKey II keyfobs, and Microprox tags
• Direct mounting on metal surfaces with minimal read-range performance impact
• Replaceable covers available in two designs and four colors for aesthetic customization
• Multilingual installation documentation

Read Range Performance

The HID-5395-CK100 delivers consistent credential recognition across the HID proximity ecosystem. Typical maximum read ranges vary by credential type and local installation conditions: ProxCard II cards up to 5.5 inches (14 cm), ISOProx II, DuoProx II, and Smart ISO/DuoProx cards up to 5 inches (12.7 cm), Proximity & MIFARE hybrid cards up to 5 inches (12.7 cm), ProxCard Plus cards up to 1.5 inches (3.8 cm), ProxKey II keyfobs up to 2 inches (5.1 cm), and Microprox tags up to 3 inches (7.6 cm). Environmental and mounting conditions may affect actual operating range in the field.

Integration & Compatibility

The HID-5395-CK100 integrates seamlessly into both legacy and contemporary access control systems. Wiegand interface supports cable runs up to 500 feet (150 m), enabling flexible controller placement and reducing installation complexity in large facilities. Clock-and-Data interface supports up to 50 feet (15.2 m) of cable distance, suitable for standard office and facility deployments. DC power input (5–16 VDC) connects directly to linear power supplies, eliminating battery maintenance and supporting continuous, uninterrupted operation. The reader requires 5–16 VDC from the access control panel or dedicated power supply, with peak current demand of approximately 115 mA at lower voltages.

Environmental & Operational Specifications

Engineered for reliability in demanding environments, the ThinLine II operates across a full temperature range of -22°F to 150°F (-30°C to 65°C) and withstands humidity up to 95% relative humidity (non-condensing). The two-piece, potted enclosure design protects internal circuitry from moisture and environmental contaminants, supporting both controlled indoor spaces and outdoor gatehouse, perimeter, and entrance applications. The reader weighs 3.3 oz. (94 grams) and integrates directly into door frames, wall plates, and surface-mount installations with minimal structural modification.

James Everett

The HID HID-5395-CK100 is a reliable proximity reader that fits naturally into both new deployments and retrofit projects. During system planning, the dual-interface capability is a genuine advantage—you're not locked into a single protocol, and the 500-foot Wiegand distance spec gives you real flexibility in large facilities where controller placement matters. The weatherproof potted design is substantive, not just marketing; it actually performs outdoors without the fragility you see in some competitive readers.

Technical Highlights:

• Extended Cable Distance (Wiegand): 500-foot runs eliminate intermediate converters or signal repeaters in many installations, reducing cost and failure points.
• Low Operating Power: 20–30 mA nominal draw at standard voltages means you can run multiple readers on a single access control panel output without power budget constraints.
• Credential Ecosystem Breadth: Support for seven credential types—cards and keyfobs—allows mixed deployments and gradual technology migration without reader replacement.
• Industrial Environmental Rating: -22°F to 150°F operating range covers cold storage, outdoor gates, and unheated loading docks without special enclosures.

Deployment Considerations:

• Confirm your access control system supports either Wiegand or Clock-and-Data input before purchase; the two versions (5395 and 5398) are not field-convertible.
• Plan for cable runs under 500 feet on Wiegand systems; Clock-and-Data deployments are limited to 50 feet, which may require additional readers in large facility perimeters.
• The 18-inch pigtail is standard; if you need longer cable, special-order the 9-foot version during procurement to avoid installation delays.
• Mount directly on metal frames where possible; the reader performs well on metal substrates without range degradation.

For integrators managing mixed-credential environments or upgrading from older HID proximity systems, the ThinLine II delivers the compatibility and environmental durability you need without overcomplicating installation. It's a straightforward, field-proven choice for facilities that require both aesthetics and uninterrupted access control performance.
