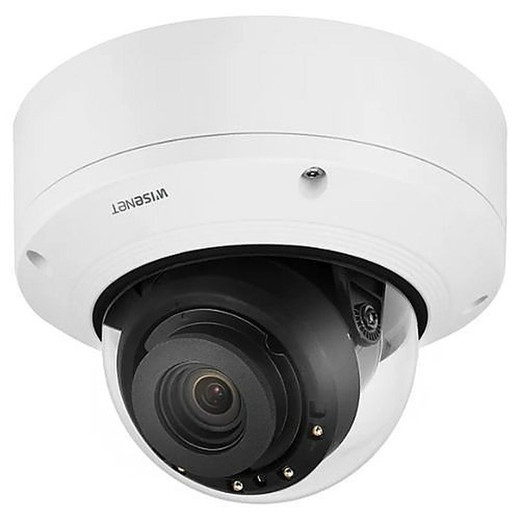

6MP IR Indoor Dome

Hanwha XND-8082RV Overview

The Hanwha XND-8082RV is a 6MP vandal-resistant indoor network dome camera engineered for surveillance deployments requiring robust physical durability and advanced low-light imaging. Housed in an aluminum dome with IK10 impact resistance and IP52 environmental protection, this camera is purpose-built for indoor environments where vandalism risk is elevated, such as education facilities, transit hubs, and retail spaces. The XND-8082RV combines motorized optics, infrared illumination, and embedded video analytics to deliver identification-grade imagery across day and night conditions.

Hanwha XND-8082RV Key Features

• 6MP resolution at 30 fps maximum frame rate (H.265/H.264), enabling detail capture across wide monitoring areas while maintaining network efficiency through modern codec support.
• 2.8–8.4mm motorized varifocal lens (3x zoom) allows remote focus and zoom adjustment without physical camera repositioning, supporting flexible deployment and post-installation framing optimization.
• Day/Night capability with ICR (Intelligent Color Recognition) and extreme WDR (120dB dynamic range) provides balanced exposure across high-contrast scenes, critical for mixed-lighting indoor environments.
• Infrared LED illumination with 40-meter viewable range in B/W mode (0 Lux on IR) and ultra-low color sensitivity at 0.05 Lux (F1.2), ensuring continuous visibility in complete darkness without requiring external lighting infrastructure.
• IK10 impact resistance and IP52 rating (dust and spray protection) provide vandalism and environmental durability, certified per IEC62262 and IEC60529 standards.
• Built-in Digital Image Stabilization (DIS) with gyroscope sensor compensates for vibration and minor movement, maintaining steady video output in facilities with structural vibration or camera mounting challenges.
• Embedded video analytics including defocus detection, directional motion detection, audio detection, shock detection, and face/upper-body detection enable intelligent event triggering and reduce false alarm overhead.
• Dual SD card slots (up to 1TB total) provide local edge recording capability and backup storage independent of network infrastructure, critical for business continuity in bandwidth-constrained or interrupted connectivity scenarios.
• PoE and 12VDC power redundancy failover support: operates on PoE (max 12.95W, typical 10.7W) or 12VDC (max 11.5W, typical 9W), enabling flexible power delivery and failover architectures in modular installations.
• Modular structure supports compatibility with mounting brackets and backboxes including single gang, double gang, 4" octagon, and square configurations, streamlining retrofit and new construction deployments.
• DORI performance metrics (per EN62676-4 standard): Detect at 43.2m wide/182.9m tele; Observe at 17.3m wide/73.1m tele; Recognize at 8.6m wide/36.6m tele; Identify at 4.3m wide/18.3m tele, providing objective performance validation for forensic-grade applications.

Hanwha XND-8082RV Integration & Compatibility

The XND-8082RV supports H.265 and H.264 compression standards, enabling integration with standard ONVIF-compliant VMS platforms and NVR systems. Compatible mounting accessories include the SBP-300LMW, SBP-300WMW1, SBP-300KMW, SBP-300BW, SBP-300PMW, SBP-300WMW, SPB-IND85W, SBC-160B, SBP-300NBW, SBP-300CMW, and SBP-167HMW backboxes and mounting brackets. Compatible conduit hole diameter is 12.7mm (M20), standard for North American electrical rough-in. The camera's modular design integrates seamlessly into single-gang, double-gang, 4" octagon, and square gang boxes, supporting both new construction and retrofit scenarios.
