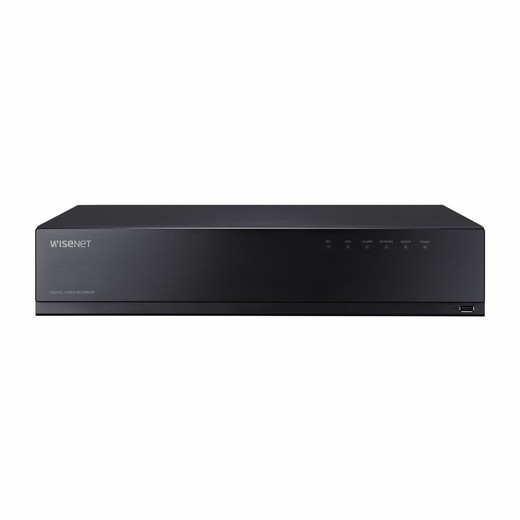

Hanwha HRX-1635-4TB 5-in-1 16CH Pentabrid DVR- 4TB Raw Storage

Hanwha HRX-1635-4TB Overview

The Hanwha HRX-1635-4TB is a 16-channel pentabrid DVR designed for integrators and IT managers deploying mixed analog and network camera environments. This 5-in-1 recorder accepts AHD, HDTVI, HDCVI, CVBS (analog), and IP inputs in a single platform, eliminating the need for separate recorders and reducing deployment complexity. With support for up to 8MP analog cameras and a total of 18 channels (16 analog maximum plus up to 2 network channels, expandable to 18 depending on analog channel count), the HRX-1635-4TB delivers scalable recording capacity for small to mid-sized installations. The unit ships with 4TB of raw storage and supports up to 8 SATA HDD slots for 48TB total capacity.

Hanwha HRX-1635-4TB Key Features

• Pentabrid Input Architecture: Single recorder accepts AHD (8MP, 5MP, 4MP, 1080p, 720p), HDTVI (8MP, 5MP, 4MP, 1080p, 720p), HDCVI (8MP, 5MP, 4MP, 1080p, 720p), CVBS (NTSC/PAL), and ONVIF/Wisenet IP cameras—no mixed-platform complexity.
• Multi-Resolution Analog Support: Records analog cameras at 8MP (15 fps), 5MP (20 fps), 4MP (30 fps), 2MP (30 fps), 1MP (30 fps), and 960H/720p (30 fps) per channel, accommodating legacy and modern analog deployments in a single system.
• Network Camera Expansion: Supports up to 2 network camera channels standard, expandable to 18 channels total depending on analog channel configuration; network cameras record at up to 2MP at 30 fps per channel or up to 480 fps in burst mode.
• Efficient Compression: H.265, H.264, and MJPEG codec support with maximum 128 Mbps recording bandwidth and 32 Mbps playback bandwidth, optimizing storage utilization and network efficiency across all input types.
• Scalable Storage: Includes 4TB raw storage; supports up to 8 SATA HDD slots (6TB maximum per drive) for up to 48TB total capacity, providing extended retention for continuous or event-based recording.
• Dual Monitor Output: 1x HDMI (3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720) and 1x VGA (1920×1080, 1280×1024, 1280×720, 1024×768) for independent monitoring; 1x spot monitor output for auxiliary display.
• Audio & Alarm Integration: 4-channel audio input and 1-channel audio output; 16 alarm inputs and 4 relay outputs for integration with external security systems; coaxial control support for PTZ and auxiliary devices.
• Advanced Playback & Search: Simultaneous playback of up to 18 channels locally, 18 channels via CMS, 4 channels via Wisenet Mobile, and 1 channel via web browser; supports up to 4 simultaneous local and remote users.
• P2P & Mobile Connectivity: QR code-based connection to Wisenet Viewer and Wisenet Mobile app; supports SUNAPI (Wisenet) and ONVIF protocols for seamless integration into enterprise VMS environments.
• Event Trigger & Action: Responds to alarm inputs, video loss, motion detection, tampering (analog), and network camera events; actions include email alerts, event push notifications, PTZ presets, alarm relay output, FTP upload, and CMS commands.
• NDAA & FCC Compliance: Certified for U.S. government procurement; meets regulatory requirements for integration into secure installations and federal system deployments.

Hanwha HRX-1635-4TB Integration & Compatibility

The HRX-1635-4TB integrates with ONVIF-compliant network cameras and Hanwha Wisenet devices via SUNAPI protocol. Supports remote monitoring through Wisenet Viewer, Wisenet Mobile app, and web browser interface. CMS (Content Management System) compatibility enables enterprise-scale deployments with centralized recording and playback control across multiple recorders. Coaxial control allows PTZ and auxiliary device integration without separate cabling. Alarm inputs and relay outputs provide bi-directional integration with access control, fire systems, and third-party sensors. Maximum of 4 simultaneous users (1 local, 3 remote) supports multi-location team monitoring.
