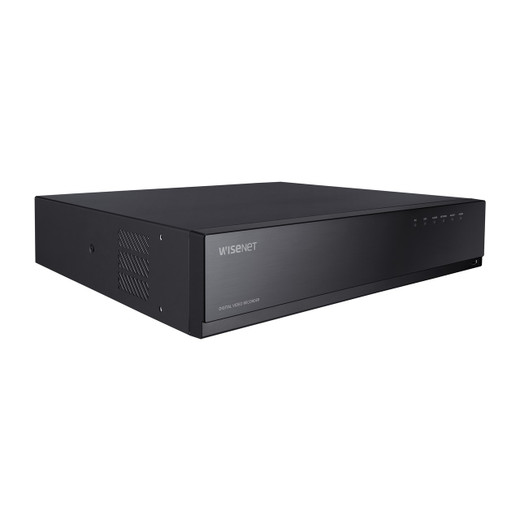

Hanwha HRX-1635-36TB Overview
The Hanwha HRX-1635-36TB is a 16-channel pentabrid DVR designed for hybrid analog and IP surveillance deployments requiring high-capacity storage and flexible input architecture. This standalone recorder accepts 16 analog channels (AHD, HDTVI, HDCVI, CVBS) with simultaneous support for up to 2 additional network camera channels, totaling 18 channels of recording capacity. The HRX-1635-36TB comes pre-configured with 36TB of raw storage via up to eight 6TB SATA HDDs, positioning it as a storage-forward solution for mid-to-large security integrations requiring extended retention without additional external storage investment.
Hanwha HRX-1635-36TB Key Features
- Pentabrid Input Flexibility: Records simultaneously from 16 analog channels (AHD, HDTVI, HDCVI, or CVBS) with capacity to add up to 2 network cameras (IP), for a maximum of 18 total channels depending on analog configuration. Supports up to 8MP analog resolution per channel.
- 8MP Analog Recording: Analog cameras deliver up to 8MP at 15 fps (NTSC) or 12 fps (PAL), with 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H/720H support at 30 fps per channel. Network cameras record at 2MP up to 30 fps per channel, with test bandwidth capability reaching 480 fps.
- Dual-Stream Codec Support: Records in H.265, H.264, and MJPEG compression formats with maximum recording bandwidth of 128 Mbps and playback bandwidth of 32 Mbps, enabling efficient storage utilization and multi-user simultaneous playback across up to 18 channels locally and 18 channels via CMS platform.
- 36TB Integrated Storage Capacity: Accommodates up to 8 SATA hard drives (6TB per drive, up to 48TB maximum), with the HRX-1635-36TB SKU shipping with six pre-installed 6TB drives for immediate 36TB deployment. Supports SATA interface connectivity directly on the recorder chassis.
- Coaxial and Network Control: Features coaxial (BNC) control capability for analog camera PTZ and device control via single-wire infrastructure, reducing cabling complexity in established analog deployments. Integrates ONVIF and SUNAPI (Wisenet) protocol support for network camera compatibility and IP device communication.
- Dual-Display Local Monitoring: Provides 1x HDMI (supporting 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720) and 1x VGA output (supporting 1920x1080, 1280x1024, 1280x720, 1024x768) for simultaneous dual-monitor display of live and recorded streams. Includes 1x spot monitor output for supplemental display routing.
- Multi-Channel Audio: Integrates 4-channel audio input and 1-channel audio output, supporting audio annotation, event-triggered audio capture, and two-way communication with connected audio devices or intercoms.
- Alarm and Relay I/O: Provides 16 alarm inputs (triggered by video loss, motion detection, tampering, or network camera events) and 4 relay outputs for event-driven actions including alarm buzzer, FTP upload, email notification, and external device activation.
- Event-Driven Recording and Actions: Supports pre- and post-event recording windows, motion detection triggers, video loss detection for analog channels, tamper detection for network cameras, and custom event scheduling. Event actions include email notification, event push alerts, PTZ preset activation, alarm relay output, FTP upload, and SUNAPI command execution.
- Mobile and Remote Access: Includes P2P service with QR code quick-connect for Wisenet Viewer and Wisenet Mobile app integration, enabling remote viewing on up to 4 channels via Wisenet Mobile and 1 channel via web browser. Supports up to 4 simultaneous local and remote users (1 local, 3 remote).
- NDAA and FCC Compliance: Manufactured to meet National Defense Authorization Act (NDAA) and Federal Communications Commission (FCC) regulatory requirements, qualifying for U.S. federal, state, and local government procurement processes and ensuring electromagnetic compatibility standards compliance.
Hanwha HRX-1635-36TB Integration and Compatibility
The HRX-1635-36TB integrates with Hanwha's Wisenet ecosystem via SUNAPI protocol for native device discovery and management within Wisenet CMS and Wisenet mobile applications. Network camera inputs support ONVIF profile compliance, enabling compatibility with ONVIF-compliant IP cameras from third-party manufacturers. Local monitoring supports standard HDMI and VGA video outputs for integration with commercial displays and monitor walls. Coaxial control input allows for PTZ and device control via existing analog infrastructure without requiring separate network cabling. The DVR supports CMS-based multi-unit management, fisheye dewarping for 360-degree network cameras (via CMS only), and scheduled or event-triggered recording modes for efficient storage management in variable-activity deployments.
