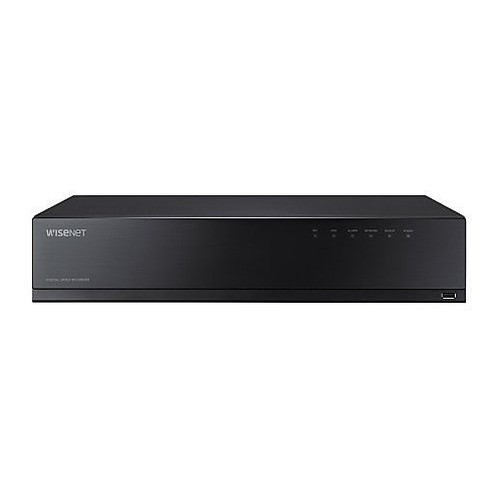

Hanwha HRX-1635-24TB Overview
The Hanwha HRX-1635-24TB is a 16-channel pentabrid DVR designed for mixed-signal surveillance deployments requiring analog and network camera flexibility. This hybrid recorder supports AHD, HDTVI, HDCVI, CVBS (analog), and IP inputs in a single platform, eliminating the need for separate infrastructure when upgrading legacy systems or integrating diverse camera technologies. With pre-installed 24TB raw storage capacity, H.265 compression, and NDAA/FCC compliance, it is purpose-built for integrators and IT managers managing medium-scale surveillance operations across retail, education, municipal, and enterprise facilities.
Hanwha HRX-1635-24TB Key Features
- Mixed-Signal Input Flexibility: 16 dedicated analog channels (AHD/HDTVI/HDCVI/CVBS) plus up to 2 network camera channels, totaling 18 simultaneous inputs depending on analog channel allocation. Supports seamless coexistence of legacy CVBS infrastructure alongside modern IP and high-definition analog cameras.
- High-Resolution Analog Recording: Captures analog signals up to 8MP at 15 fps, 5MP at 20 fps, 4MP at 30 fps, 2MP at 30 fps, 1MP at 30 fps, and 960H/720H at 30 fps per channel. Each resolution tier and frame rate is independently configurable per channel to optimize bandwidth and storage utilization.
- Network Camera Integration: Supports up to 18 network cameras via SUNAPI (Wisenet) and ONVIF protocols, with typical 2MP capability at up to 480 fps for high-frame-rate event capture. Additional network channels scale down as analog channels are deployed.
- Efficient Compression with H.265/H.264/MJPEG: Triple codec support allows operators to balance storage, bandwidth, and compatibility. H.265 reduces file sizes by up to 50% versus H.264 while maintaining quality. Maximum recording bandwidth of 128 Mbps and playback bandwidth of 32 Mbps support simultaneous multi-user viewing and forensic review.
- 24TB Pre-Installed Storage with Expansion: Comes equipped with 24TB raw capacity (four 6TB SATA drives). Supports up to 8 SATA HDD slots (maximum 48TB total) for long-term retention in high-throughput environments. SATA architecture enables field replacement and cost-effective capacity scaling without forklift upgrades.
- Dual Video Output and Multi-Monitor Support: 1x HDMI and 1x VGA with independent output control support simultaneous multi-monitor display. HDMI resolutions up to 4K (3840×2160), 2560×1440, and 1080p enable large-scale control center deployments. Spot monitor output with 1 dedicated channel allows real-time incident viewing independent of main display.
- Audio and Alarm Integration: 4-channel audio input and 1-channel audio output enable two-way communication and incident-triggered announcements. 16 alarm inputs and 4 relay outputs provide hardwired integration with door access, motion sensors, and silens. Coaxial control eliminates additional cabling for compatible analog cameras with PTZ or intelligent sensor support.
- P2P and Mobile Connectivity: QR code-based pairing enables rapid provisioning with Wisenet Viewer and Wisenet Mobile applications. Facilitates quick integration into existing Hanwha Vision ecosystems without manual IP configuration.
- Enterprise-Grade Recording Modes: Supports Normal, Dual Stream, Schedule (Continuous/Event), and Event modes (Pre/Post trigger) with Bookmark capability for rapid clip extraction. Event triggers include Alarm Input, Video Loss, Motion Detection, and Tampering for analog cameras, plus network camera events (Sensor, MD, Video Analytics, Defocus, Audio detection).
- NDAA and FCC Compliance: Meets U.S. federal procurement requirements for National Defense Authorization Act (NDAA) compliance and FCC electromagnetic/RF standards, enabling deployment in government, critical infrastructure, and security-sensitive environments.
- Multi-User Architecture: Supports up to 4 simultaneous local and remote users (1 local + 3 remote) with independent authentication. 18-channel simultaneous playback via local monitor and CMS; 4-channel via Wisenet Mobile; 1-channel via web browser for distributed viewing and investigation workflows.
Hanwha HRX-1635-24TB Integration and Compatibility
The HRX-1635-24TB integrates with Wisenet ecosystem components via SUNAPI and third-party VMS platforms through ONVIF Profile support. Network cameras connected via ONVIF protocols enable interoperability with Milestone Xprotect, Genetec Security Center, and other ONVIF-compliant management systems. Coaxial control support extends PTZ and OSD capability to compatible AHD/TVI/CVI cameras, reducing installation complexity in hybrid deployments. P2P provisioning via QR code enables rapid mobile app connectivity without manual network configuration. Maximum 4 simultaneous remote users allow distributed access for multi-site operators and security personnel across different geographic locations.
