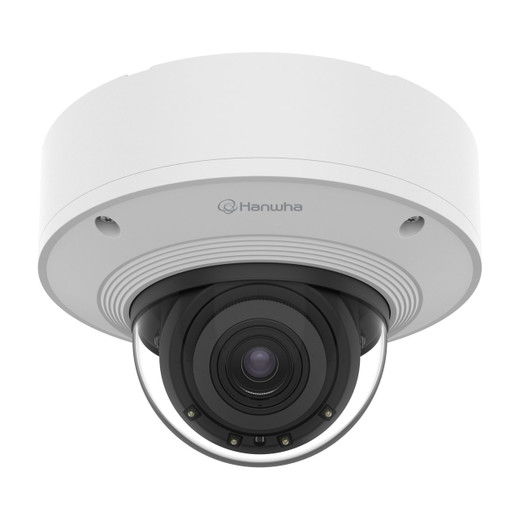

Hanwha PNV-A9081RLP/KAP 4K Vandal Dome Camera

Hanwha PNV-A9081RLP/KAP Overview

The Hanwha PNV-A9081RLP/KAP is a 4K infrared vandal dome camera purpose-built for license plate recognition (LPR) and vehicle analytics in outdoor enforcement and traffic monitoring applications. Engineered with Wisenet Road AI running directly on the camera, it delivers Make, Model, and Color (MMCR) recognition at the edge with no external server dependency. The IP66/IP67-rated, IK10+ impact-resistant dome housing withstands harsh vandal-prone environments while maintaining forensic image quality across day and night conditions.

Hanwha PNV-A9081RLP/KAP Key Features

• 4K UHD resolution (8 MP) with 4.5–10mm varifocal lens (2.2x zoom) optimized for LPR capture at variable distances without loss of plate clarity.
• Wisenet Road AI engine — edge-based LPR, MMCR (Make, Model, Color recognition), and vehicle classification with licensed multi-region/country support running directly on the camera; no additional server licensing required.
• Edge-based storage — 32GB microSD card capacity stores up to 10,000 LPR and vehicle images, reducing bandwidth and cloud dependency for high-volume deployments.
• Day/Night operation with IR LED illumination — 0.05 lux color sensitivity at F1.6, dropping to 0 lux in IR mode (IR LED on) for 24/7 plate recognition in zero-light conditions; Day/Night (ICR) switching.
• Wide Dynamic Range (120dB WDR) handles backlit scenarios, glare from headlights, and reflective license plates without overexposure or washout.
• Multi-codec compression (H.265, H.264, MJPEG) with WiseStream III bandwidth optimization for efficient storage and transmission without sacrificing image detail critical to plate legibility.
• IP66/IP67 rating — sealed against dust ingress and heavy water spray; IP6K9K rated for high-pressure washdown common in toll plazas, parking facilities, and vehicle inspection bays.
• IK10+ vandal rating — withstands heavy impact and deliberate damage attempts from tools and blunt force; suitable for unmanned enforcement zones.
• NEMA 4X stainless steel housing option — corrosion-resistant construction for coastal, marine, and chemically aggressive outdoor environments.
• PoE+ (802.3at) powered — single cable deployment simplifies installation and reduces infrastructure cost; camera draws sufficient power for IR LED operation and on-board processing.
• Licensed multi-region platform — supports LPR character set and MMCR matching for multiple countries and regions; no rigid firmware lock to single jurisdiction.

Hanwha PNV-A9081RLP/KAP Integration & Compatibility

The PNV-A9081RLP/KAP supports ONVIF-compliant VMS platforms and open architecture deployment. Wisenet Road AI application runs on the camera, with integration options for notifications, SD card backup, database export/import, and API-level event management documented in the application user guide. Mounting flexibility supports standard ceiling and wall installations; CAD files and BIM models are available for architectural integration planning.
