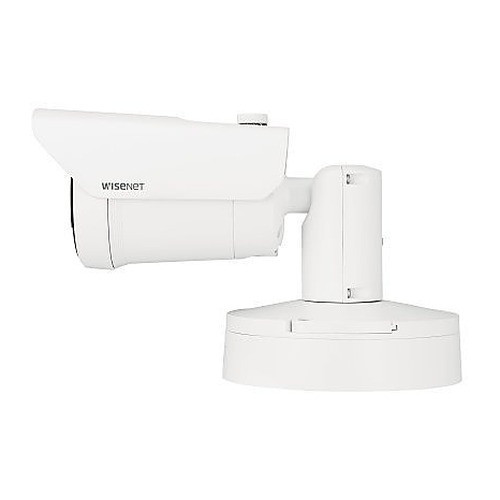

4K IR Bullet AI Camera

Hanwha XNO-9083R/KEX Overview

The Hanwha XNO-9083R/KEX is a 4K AI-enabled IR bullet camera engineered for demanding outdoor surveillance installations requiring extended detection range and robust weatherproofing. This fixed-position network camera delivers 8 MP (4K) resolution at 30 fps with integrated infrared illumination for 24/7 operation in complete darkness, making it suitable for perimeter security, parking facilities, and critical infrastructure monitoring where high-definition evidence and all-weather reliability are mandatory.

Hanwha XNO-9083R/KEX Key Features

• 4K Resolution (8 MP) at 30 fps — Captures full 4K video with AI-capable frame rate for motion detection, object tracking, and analytics processing on-camera without imposing heavy bandwidth demands.
• Extended IR Detection Range — Infrared LED illumination enables detection out to 579 ft (176.6 m) in wide-angle mode and 166.77 ft (50.8 m) in tele mode per EN62676-4 DORI standard, supporting forensic identification of subjects at significant distances in total darkness.
• Dual-Power Support — PoE+ (IEEE 802.3at, Class 4) with max 22.5W typical 17.9W consumption, or 12VDC auxiliary input with max 20W typical 15.6W — flexible for retrofit deployments and power-constrained network segments.
• Extreme Low-Light Sensitivity — 0.04 lux color imaging at F1.3 (1/30 sec, 30 IRE) and 0 lux full-color operation with IR LED engaged, supporting mixed day/night surveillance without mode switching artifacts.
• IP66/IP67 and IK10 Rating — Sealed aluminum housing with hard-coated dome withstands high-pressure washdown (IP67), dust ingress (IP66), and vandal strike impact (IK10) per NEMA TS2-2013 standards. Operates reliably at -50°C to +60°C (-58°F to +140°F) with startup capability above -30°C.
• Compact Bullet Mounting — Ø93.4×298.4 mm (3.68×11.75") form factor compatible with ¾" conduit and single/double gang boxes, 4" octagon, and square enclosures for flexible installation on poles, walls, and building soffits.
• Audio Support — Built-in microphone and audio input enable 2-way communication, event-triggered audio alerts, and audio forensics for integrated physical security applications.
• EMC and Safety Certifications — Meets FCC Class A, CE/UKCA, ICES-3(A), UL 62368-1, and international electromagnetic compatibility standards; IEC 62471 photobiological safety rating for eye-safe IR wavelengths.
• Rugged Environmental Rating — NEMA Type 4X corrosion resistance with maximum operating surface temperature of +74°C (165°F) under peak solar load; 0–100% RH condensing humidity tolerance supports coastal, industrial, and high-humidity deployments.
• 2.2 lb Lightweight Aluminum Construction — 2,200g (4.85 lb) mass minimizes structural load on pole-mount and wall-bracket hardware; hard-coated anodized aluminum dome resists salt spray and UV degradation.

Hanwha XNO-9083R/KEX Integration & Compatibility

The XNO-9083R/KEX supports ONVIF Profile S/T/G for seamless integration with Milestone VMS, AXIS Camera Station, Hanwha SmartLogger NVR systems, and third-party open-standards recording platforms. Gigabit Ethernet (1000Base-T) connectivity enables high-bandwidth 4K stream delivery with H.264/H.265 codec support and cloud failover via Hanwha Vision CloudConnector. Firmware version R68 (as of November 2025) maintains compatibility with legacy XND-8083RVX and XNV-8083R installations for mixed-generation deployments.
